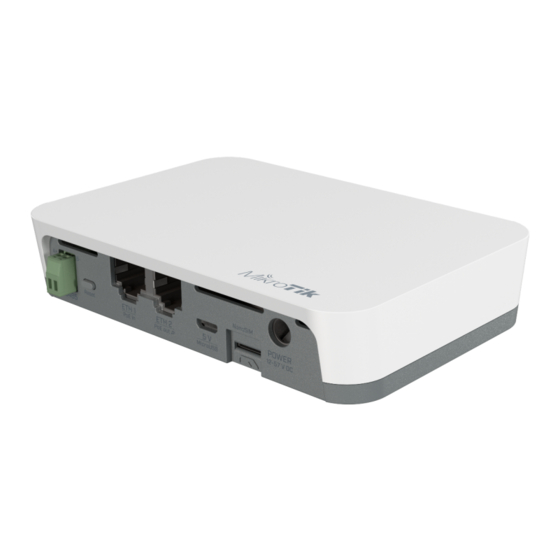

MikroTik RB924i-2nD-BT5&BG77 Manual

RB924i-2nD-BT5&BG77
KNOT RB924i-2nD-BT5&BG77
Connecting
Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address;
Connect your ISP cable to the first Ethernet port;
Connect the device to the power source;
Open network connections on your computer and search for MikroTik wireless network - connect to it;
The configuration has to be done through the wireless network using a web browser or mobile app. Alternatively, you can use a WinBox
configuration tool https://mt.lv/winbox
Open https://192.168.88.1
Click the Check for updates button and update your RouterOS software to the latest version, must have an active Internet connection;
In the Quick Set, WISP AP menu choose your country and apply country regulation settings;
Set the antenna gain, depending on the antenna used;
Set up your wireless network password;
Set up your router password.
Mounting
1. The device can be mounted using provided DIN rail mount set. Designed to fit standard 35 mm x 7.5 mm DIN rails. Attach it with two provided
screws to the device and attach the device to the DIN rail. The DIN rail is not provided in the package.
2. Alternatively, it is possible to attach the device to a wall, using the provided screw holes on the back of the unit. The device should be mounted in
a way that the cable openings are pointing downward as shown in the picture.
Warning! This equipment should be installed and operated with a minimum distance of 20 cm between the device and your body. The operation
of this equipment in the residential environment could cause radio interference.
Mounting and configuration of this device should be done by a qualified person.
Powering
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-57 V DC.
microUSB port accepts 5 V powering.
;
in your web browser to start configuration, user name: admin and there is no password by default;
