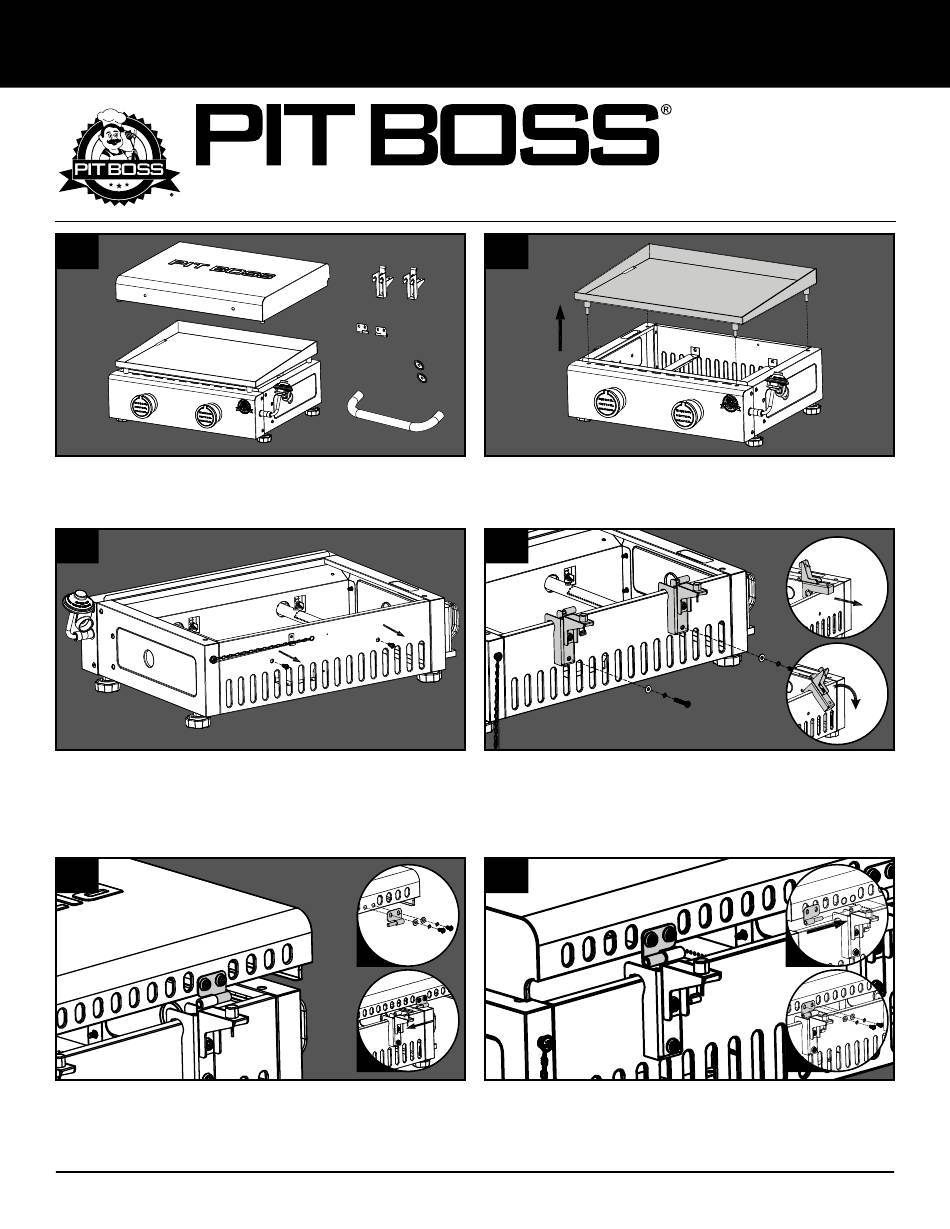

PB2BGT1 GRIDDLE LID
1
1
*GRIDDLE NOT INCLUDED
Included Parts: (1) Lid, (2) Hinges x2 , (3) Left Top Hinge,
(4) Right Top Hinge, (5) Lid Handle Bezel x2, (6) Lid
Handle
3
Remove the two screws from the back of the firebox
that holds the burners in place.
5
First, install the Left Top Hinge with the pre-installed
screws, locking washers, and washers. Slide the hinge
pin into the lower hinge on the firebox base.
©2022 DANSONS
602221110UMV
I N S T R U C T I O N G U I D E
2
3
4
5
6
Remove the griddle cooking surface and place aside.
Place the hinge on the back edge of the firebox
at a 90° angle and rotate down to line it up to the
screw holes from the burners. Screw the hinges and
burners in place with the screws, locking washers, and
washers.
1
2
First, slide the Right Top Hinge pin into the lower
hinge on the firebox base. Then secure the Right Top
Hinge with the pre-installed screws, locking washers,
and washers.
PITBOSS-GRILLS.COM
2
4
6
USA: (480) 923-9630
CANADA (TOLL FREE): 1-877-942-2246
PART: 41052
1
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB2BGT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pit Boss PB2BGT1

  • Page 1 I N S T R U C T I O N G U I D E PART: 41052 PB2BGT1 GRIDDLE LID *GRIDDLE NOT INCLUDED Remove the griddle cooking surface and place aside. Included Parts: (1) Lid, (2) Hinges x2 , (3) Left Top Hinge,...
  • Page 2 Remove the pre-installed screws from the handle. Place the griddle cooking surface on top of the Place the lid handle bezels between the handle and firebox. lid. Secure them into place with the screws. The Griddle Lid is fully installed. USA/ÉTATS-UNIS: (480) 923-9630 ©2022 DANSONS PITBOSS-GRILLS.COM...
