MODEL: PB200GS
PART: 10558

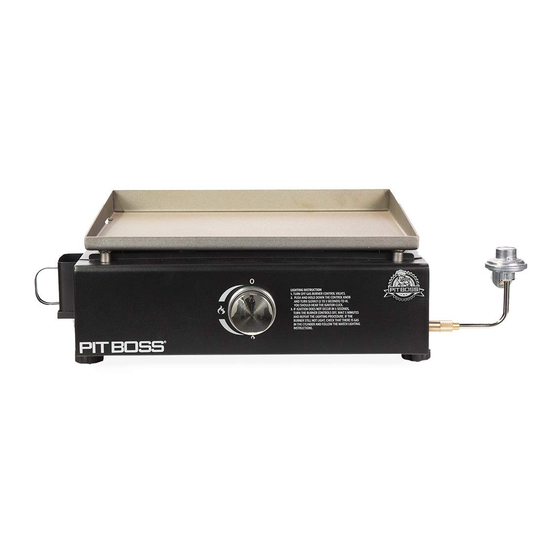

200GS
TABLETOP
GAS GRIDDLE
IMPORTANT, READ CAREFULLY,
RETAIN FOR FUTURE REFERENCE.
MANUAL MUST BE READ
BEFORE OPERATING!
300522
FOR OUTDOOR AND HOUSEHOLD USE ONLY.
NOT FOR COMMERCIAL USE.
ASSEMBLY AND OPERATION
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS
BEFORE ASSEMBLING AND USING THE APPLIANCE. KEEP THIS MANUAL FOR FUTURE REFERENCE.
WARNING: Please read the entire manual before installation and use of this gas appliance. Failure
to follow these instructions could result in property damage, bodily injury or even death. Contact
local building or fire officials about restrictions and installation inspection requirements in your area.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200GS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pit Boss 200GS

Summary of Contents for Pit Boss 200GS

  • Page 1 MODEL: PB200GS PART: 10558 200GS TABLETOP GAS GRIDDLE IMPORTANT, READ CAREFULLY, RETAIN FOR FUTURE REFERENCE. MANUAL MUST BE READ BEFORE OPERATING! 300522 FOR OUTDOOR AND HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE. ASSEMBLY AND OPERATION THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.

  • Page 2: Safety Information

    SAFETY INFORMATION MAJOR CAUSES OF APPLIANCE FIRES ARE A RESULT OF POOR MAINTENANCE AND A FAILURE TO MAINTAIN REQUIRED CLEARANCE TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE USED ONLY IN ACCORDANCE TO THE FOLLOWING INSTRUCTIONS. Please read and understand this entire manual before attempting to assemble, operate or install the product.
  • Page 3 A minimum clearance of 610 mm (24 inches) from combustible constructions to the sides of the griddle, and 610 mm (24 inches) from the back of the griddle to combustible constructions must be maintained. Do not use this appliance indoors or in an enclosed, unventilated area. This appliance must not be placed under overhead combustible ceiling or overhang.
  • Page 4 8. Always check for gas leaks when you connect and disconnect the regulator to the gas cylinder, especially after a period of storage (for example, over winter). Check all connections for leaks with a soapy water solution and brush. Never use an open flame to check for leaks. 9.
  • Page 5 SAFETY LISTING In accordance with the procedures and specifications listed in the ANS Z21.89-2017 • CSA 1.18-2017 Outdoor Cooking Specialty Gas Appliance. ” Pit Boss® Grills cooking appliances have been independently tested and listed by CSA (an accredited testing laboratory) to CSA standards.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Safety Information ......2 Care & Maintenance Checking The Gas Level ......15 Parts & Specs ........7 Cleaning Frequency ......15 Assembly Preparation ......8 Tips & Techniques ......17 Assembly Instructions Troubleshooting ......18 Installing The Fire Box Feet ....8 Replacement Parts ......

  • Page 7: Parts & Specs

    PARTS & SPECS Part# Description Hot Plate (x1) Fire Box (x1) Grease Cup (x1) Grease Cup Holder (x1) Regulator (x1) Fire Box Feet (x4) NOTE: Due to ongoing product development, parts are subject to change without notice. Contact Customer Service if parts are missing when assembling the unit.

  • Page 8: Assembly Preparation

    If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Grills Customer Service for parts: Monday through Sunday, 4am - 8pm PST (EN/FR/ES).

  • Page 9: Mounting The Grease Cup

    2. MOUNTING THE GREASE CUP Parts Required: Grease Cup Holder (#4) Grease Cup (#3) Installation: • First, remove the pre-installed two bolts on the left side of the Fire Box. • Next, fasten the Grease Cup Holder to the left side of the Fire Box using the two bolts previously removed.

  • Page 10: Connecting To A Gas Supply

    CONNECTING TO A GAS SUPPLY SAFE GRILLING ENVIRONMENT This gas appliance is designed and certified for outdoor use only. Do not operate the griddle inside a building, garage, recreation vehicle, boat, screened porch or any enclosed area. Keep the griddle away from windy areas but keep the griddle in a well-ventilated area.

  • Page 11: Installing A Gas Cylinder

    INSTALLING A GAS CYLINDER Make sure burner control knob is turned OFF by pushing it in and turning it clockwise to the OFF position. While holding carrying handle closest to propane cylinder with one hand, push propane cylinder into regulator and turn clockwise until tight.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS PREPARATION FOR USE – LEAK TESTING A leak test is used to determine the integrity of a seal. Before using your gas griddle, perform a leak test on the connection between the regulator and the gas cylinder to reduce the risk of serious bodily injury or death from fire or explosion.

  • Page 13: First Use - Griddle Burn-Off

    FIRST USE – GRIDDLE BURN-OFF Before using your griddle for the first time with food, it is important to complete a burn-off. Start the griddle and operate for a minimum of 15 minutes on HIGH to burn- off the unit. This will “heat clean” the internal components, dissipate odors and rid it of any foreign matter.

  • Page 14: Manual Lighting Procedure

    MANUAL LIGHTING PROCEDURE Verify that the control knob is turned to the OFF position. Connect LP gas cylinder as per instructions. Turn LP gas tank valve to OPEN. Note the indicator marker on the control knob. Push in the regulator knob and turn 90 degrees (or 1/4) counter-clockwise to HIGH.

  • Page 15: Care & Maintenance

    CLEANING FREQUENCY Any Pit Boss unit will give you many years of flavorful service with minimum cleaning. Follow these cleaning and maintenance tips to service your griddle: 1. BURNER COMPONENTS •...
  • Page 16 • Remove any food or build-up from the cooking surface. Best practice is to do this while it is still warm from a previous cook. Grease fires are caused by too much fallen debris on the cooking components of the griddle. Clean the inside of your griddle on a consistent basis.

  • Page 17: Tips & Techniques

    TIPS & TECHNIQUES Follow these helpful tips and techniques, passed on from Pit Boss owners, our staff, and customers just like you, to become more familiar with your grill: 1. FOOD SAFETY • Use different platters and utensils for the cooked meat than the ones you used to prepare or transport the raw meat out to the grill.

  • Page 18: Troubleshooting

    For FAQ, please visit www.pitboss-grills.com . You may also contact your local Pit Boss authorized dealer or contact Customer Service for assistance. WARNING: Always disconnect the gas cylinder prior to opening the grill for any inspection, cleaning, maintenance or service work.

  • Page 19: Replacement Parts

    Burner Poor Air Flow Check burner tube and burner ports for spider webs or other obstructions. Follow Care and Maintenance Flames Are Burner Yellow Or instructions to clean the burner tube. Obstruction Orange Empty grease cup and re-install. Follow Care and Grease Cup Is Maintenance instructions.

  • Page 20: Warranty

    WARRANTY CONDITIONS OF WARRANTY All gas griddles by Pit Boss® Grills, manufactured by Dansons, carry a limited warranty from the date of sale by the original owner. The warranty coverage begins on the original date of purchase and proof of date of purchase, or copy of original bill of sale, is required to validate the warranty.

  • Page 21: Ordering Replacement Parts

    This limited warranty gives you specific legal rights and you may have other rights, which vary from state to state. ORDERING REPLACEMENT PARTS To order replacement parts, please contact your local Pit Boss® dealer or visit our online store at: www.pitboss-grills.com CUSTOMER SERVICE If you have any questions or problems, contact Customer Service, Monday through Sunday, 4am - 8pm PST (EN/FR/ES).

  • Page 22: Accessories Sold Separately

    ACCESSORIES SOLD SEPARATELY Available for purchase separately. Accessories not available and supplied by all authorized Pit Boss dealers. ITEM DESCRIPTION BARBECUE FLOOR MAT Easy clean, UV protected. Protection for your deck. 132cm x 86cm / 52” x 34” GRILLING APRON Adjustable apron with double front pockets for grilling tools.
  • Page 24 IMPORTANT DO NOT RETURN PRODUCT TO STORE For all questions, comments, or inquiries, please contact Dansons directly. Our Customer Service department is available Monday through Sunday, 4am - 8pm PST (EN/FR/ES). TOLL FREE: 1-877-303-3134 TOLL FREE FAX: 1-877-303-3135 service@pitboss-grills.com WARNING: Combustion of propane gas can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer, and carbon...
