Emergency opening of door/gate

Tech Lift M4 is equipped with an electric lock for the gate that prevents involuntary departure
from the platform, the lock can be opened manually in an emergency.

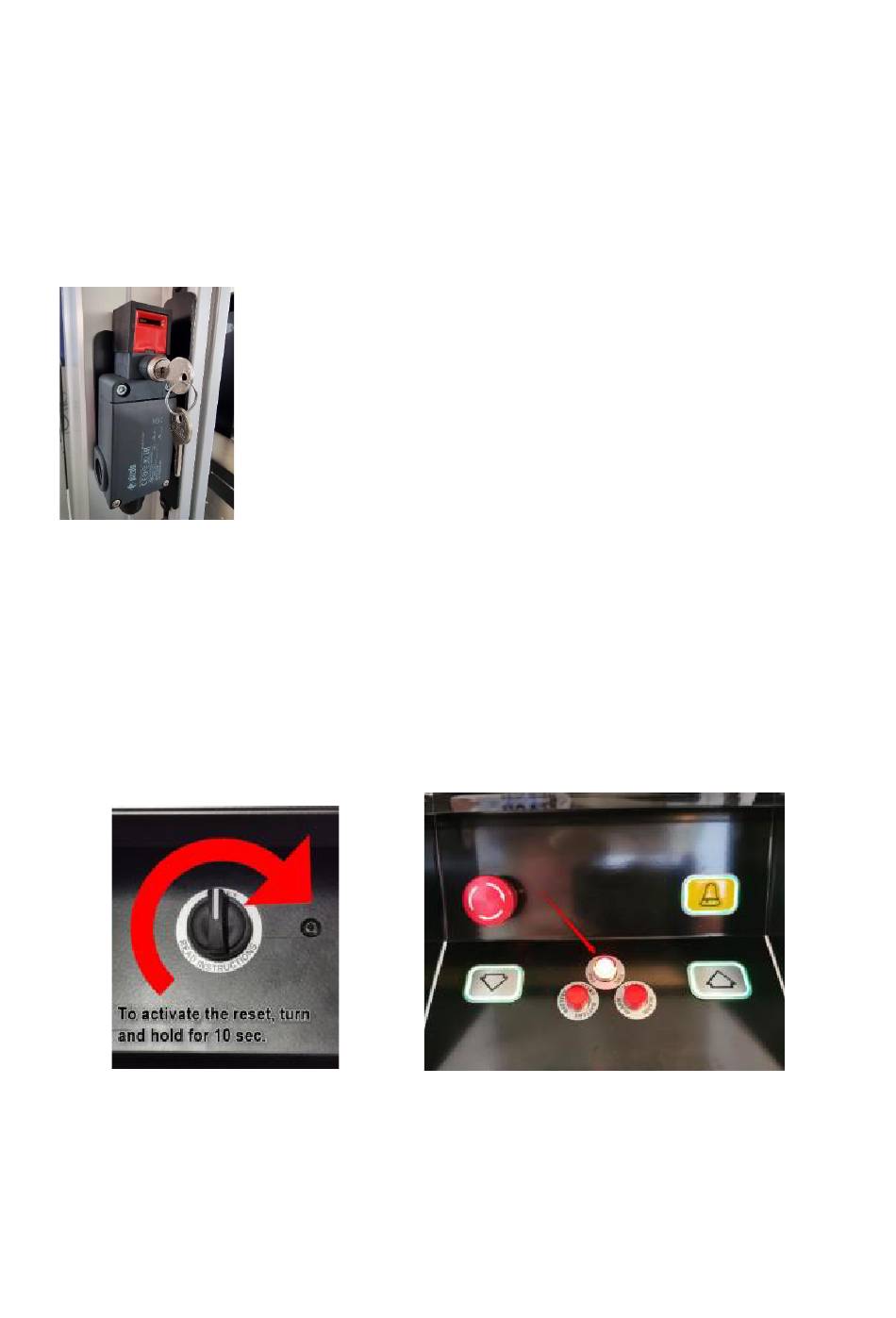

Use the supplied key (see picture) and turn the key a quarter of a turn clockwise, the
door/gate can now be opened.
NOTE: Turn the key back after evacuation.
Recovery
To activate the reset, turn the steering wheel clockwise (see picture 1) and keep it turned for
about 10 seconds, the lift starts and goes down slowly (lamp fault) comes on NOTE! With this
downward movement, anti-pinch protection is not activated, (be extra careful and make
sure there are no obstacles under the platform). Hold the knob during the entire lifting
movement and release it only when the light (fault see picture 2) has gone out and the lift is
at the bottom.
Bild 1 Bild 2
