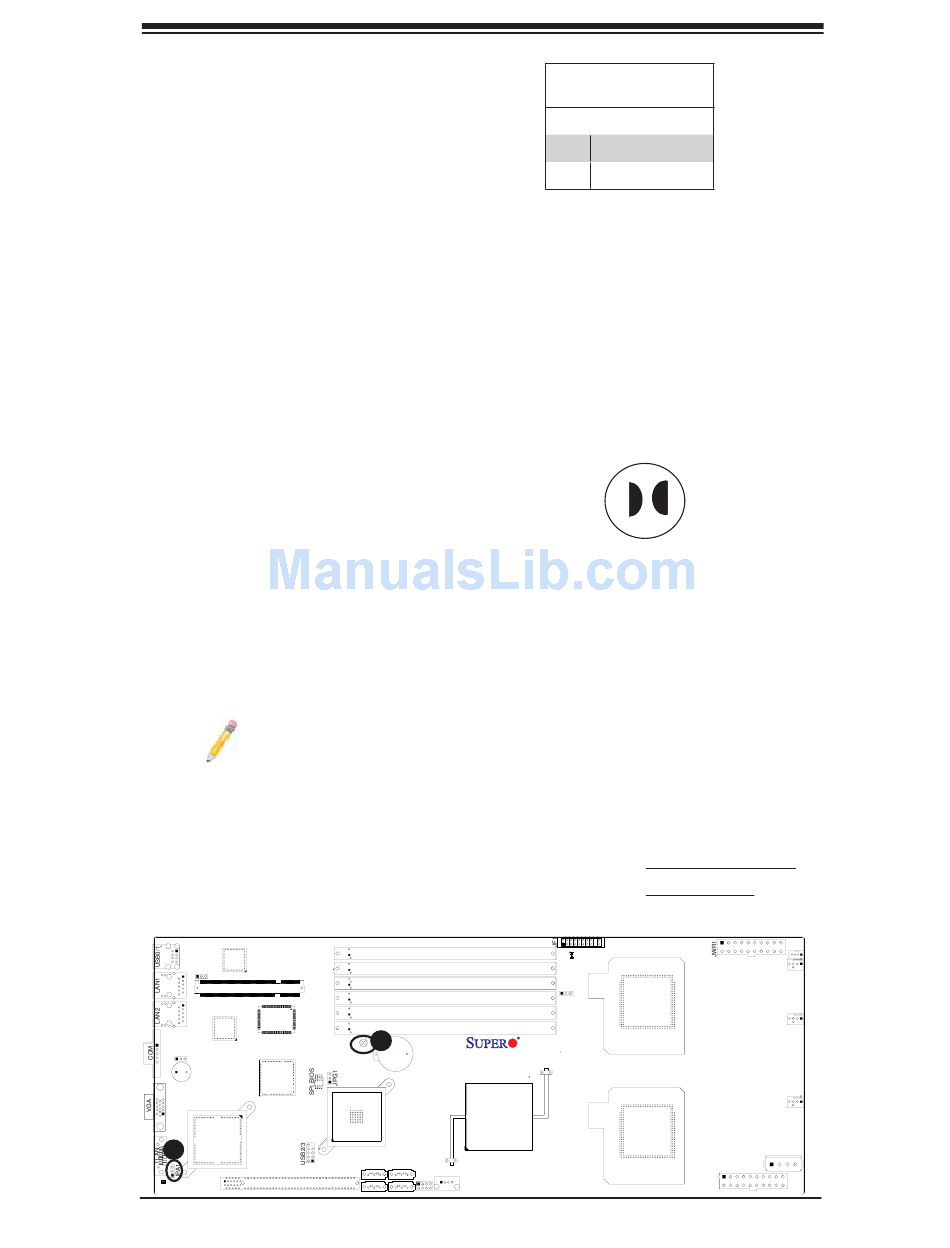

10Gb_LAN Enable/Disable

(For X7DCT-10G Only)
JPA1 enables or disables the 10
Gigabit_LAN Port on the mother-
board. See the table on the right for
jumper settings. The default setting is
Enabled.

CMOS Clear

JBT1 is used to clear CMOS. Instead
of pins, this "jumper" consists of con-
tact pads to prevent the accidental
clearing of CMOS. To clear CMOS,
use a metal object such as a small
screwdriver to touch both pads at the
same time to short the connection. Al-
ways remove the AC power cord from
the system before clearing CMOS.
Note: For an ATX power
supply, you must completely
shut down the system, re-
move the AC power cord
and then short JBT1 to clear
CMOS.
Intel
82573V
LAN
CTRL
JPL1
SIMSO
Super IO
Intel
82573L
LAN
CTRL
JPL2
ATI
ES1000
SPKR
VGA CTRL
Intel
82598EB
A
10Gb LAN CTRL
PCI-Exp. x16
LED2
DIMM1B
DIMM1A
DIMM2B
DIMM2A
DIMM3B
DIMM3A
B
JBT1
Battery
Intel
Intel
ICH9R
5100
South Bridge
North Bridge
SATA3 SATA1
USB4
SGPIO
SATA2 SATA0
2-21
Chapter 2: Installation
10Gb_LAN Enable
Jumper Settings
Pin# Defi nition
1-2 Enabled (default)
2-3 Disabled
A. 10Gb_LAN Enable
B. CMOS Clear
LED3
JWD1
CPU1
X7DCT-10G
CPU2
I2CPWR
FAN1
FAN2
FAN3
PWR_BKPlane
JWR2
