hager S157-22X Installation Manual

Recommendations
The user must not attempt to access the detector's internal parts, except areas described in this manual. If the user does access these parts, the product guarantee
will be considered null and void and Hager shall not be held responsible for any problems. Touching the detector's internal parts and/or electronic components can
damage the product. Furthermore, the detector is designed in such a way that these parts and components do not need to be accessed for operation or
maintenance purposes.
1. Introduction
1.1. How the detector works
The heat detector is designed to protect the private areas of
apartment buildings, residential properties and mobile
homes.
Heat detection is activated when:
• the rate of elevation of the ambient temperature is
abnormal,
• or the ambient temperature reaches a value between 54
and 70 ° C.
It can be:
• used alone,
• included in a hager alarm system with TwinBand
panel,
• interconnected in a wireless network with 40 detectors
maximum.
Subject to the smoke detector being properly serviced on a
regular basis, it should be replaced according to the
replacement date indicated on the back of the product or
when its battery runs out.
1.2. Description
Fixing base
Test button
S157-22X
installation manual

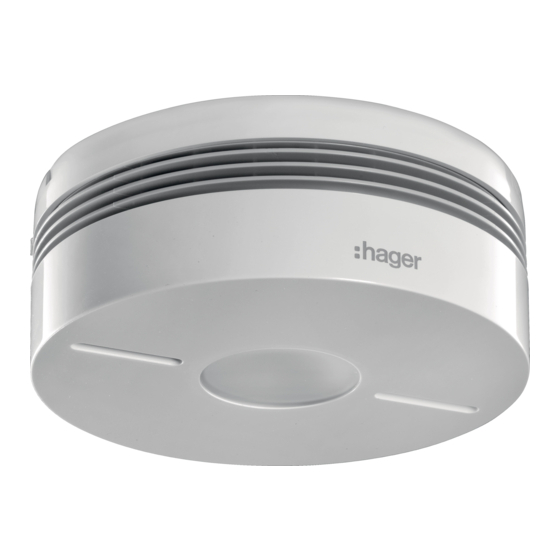

Heat detector, interconnectable radio,
lithium battery 10 years
When something is detected, this is indicated as follows:
Detector activated
Rapid flashing
Emergency halo lighting
Triggering of continuous
sounding (85 dB (A) at 3 m)
The detector having detected something sounds until the
® control
smoke have disappeared.
The interconnected detectors trigger in less than one minute
and sound until the smoke detected by the activated
detector have disappeared and for a maximum period of
15 minutes.
Connected to a hager alarm system, it causes in addition:
• the triggering of the control panel and radio sirens in fire
modulation for 5 min,
• triggering the phone dialller,
• triggering wired sirens.
LED alignment arrow (gives the alignment
axis of the LEDs once the detector has
been locked on to its base)
White LED
Red LED (alarm and programming)
Yellow LED
Other interconnected
Emergency halo lighting
Triggering of intermittent
sounding (85 dB (A) at 3 m)
(emergency halo lighting)
(operation)
detectors
-
