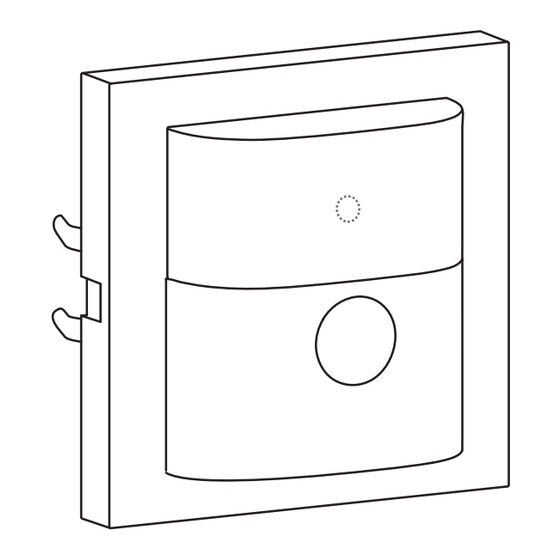

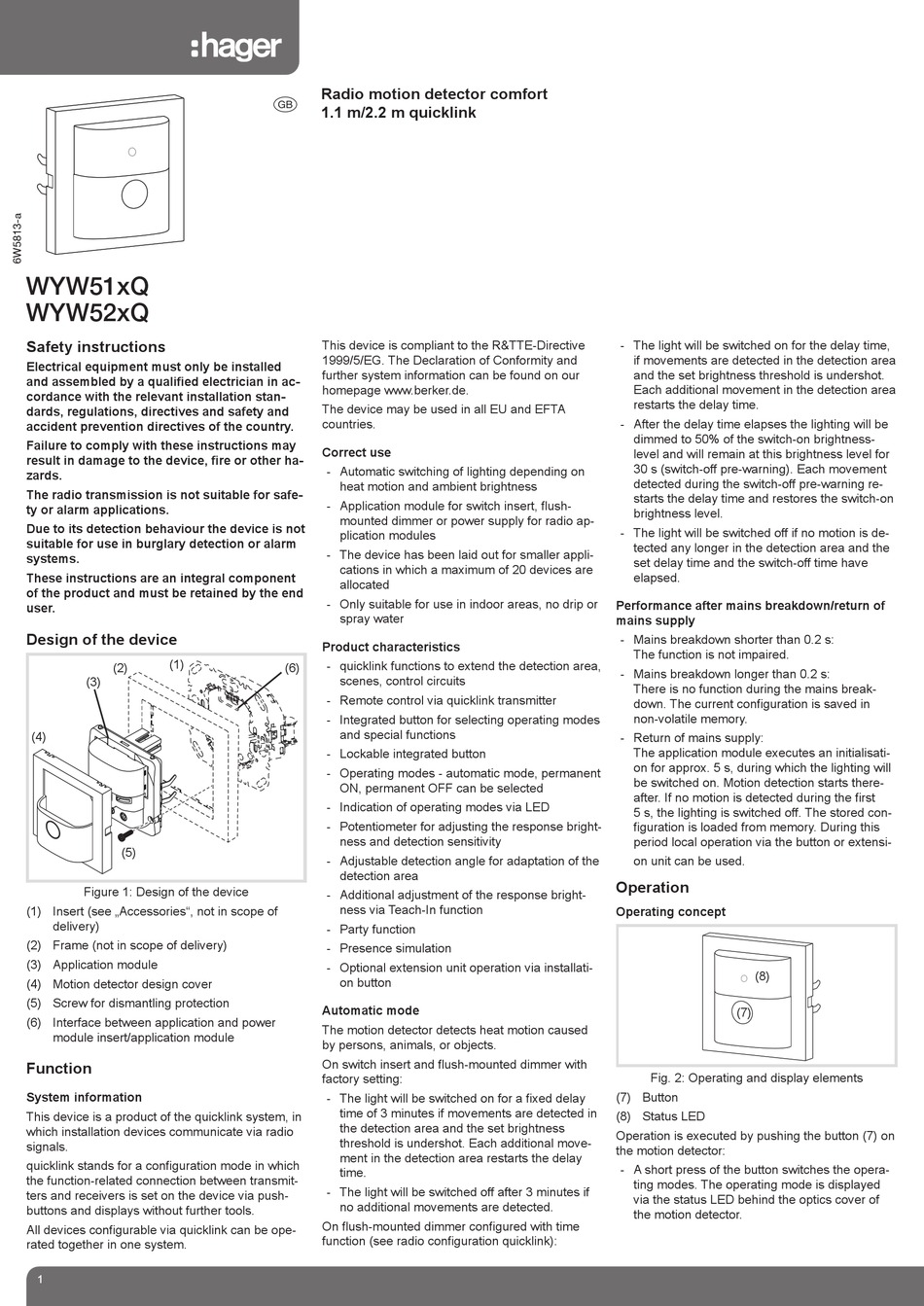

hager WYW51 Q Series Quick Start Manual

WYW51xQ
WYW52xQ
Safety instructions
Electrical equipment must only be installed
and assembled by a qualified electrician in ac-
cordance with the relevant installation stan-
dards, regulations, directives and safety and
accident prevention directives of the country.
Failure to comply with these instructions may
result in damage to the device, fire or other ha-
zards.
The radio transmission is not suitable for safe-
ty or alarm applications.
Due to its detection behaviour the device is not
suitable for use in burglary detection or alarm
systems.
These instructions are an integral component
of the product and must be retained by the end
user.
Design of the device
(1)
(2)
(3)
(4)
(5)
Figure 1: Design of the device
(1) Insert (see „Accessories", not in scope of
delivery)
(2) Frame (not in scope of delivery)
(3) Application module
(4) Motion detector design cover
(5) Screw for dismantling protection
(6) Interface between application and power
module insert/application module
Function
System information
This device is a product of the quicklink system, in
which installation devices communicate via radio
signals.
quicklink stands for a configuration mode in which
the function-related connection between transmit-
ters and receivers is set on the device via push-
buttons and displays without further tools.
All devices configurable via quicklink can be ope-
rated together in one system.
1 1
Radio motion detector comfort
z
1.1 m/2.2 m quicklink
This device is compliant to the R&TTE-Directive
1999/5/EG. The Declaration of Conformity and
further system information can be found on our
homepage www.berker.de.
The device may be used in all EU and EFTA
countries.
Correct use
- Automatic switching of lighting depending on
heat motion and ambient brightness
- Application module for switch insert, flush-
mounted dimmer or power supply for radio ap-
plication modules
- The device has been laid out for smaller appli-
cations in which a maximum of 20 devices are
allocated
- Only suitable for use in indoor areas, no drip or
spray water
Product characteristics
- quicklink functions to extend the detection area,
(6)
scenes, control circuits
- Remote control via quicklink transmitter
- Integrated button for selecting operating modes
and special functions
- Lockable integrated button
- Operating modes - automatic mode, permanent
ON, permanent OFF can be selected
- Indication of operating modes via LED
- Potentiometer for adjusting the response bright-
ness and detection sensitivity
- Adjustable detection angle for adaptation of the
detection area
- Additional adjustment of the response bright-
ness via Teach-In function
- Party function
- Presence simulation
- Optional extension unit operation via installati-
on button
Automatic mode
The motion detector detects heat motion caused
by persons, animals, or objects.
On switch insert and flush-mounted dimmer with
factory setting:
- The light will be switched on for a fixed delay
time of 3 minutes if movements are detected in
the detection area and the set brightness
threshold is undershot. Each additional move-
ment in the detection area restarts the delay
time.
- The light will be switched off after 3 minutes if
no additional movements are detected.
On flush-mounted dimmer configured with time
function (see radio configuration quicklink):
- The light will be switched on for the delay time,
if movements are detected in the detection area
and the set brightness threshold is undershot.
Each additional movement in the detection area
restarts the delay time.
- After the delay time elapses the lighting will be
dimmed to 50% of the switch-on brightness-
level and will remain at this brightness level for
30 s (switch-off pre-warning). Each movement
detected during the switch-off pre-warning re-
starts the delay time and restores the switch-on
brightness level.
- The light will be switched off if no motion is de-
tected any longer in the detection area and the
set delay time and the switch-off time have
elapsed.
Performance after mains breakdown/return of
mains supply
- Mains breakdown shorter than 0.2 s:
The function is not impaired.
- Mains breakdown longer than 0.2 s:
There is no function during the mains break-
down. The current configuration is saved in
non-volatile memory.
- Return of mains supply:
The application module executes an initialisati-
on for approx. 5 s, during which the lighting will
be switched on. Motion detection starts there-
after. If no motion is detected during the first
5 s, the lighting is switched off. The stored con-
figuration is loaded from memory. During this
period local operation via the button or extensi-
on unit can be used.
Operation
Operating concept
(8)
(7)
Fig. 2: Operating and display elements
(7) Button
(8) Status LED
Operation is executed by pushing the button (7) on
the motion detector:
- A short press of the button switches the opera-
ting modes. The operating mode is displayed
via the status LED behind the optics cover of
the motion detector.
