EE84.
Description
Plate for wall fi xing
Detection zone
2,5 m
Ø 12 m
The optimal height of installation is 2.5 m.
The detection fi eld must remain free.
Installation
1

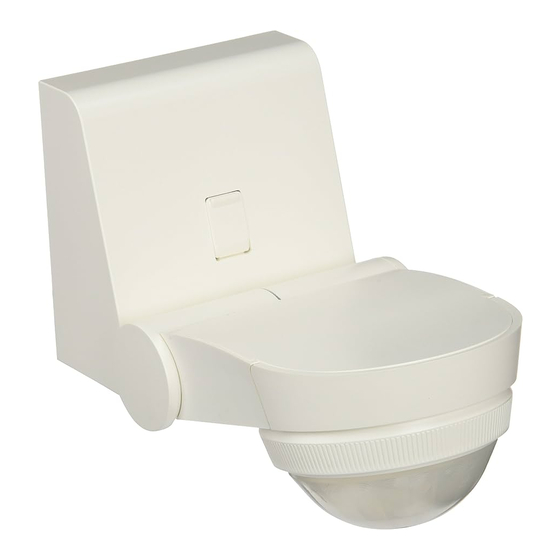

Motion detector comfort 360°
i
z
Connection by PIN system
(4 plug-in pins)
Vertical adjustment
+ 90°/- 30°
6 m
3 m
Setting potentiometers
Detection head
= 360°
DETECTOR 360°
EE840
White
EE841
Charcoal
ACCESSORY FOR
CORNER FIXING
EE855
White
EE856
Charcoal
Caution!
This device is to be installed only by a professional
electrician fi tter according to local applicable
installation standards.
Do not plug in or unplug this product when it is live.
Setting
Fixed time
Luminosity Sensitivity
(length of time
of lighting)
lux
5 min
5 s
auto
test
15 min
Accessories for corner fi xing
lux
5 min
5 s
auto
test
15 min
lux
ech40%
auto
test
Ligthing loads
lux
5 min
5 s
Incandescent, halogen 23
auto
test
15 min
Halogen ELV (12 or 24 V)
via ferromagnetic or elect
transformer
Compactfluo
Parallel compensated fluo
Electronic ballast
(modifi cation
of the range)
-
+
-
+
-
+
6E7574.C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hager EE84 Series
Summary of Contents for hager EE84 Series
- Page 1 DETECTOR 360° EE840 White EE841 Charcoal Motion detector comfort 360° ACCESSORY FOR CORNER FIXING EE855 White EE856 Charcoal Caution! This device is to be installed only by a professional electrician fi tter according to local applicable installation standards. Do not plug in or unplug this product when it is live. EE84.
- Page 2 Product presentation Montage and operating principles Surface-mounting or ceiling-mounted : - fix the wall plate using the screws provided This detector allows automatic control of a - connect the wall plate terminal block (see cabling plans in annex) light source for a defined length of time when a - fully insert the detector on the wall plate movement is detected in the surveillance zone.
- Page 3 360°-BEWEGINGSMELDER EE840 EE841 Zwart Bewegingsmelders comfort 360° TOEBEHOREN VOOR HOEKMONTAGE EE855 EE856 Zwart Opgelet! Het toestel mag alleen door een elektroinstallateur worden geïnstalleerd volgens de installatienormen die van toepassing zijn in het land. De contactpennen van het product niet vast- of EE84.
- Page 4 2 of 24 V) via 1500 VA tot “auto test”. tronische transformator 10 x 20 W Gevoeligheid Hiermee kan het bereik worden aanpassen. ingesteld om storingen te e TL-lampen 400 W / C=45 µf voorkomen. elaar 580 W www.hager.com Hager 11.13 OCOM 116717 6E7574.C...
