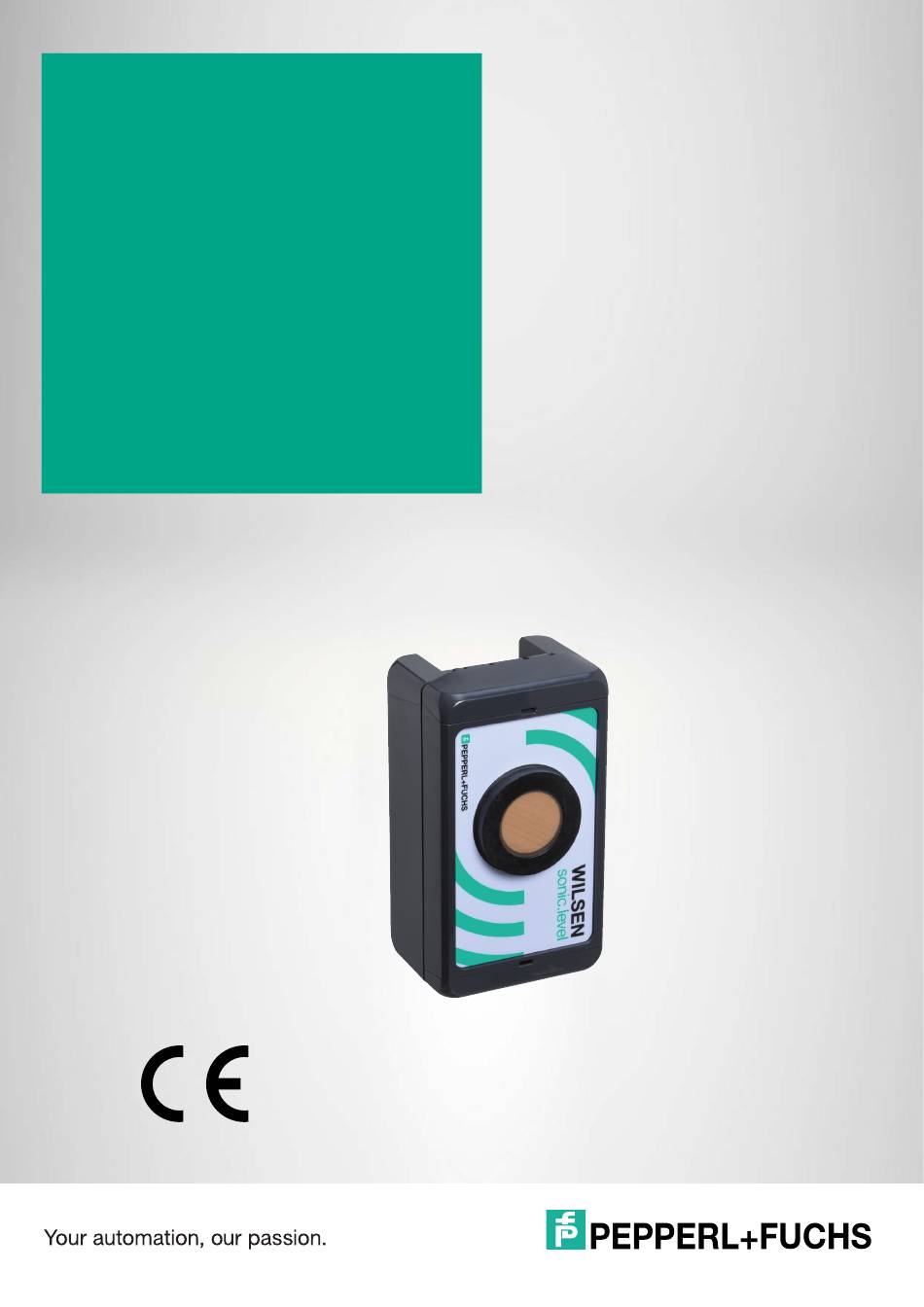

- Page 1 Manual WILSEN.sonic.level WS-UC*-F406-B41* Manual...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Manual WILSEN.sonic.level WS-UC*-F406-B41* Contents Introduction........................ 4 Content of this Document ................4 Target Group, Personnel ................4 Symbols Used ....................4 Intended Use ....................5 General Safety Notice..................6 Declaration of Conformity................6 System Description ....................8 Integration into a LoRa Network ................9 Establishing a Connection to the Device .............. -
Page 4: Introduction
Manual WILSEN.sonic.level WS-UC*-F406-B41* Introduction Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •... -
Page 5: Symbols Used
Manual WILSEN.sonic.level WS-UC*-F406-B41* Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. -
Page 6: Intended Use

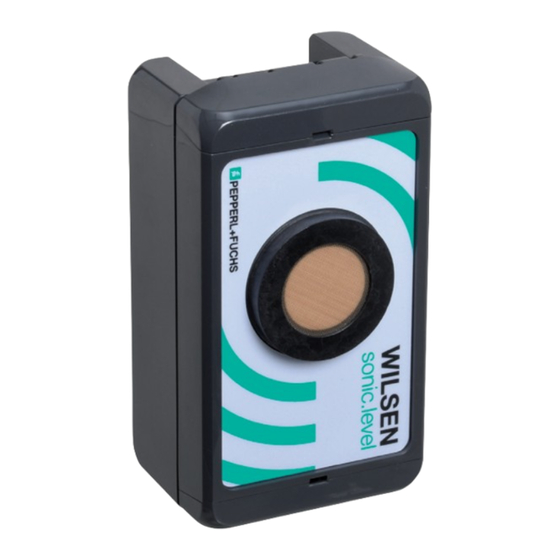

Intended Use The WILSEN.sonic.level wireless ultrasonic sensor is used to remotely monitor fill levels in con- tainers, tanks, and silos. It is part of Pepperl+Fuchs' WILSEN (wireless sensor) IoT sensor product family, which wirelessly transmits data directly to the internet. -
Page 7: Declaration Of Conformity
This product was developed and manufactured in line with the applicable European standards and directives. Note A declaration of conformity can be requested from the manufacturer. The product manufacturer, Pepperl+Fuchs Group, 68307 Mannheim, Germany, has a certified quality assurance system that conforms to ISO 9001. ISO9001... -
Page 8: System Description
System Description The WILSEN.sonic.level wireless ultrasonic sensor is used to remotely monitor fill levels in con- tainers, tanks, and silos. It is part of Pepperl+Fuchs' WILSEN (wireless sensor) IoT sensor product family, which wirelessly transmits data directly to the internet. -
Page 9: Integration Into A Lora Network
Services usually make their registration procedure available in dialog form. Familiarize yourself with the details of your network server. Note In a separate document, Pepperl+Fuchs describes the procedure for registering a WILSEN.sonic.level using the example of registering with "The Things Network (TTN)" community network. - Page 10 If you want to use the Application EUI / Join EUI provided by the sensor unit, you will find it in the WILSEN app in the "LoRaWAN Configuration" menu. Alternatively, it is also included in the individual serial number credential list in csv format provided by Pepperl+Fuchs on request. Encryption of Telemetry Data With LoRaWAN, sensor data is always transmitted from the sensor to the application server in an encrypted format.
- Page 11 Manual WILSEN.sonic.level WS-UC*-F406-B41* Integration into a LoRa Network Note You can download the payload description and the payload decoder for your WILSEN.sonic.level online from the product detail page for the respective WS-UC*-F406-B41* wireless ultrasonic sensor at www.pepperl-fuchs.com. See the Documents and Software areas.
-
Page 12: Establishing A Connection To The Device
• Mobile device has an account set up on Google Play or the Apple App Store Go to the App Store on your mobile device and search for the Pepperl+Fuchs "WILSEN" app or scan the following QR code. Figure 4.1 WILSEN in Google Play Figure 4.2... - Page 13 Manual WILSEN.sonic.level WS-UC*-F406-B41* Establishing a Connection to the Device The WILSEN app Device Discovery will appear. Available devices within detection range will be displayed after a short time. Figure 4.4 By entering the desired device name or part of it, you can reduce the number of devices displayed in the list in accordance with the search.
- Page 14 Manual WILSEN.sonic.level WS-UC*-F406-B41* Establishing a Connection to the Device Enter the default password 00000000 within 30 seconds when commissioning a new device or enter the valid password for a device that is already known and confirm by pressing OK. Figure 4.5 The app will switch to the Sensor Status &...
- Page 15 Manual WILSEN.sonic.level WS-UC*-F406-B41* Establishing a Connection to the Device Caution! High Power Consumption during Bluetooth Connection To ensure the longest possible battery life, keep the connection time between the mobile device and the wireless ultrasonic sensor via Bluetooth and the app as short as possible. The Bluetooth connection between the sensor and the app is automatically terminated if there is no further user activity for five minutes.
-
Page 16: Mounting
There must be no interfering elements in the sensing range of the ultrasonic sensor. Depending on the contour, the adjustable sensor configuration may be used to exclude interfering struts in the container. For more information, contact the application specialists at Pepperl+Fuchs. -
Page 17: Mounting Instructions
Manual WILSEN.sonic.level WS-UC*-F406-B41* Mounting Mounting Instructions The wireless ultrasonic sensor is delivered pre-mounted on a mounting base for easy and quick mounting in a container, tank, silo, etc. The mounting base enables various mounting points. The following drawings show the dimensions and mounting points of the wireless ultrasonic sensor versions. - Page 18 Manual WILSEN.sonic.level WS-UC*-F406-B41* Mounting WS-UCC4000-F406-* 7x45° (4x) 40.5 ø 9 (2x) M6 (8x) (22.98) M4 (4x) Figure 5.2...
- Page 19 Manual WILSEN.sonic.level WS-UC*-F406-B41* Mounting WS-UC7000-F406-* 66.1 40.5 M4 (4x) ø 9 (2x) ø 65 Figure 5.3 You can attach the mounting base to an installation location via the following points: • Via the front sides using two 9 mm thru–holes with M8 screws and flat washers. •...
-
Page 20: Measurement Data Acquisition And Data Transfer Of The Wilsen.sonic.level
Manual WILSEN.sonic.level WS-UC*-F406-B41* Measurement Data Acquisition and Data Transfer of the WILSEN.sonic.level Measurement Data Acquisition and Data Transfer of the WILSEN.sonic.level The figure below illustrates the sequence of measurement data acquisition and data evaluation of the WILSEN.sonic.level in conjunction with the triggers that trigger them. Ultrasonic Measurement Trigger: Trigger:... -
Page 21: Parameterization/Information With The Wilsen App
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Parameterization/Information with the WILSEN app Menu Structures The Sensor Status & Configuration menu is the central overview page for further navigation once the user has been successfully authenticated and Bluetooth has been connected. The menu displays current device information and contains further submenus that allow parameterization of the device. - Page 22 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Menu/submenu Task/content Sensor Status & Configuration Main menu with submenus and displays for the device App settings Changing the language and information about the app ver- sion used Ultrasonic Sensor Setting the parameters for the ultrasonic measurement, such as the sound beam width, limits for fill-level determina- tion, and additional settings in expert mode GPS Configuration...
-
Page 23: App Settings Menu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app App Settings Menu In the App Settings menu, you can select the language and color scheme used in the app. In addition, this menu shows legal notices along with the version number of the app installed on your device. -
Page 24: Ultrasonic Sensor Submenu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Ultrasonic Sensor Submenu In the Ultrasonic Sensor submenu, you can set parameters for ultrasonic distance measure- ment. Depending on the application, a simple normal mode and an expert mode are available. Normal Mode In normal mode, only the most important parameters are displayed in a streamlined view. - Page 25 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Expert Mode For more detailed settings, you can set expert mode. Figure 7.4 Configurable Parameters Distance values (mm) with Full (100 %) / Empty (0 %) When these two values are set, the fill level of your container is displayed in the form of a corre- sponding percentage value.
- Page 26 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Note Detailed information on the three default sound beams of your sensor can be found in the corresponding datasheet in the "Characteristic Response Curve" section. You can download the datasheet online from the product detail page for the relevant WS-UC*- F406-B41-* wireless ultrasonic sensor at www.pepperl-fuchs.com.
- Page 27 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Sensitivity This parameter sets the sensitivity of the ultrasonic amplifier. You may select from the following six adjustment options: • Maximum • Very High • High • Medium • • Minimum The resulting sound beam geometry, including possible influence on the dead band and detec- tion range, depends on the settings of the "Sensitivity", "Transmitting Power", and "Burst Length"...
- Page 28 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app By reducing the transmitting power, you can shorten the dead band of the sensor. However, this automatically reduces the sensing range of the sensor significantly and the nominal range is no longer reached. The burst length is not affected by this parameter.
- Page 29 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Measurements per Seq. & At Intervals of These two parameters allow you to define the number of measurements that make up the mea- surement sequence and the time interval at which they are performed. Note Note that the total time required to execute the measurement sequence may consist of up to several minutes, depending on the setting selected.
- Page 30 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app For example: • set LoRa transmission interval = six hours • additional measurements = five A measurement / measurement sequence is carried out every hour. Every six hours, the mea- sured value determined within this six hour interval and evaluated via the filter is transmitted via LoRaWAN.
-
Page 31: Gps Configuration Submenu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app GPS Configuration Submenu In this submenu, you can activate the GPS function of the sensor and set the position determi- nation frequency and transmission interval. Figure 7.6 GPS Acquisition This switch activates the GPS function of the sensor. The two parameters "Acquisition Interval" and "Next Acquisition"... - Page 32 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Note An initial or newly initiated acquisition of the GPS position will only take place after the time set in the "Next Acquisition" parameter has elapsed. Therefore, when you tap the "Apply" button, a corresponding countdown timer is displayed at the bottom of the GPS configuration menu.
-
Page 33: Lorawan Configuration Submenu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app LoRaWAN Configuration Submenu The LoRaWAN configuration submenu is used to set the wireless connection parameters specific to LoRaWAN and to set the transmission interval. Figure 7.7 Device EUI The "Device EUI" is a device-specific identifier that identifies the device in the LoRa network. It is similar to the MAC address of a node in a computer network. - Page 34 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Application Key The Application Key is used to encrypt the sensor measurement data before it is transmitted. A random number is assigned at the factory as the Application Key and this is unique for each sensor unit.
- Page 35 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app You can choose between the values "1" and "3" as the number of message transmissions (pay- load). • With "1," the sensor sends each message (payload) toward the gateway only once. • With "3,"...
- Page 36 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Conversely, there are also applications in which consistently very good LoRa network coverage is ensured. In such a case, it can also be advantageous to set the spreading factor to a fixed value.
- Page 37 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Caution! Observe the maximum permissible transmission time per device! Legal regulations in Europe allow a maximum permissible transmission time (air time / duty cycle) of 1 % per hour for the use of the 868 MHz band per device. If the "Transmission Interval" parameter is set to a value of at least 30 minutes, this requirement is fulfilled regardless of the other influencing factors.
-
Page 38: Device Configuration Submenu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Device Configuration Submenu The Device configuration submenu displays the device name and allows you to disable the Bluetooth interface of the sensor, change the device password, reset the device to factory set- tings, and reset the counters. - Page 39 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Reset To Factory Defaults This button takes you to another submenu where three reset options are provided. Figure 7.9 Include password If you select this option, all device parameters, including the password, are reset to the factory settings.
-
Page 40: Device Information Submenu
Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Device Information Submenu The Device information submenu contains a variety of information about the device, such as device data and counter readings. In addition, it includes the function for updating the firmware "over-the-air"... - Page 41 Manual WILSEN.sonic.level WS-UC*-F406-B41* Parameterization/Information with the WILSEN app Firmware update By pressingthis button, an updateof the devicefirmware isperformed "over-the-air"after aconfir- mationprompt. Using the internet connection of the mobile device you are using, a newer ver- sion of the firmware is downloaded and then installed on the device. Note If a more up-to-date version is available, executing this function will overwrite the existing firmware on the device without any further prompt.
-
Page 42: Servicing
Manual WILSEN.sonic.level WS-UC*-F406-B41* Servicing Servicing The device itself is maintenance-free. For this reason, it is not necessary to carry out regular adjustments or maintenance work on the device itself. However, check that the device is securely fitted at the installation location within the scope of routine maintenance intervals. -
Page 43: Replacing The Battery
Warning! Non-genuine batteries jeopardize operational safety. Use only genuine spare batteries from Pepperl+Fuchs; otherwise the function and safety of the device cannot be guaranteed. At worst, unapproved batteries can result in personal injury or property damage due to fire. Unapproved batteries may become discharged earlier than genu- ine batteries. - Page 44 Manual WILSEN.sonic.level WS-UC*-F406-B41* Replacing the Battery Replacing the Battery Figure 9.1 Open the locking mechanism of the enclosure using a screwdriver. Open the enclosure cover. Figure 9.2 Carefully pull the plug of the battery connection cable out of the connector. Detach the hook-and-loop tape securing the battery and remove the old battery.
-
Page 45: Cleaning
Manual WILSEN.sonic.level WS-UC*-F406-B41* Cleaning Cleaning It is not necessary to clean the device regularly. If cleaning is required, please observe the following general rules: • Only with water without chemicals • Without pressure / high pressure • Only by using a soft cloth •... -
Page 46: Repair
Manual WILSEN.sonic.level WS-UC*-F406-B41* Repair Repair The device must not be repaired, changed, or manipulated. In case of failure, always replace the device with an original device. -
Page 47: Disposal
Manual WILSEN.sonic.level WS-UC*-F406-B41* Disposal Disposal The device, built-in components, packaging, and any batteries contained within must be disposed in compliance with the applicable laws and guidelines of the respective country. - Page 48 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-7000B...
