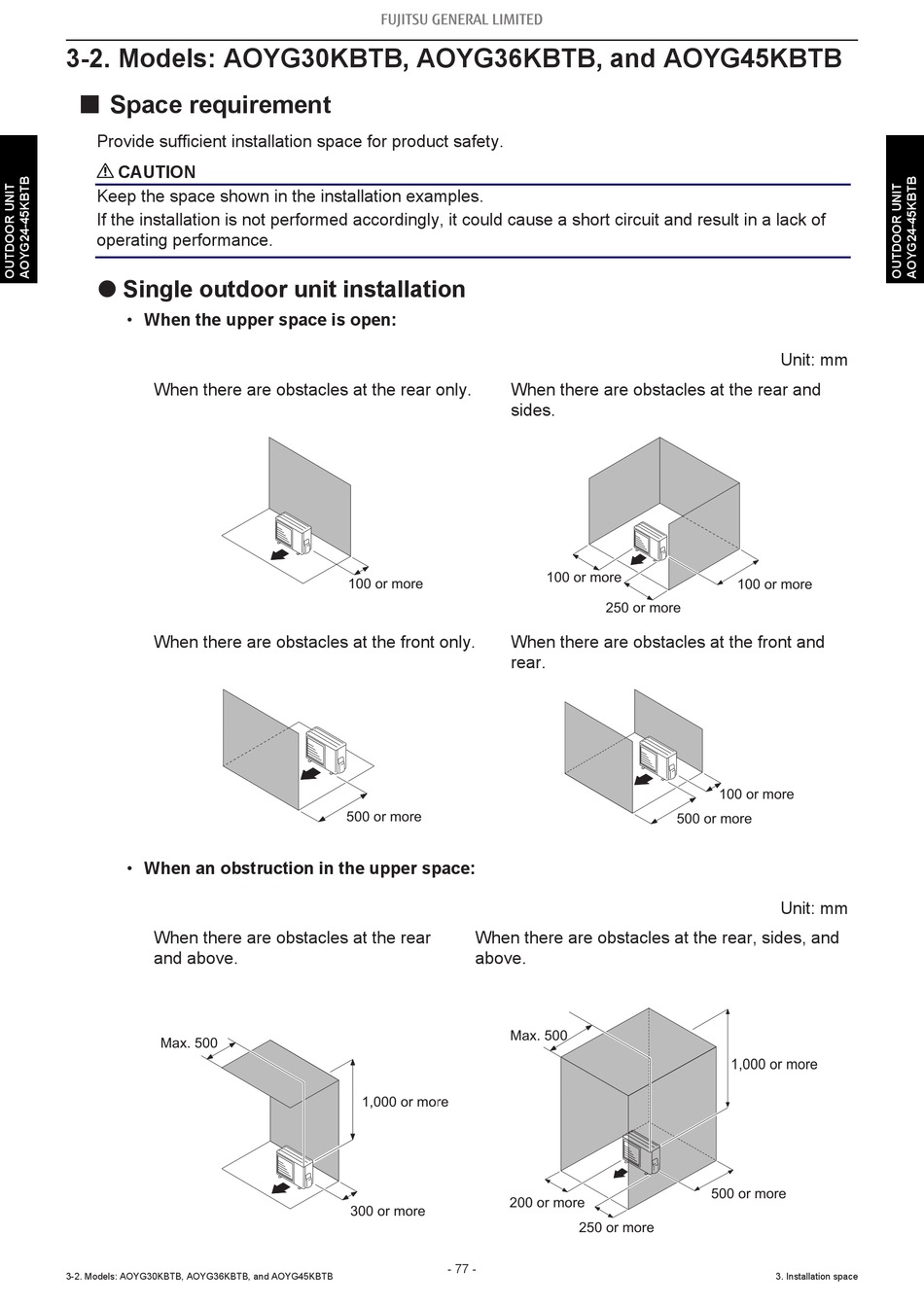

3-2. Models: AOYG30KBTB, AOYG36KBTB, and AOYG45KBTB

¢ Space requirement
Provide sufficient installation space for product safety.
CAUTION
Keep the space shown in the installation examples.
If the installation is not performed accordingly, it could cause a short circuit and result in a lack of
operating performance.
 Single outdoor unit installation
• When the upper space is open:
When there are obstacles at the rear only.
When there are obstacles at the front only.
• When an obstruction in the upper space:
When there are obstacles at the rear
and above.
Max. 500
3-2. Models: AOYG30KBTB, AOYG36KBTB, and AOYG45KBTB
When there are obstacles at the rear and
sides.
100 or more
When there are obstacles at the front and
rear.
500 or more
When there are obstacles at the rear, sides, and
above.
Max. 500
1,000 or more
200 or more
300 or more
- 77 -
100 or more
250 or more
100 or more
500 or more
500 or more
250 or more
Unit: mm
100 or more
Unit: mm
1,000 or more
3. Installation space
