3. Wiring diagrams

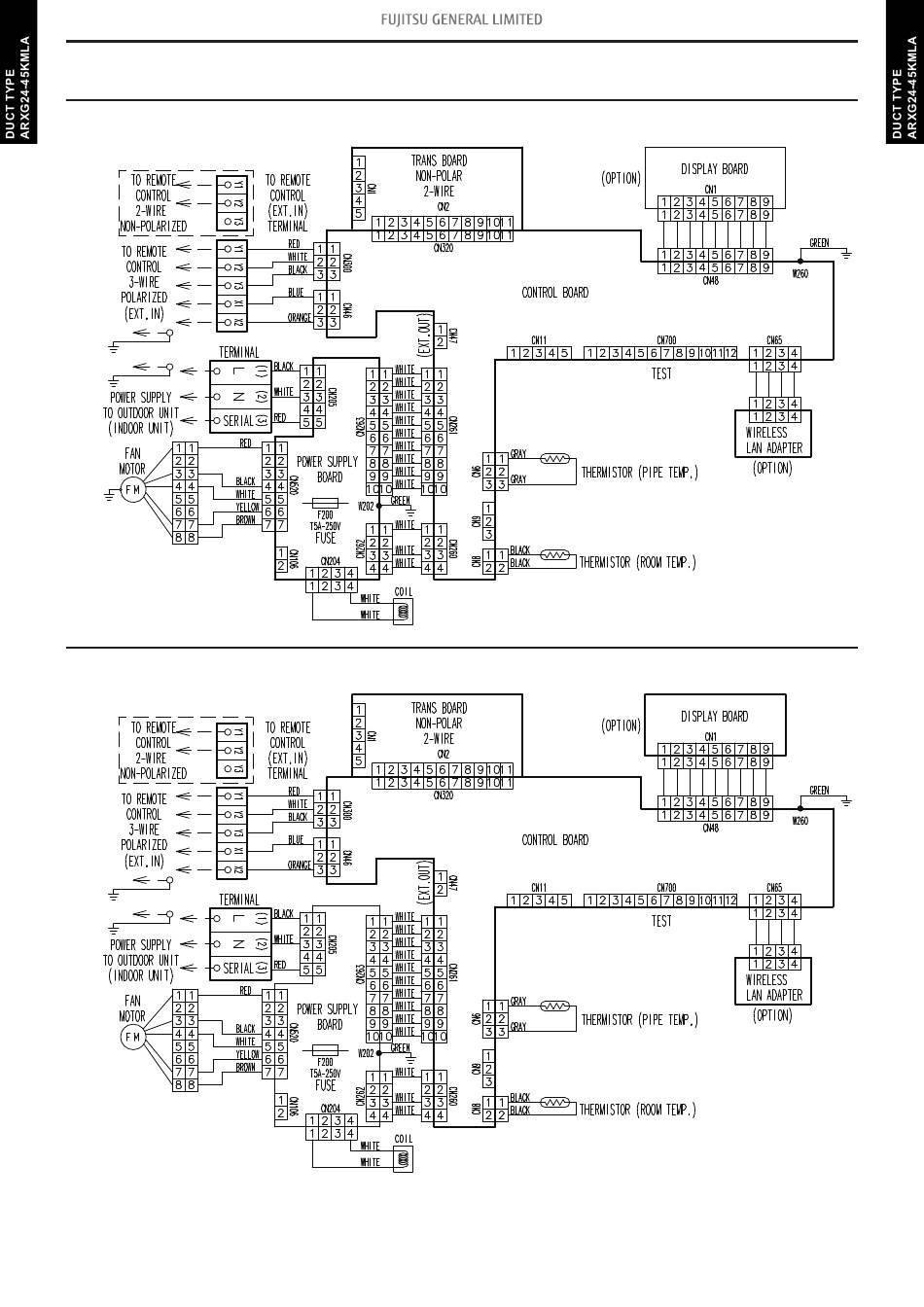

3-1. Model: ARXG24KMLA

3-2. Models: ARXG30KMLA, ARXG36KMLA, and ARXG45KMLA

- 7 -
3-1. Model: ARXG24KMLA
3. Wiring diagrams
