- Page 1 VERSION 2.0 J120 & J121 J120 & J121 technical reference manual 38198-x and 38350-x Version 2.0 Preliminary July 2019 Auvidea GmbH Kellerberg 3 D-86920 Denklingen Tel: +49 8243 7714 622 info@auvidea.com www.auvidea.com AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
-
Page 2: Copyright Notice
For any other mode of sharing, please contact the author at the email below. info@auvidea.com Commercial use and distribution of the contents of this document is not allowed without express and prior written consent of Auvidea GmbH. -
Page 3: Technical Details
• power: 12V typical (4 pin) - 2 power pins for powering • range: 7V to 17V • do not use the 19V power supply of the Jetson TX1/TX2 dev kit as it will damage the J120 carrier board AUVIDEA GMBH TECHNICAL REFERENCE MANUAL... - Page 4 The J100 may be plugged into the M100 motherboard. Three motherboard connectors carry signals for CAN, Ethernet, UART, power, PCIe, SATA, SPI, I2C and more. The M110 features standard connectors for SATA and PCIe (4 lanes). AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
-
Page 5: Change Log
• added LM75 temp sensor • only one CAN bus and connector (CAN2) to overcome problem with SPI1_CS0 line - one CAN bus supported with TX1 firmware provided by Auvidea J120 Rev 4 (38198-4) • changed I2C pullup resistors from 1k to 10k (to improve I2C signal low level) J120 Rev 5 (38198-5) •... - Page 6 So the J121 makes 2 USB 3.0 ports available at the expense of the M.2 slot being reduced from 4 lanes to 2 lanes. For the J121 to be working correctly it needs our new firmware. Please visit www.auvidea.eu/ firmware/ to get the latest version.

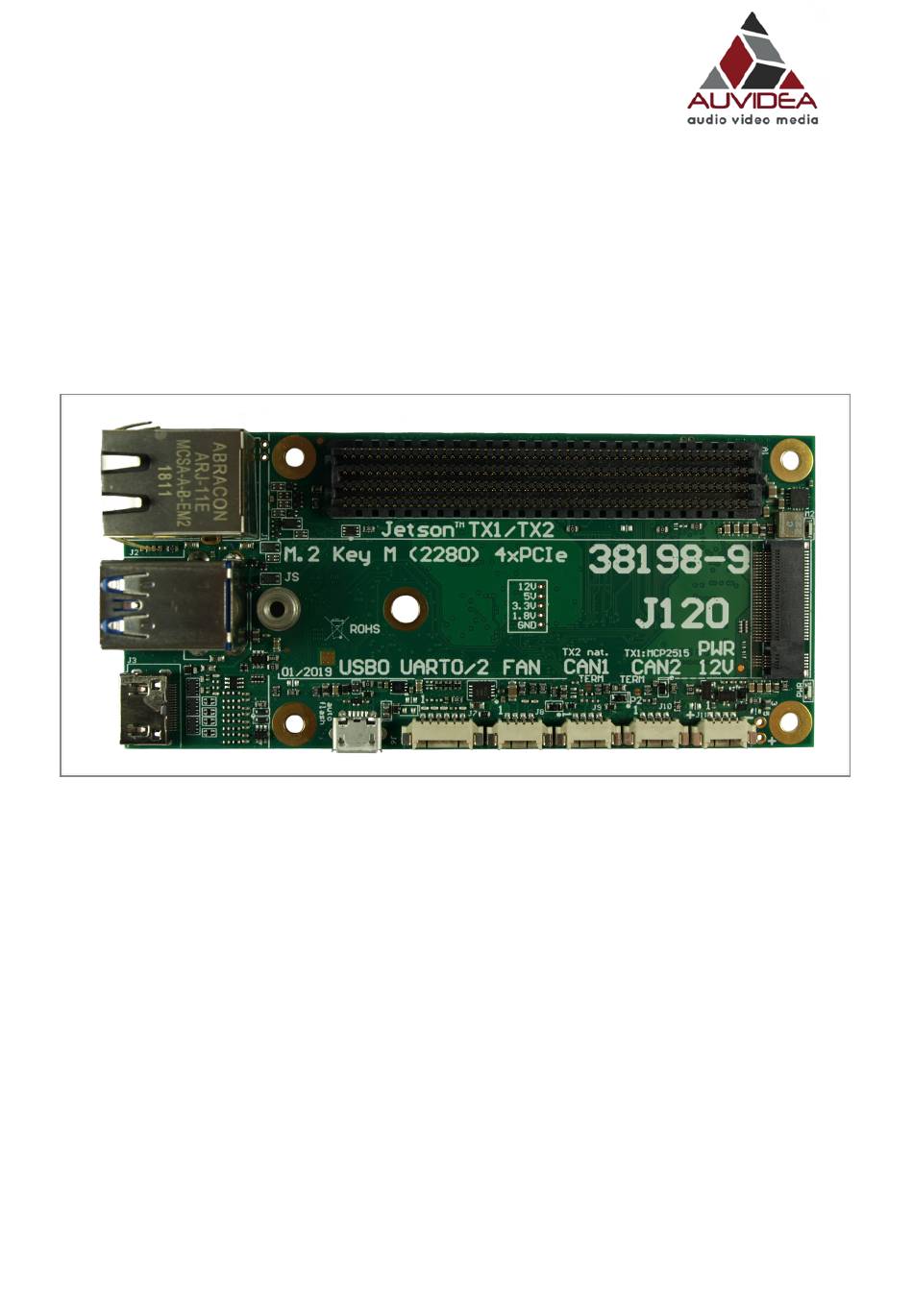

- Page 7 VERSION 2.0 J120 & J121 J120 rev 9 top side (fig. 3) J120 rev 9 bottom side AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 8 • IMU (with qtcreator test program) • M.2 2280 PCIe SSD Please have a look at the test report which is included with the shipment. STEP (3D) models Please download the step models from https://auvidea.eu/step/. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
-
Page 9: Getting Started
Please put the the TX1 into the upgrade mode with the recovery button before connecting the USB cable to USB0. Alternatively please perform the firmware upgrade on the TX1 development board. Firmware upgrade is supported fine on the newer revs. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL... - Page 10 TX1. A typical application for this task is the GStreamer. A driver developed by Ridgerun is provided and included in the Auvidea TX1 firmware. Please contact us for the source code of the driver.
- Page 11 J120. Please make sure that your J120 has the IMU installed. I2C busses with the Jetson TX1 The Jetson TX1 features 7 I2C devices: I2C0 to I2C6. The table below lists how these I2C devices are mounted. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 12 The J120 features 1 or 2 CAN interfaces. As the Jetson TX1 does not have native CAN interfaces, the J120 features 2 SPI based CAN controllers (Microchip MCP2515). Please install the Kernel and support package with the MCP2515 driver, which is provided by Auvidea. Because of a bug in the SPI_CS_0 handling only 1 CAN controller is populated.
- Page 13 14.04 LTS host machine. For details on cross-compiling a kernel for L4T please visit the Ridgerun wiki. https://developer.ridgerun.com/wiki/index.php?title=Compiling_Tegra_X1_source_code#Kernel The required module '.config' parameter is CONFIG_BLK_DEV_NVME=y or in menuconfig under Device Drivers -> Block Devices -> NVM Express block device AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 14 Connectors Auvidea supplies cable kits for the connectors with 1.25 mm pitch. Please check our website for details. Figure 1 and 2 show the J120 rev 2 but the connector placement and pin numbering also applies to the J120 rev 1.
- Page 15 Description 5V power controlled by USB0_EN_OC* (A17) - max. 500 mA USB0-D- USB 2.0 data USB0-D+ USB 2.0 data USB0_ID connected to 3.3V with 10k pullup Ground USB0_VBUS connected to pin 1 of this connector AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 16 5V power for the CAN bus (500 mA) CAN2_H CAN data high CAN2_L CAN data low Ground (0V) CAN2 (J10): Function Jetson TX1 Description 5V power for the CAN bus (500 mA) CAN1_H CAN data high CAN1_L CAN data low Ground (0V) AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 17 CSI-2 bus E lane 0 CSI-E-D0- CSI-2 bus E lane 0 Ground Ethernet (J1) The J120 features an on-board RJ45 connector for 10/100/1000BT Ethernet with 2 LEDs. Function Jetson TX1 Description GBE0 GBE_LINK_ACT* left LED GBE1 GBE_LINK_100 right LED AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 18 UART 0 console port (3.3V TTL level): receive data input UART0_CTS GPIO3_PU.03 UART 0 console port (3.3V TTL level): clear to send UART0_RTS GPIO3_PU.02 UART 0 console port (3.3V TTL level): ready to send Ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 19 5V power output (3.3V if only the MCU is powered) UART0_TXD UART 0 console port (3.3V TTL level): transmit data output - tunnelled through the watchdog UART0_RXD UART 0 console port (3.3V TTL level): receive data input - tunnelled through the watchdog AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 20 2 redundant power supplies. Function Jetson TX1 Description power in 1 power input: typical 12V (range: 7V to 17V) power in 2 power input: typical 12V (range: 7V to 17V) power ground power ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 21 I2C0_CLK (level shifted to 3.3V with 10k pullup) I2C0_DAT I2C0_DAT (level shifted to 3.3V with 10k pullup) Ground Note: J120 rev 1, 2, and 3: pin 8 and pin 9 have 1k pullup (rev 4 and newer: 10k) AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 22 J120 rev 1: this slot is non functional due to power limitations of the integrated 3.3V power supply. J120 rev 2: this will be fixed by adding a 3.3V 3A power supply. Form factor: 2242, 2260 or 2280 (22 x 80 mm) Interface: four PCIe lanes for top performance (no SATA support) AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 23 JTAG port of Jetson TX2 JTAG_AP_RTCK JTAG port of Jetson TX3 JTAG_AP_TDO JTAG port of Jetson TX4 JTAG_AP_TMS JTAG port of Jetson TX5 NVJTAG_SEL JTAG port of Jetson TX6 JTAG_AP_TDI JTAG port of Jetson TX7 Ground AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 24 (with pin 7). The MCU tunnels the console UART interface to the TX1/TX2. Some instructions are intercepted by the MCU and executed by it. These instructions are not forwarded to the TX1/TX2. AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
- Page 25 ST/LINK programming adapter (SWCLK, SWDIO, GND). We recommend the use of the STM32VLDISCOVERY discovery kit for STM32F100 Value line. It is available in the Auvidea online shop and at digikey.com (497-10633-ND). To connect to the J120, please remove the 2 CN3 jumpers and connect SWCLK, SWDIO and GND to the 4 pin CN2 header.
- Page 26 MCU so that it may be bypassed. Alternatively the MCU may be removed. 2. please populate RN1 with a 10 Ohm resistor network (Panasonic: EXB-24V100JX, Digikey: Y5100CT-ND, Auvidea: 25151), to connect the UART0 port of the TX1/ TX2 to J7. Please note that this requires very good soldering skills and it should be performed by our technicians.
- Page 27 Q: Why does not USB work on my J120/J121? A: You have to flash your TX2 module with Jetpack 4.2 using NVIDIA's SDK manager and then apply our patch: J120: https://www.auvidea.eu/download/firmware/TX2/v2.0/J120_4.2.zip J121: https://www.auvidea.eu/download/firmware/TX2/v2.1/J121_v2_1.tar.bz2 Instructions on how to apply it are inside the downloaded .zip file.
- Page 28 Thank you for reading this manual. If you have found any typos or errors in this document, please let us know. This is the preliminary version of this data sheet. Please treat all specifications with caution as there may be any typos or errors. The Auvidea Team AUVIDEA GMBH TECHNICAL REFERENCE MANUAL...
