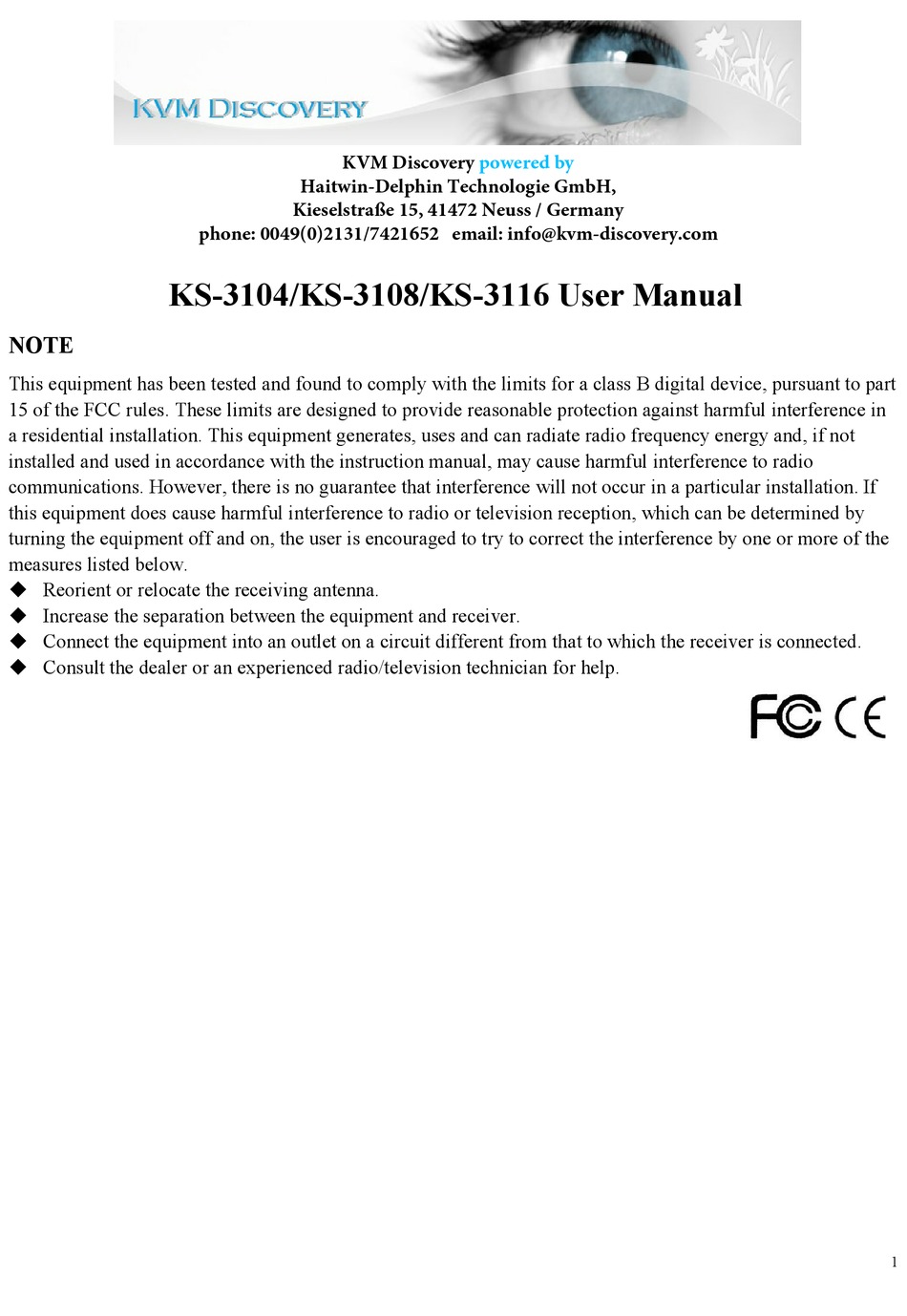

KS-3104/KS-3108/KS-3116 User Manual
NOTE
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
1
Advertisement
Table of Contents
Related Manuals for KVM Discovery KS-3104
Summary of Contents for KVM Discovery KS-3104
- Page 1 Haitwin-Delphin Technologie GmbH, Kieselstraße 15, 41472 Neuss / Germany phone: 0049(0)2131/7421652 email: info@kvm-discovery.com KS-3104/KS-3108/KS-3116 User Manual NOTE This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 2 PACKING LIST The complete KS-3104/KS-3108/KS-3116 4ports/8 ports/16 ports PS/2 / USB switch package consists of: KS-3104/ KS-3108/KS-3116 4ports/ 8 ports/16 ports PS/2 / USB switch Power Adapter User Manual Please check to make sure that all the components are present and that nothing was damaged in shipping. If you encounter a problem, contact your dealer.
-
Page 3: Table Of Contents
OVERVIEW....................................... 4 FEATURES......................................4 HARDWARE REQUIREMENTS..............................4 CONSOLE....................................4 COMPUTER....................................4 INTRODUCTION....................................5 KS-3104 FRONT VIEW …………………………………………………………………………………………....5 KS-3108 FRONT VIEW................................5 KS-3116 FRONT VIEW................................5 KS-3104 REAR VIEW……………………………………………………………………………………………....6 KS-3108 REAR VIEW................................6 KS-3116 REAR VIEW................................6 INSTALLATION....................................7 BEFORE YOU BEIGIN................................7 SINGLE STAGE INSTALLATION............................7 Illustration of Dongle................................. -
Page 4: Overview
It works on multiple operating platform (PC compatible, Sun, etc.). There is no better way to save time and money than with a KS-3104/ KS-3108 / KS-3116 installation. Since a single console manages all of the computers, the KS-3104/ KS-3108 /KS-3116; setup: (1) eliminates the expense of having to purchase a separate keyboard, monitor, and mouse for each computer;... -
Page 5: Introduction
INTRODUCTION KS-3104 FRONT VIEW KS-3108 FRONT VIEW KS-3116 FRONT VIEW 1. The port LEDs are built into the Port Selection Switches. The upper ones are the On Line LEDs; the lower ones are the Selected Port LEDs: The On Line LEDs light RED to indicate that the computer attached to the corresponding port is up and running. -
Page 6: Ks-3104 Rear View
KS-3104 with IP module KI-4101 (Rear View) 1 2 3 KS-3108 with IP module KI-4101 (Rear View) KS-3116 with IP module KI-4101 (Rear View) 1. IP Module Restore to Default Plug needle or ballpoint pen into the hole to restore the IP module to default setting. -
Page 7: Installation
6. 6. Plug the power adapter cable into the switch’ s power jack, then plug the power adapter into an AC power source. This completes the single stage installation, and you can turn on the power to the computers. NOTE: The KS-3104/ KS-3108/ KS-3116 initially links to computer connected to the first Computer port. ILLUSTRATION:... -
Page 8: Illustration Of Dongle
OPERATION HOT PLUGGING The KS-3104/ KS-3108/ KS-3116 supports hot plugging. Components can be removed and added back into the installation by unplugging and replugging their cables from their respective ports without the need to shut the switch down. For hot plugging to work properly, the following procedure must be observed: ... -
Page 9: Osd Operation
OSD OPERATION OSD OVERVIEW The On Screen Display (OSD) is used to handle all computer control and switching procedures. All procedures start from the OSD main menu. To pop up the main menu, tap the [Ctrl] twice. If OSD menu is set as “console locked”, you must input password each time the main menu appears. If no password has been set, just press [Enter] to show main menu. -
Page 10: Osd Main Screen Headings
OSD MAIN SCREEN HEADINGS Heading Explanation This column lists the port numbers for all the CPU ports on the installation. The simplest method to access a particular computer is to move the highlight bar to it, then press [Enter]. If a port has been selected for Quick View scanning, an arrowhead symbol displays in this column to indicate so. - Page 11 QVIEW + NAME Lists only the ports that have been selected as Quick View Ports and have name. NAME Lists only the ports that have names. Move the highlight bar to the choice you want, then press [enter]. An icon appears before the choice to indicate that it is the currently selected one.
- Page 12 Options are CTRL, SCROLL, SHIFT and ALT. Move the highlight bar to an option and press [Enter] to select SET PASSWORD: Set new password. First enter old password, then enter new password and confirm it. The new password is set. If error occurs, the screen will remind users.
-
Page 13: Trouble Shooting
KVM switch needs to be Press reset button on the rear panel. reset. OSD menu no display. Power supply problem. Plug power adapter to supply enough power. SPECIFICATION Type KS-3104 KS-3108 KS-3116 Computer connections CPU port selection Front panel switches/OSD menu Console Keyboard... -
Page 14: Safe Guide
SAFE GUIDE Please follow the directions below when installing, using and maintaining it in order to guarantee the device to work well. When installing and operating the device, please make sure proper power supply first, and then do other operations after it is initialized.
