AS-21UA / AS-41UA USB KVM Switch User Manual
NOTE
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Advertisement
Table of Contents
Related Manuals for KVM Discovery AS-21UA
Summary of Contents for KVM Discovery AS-21UA

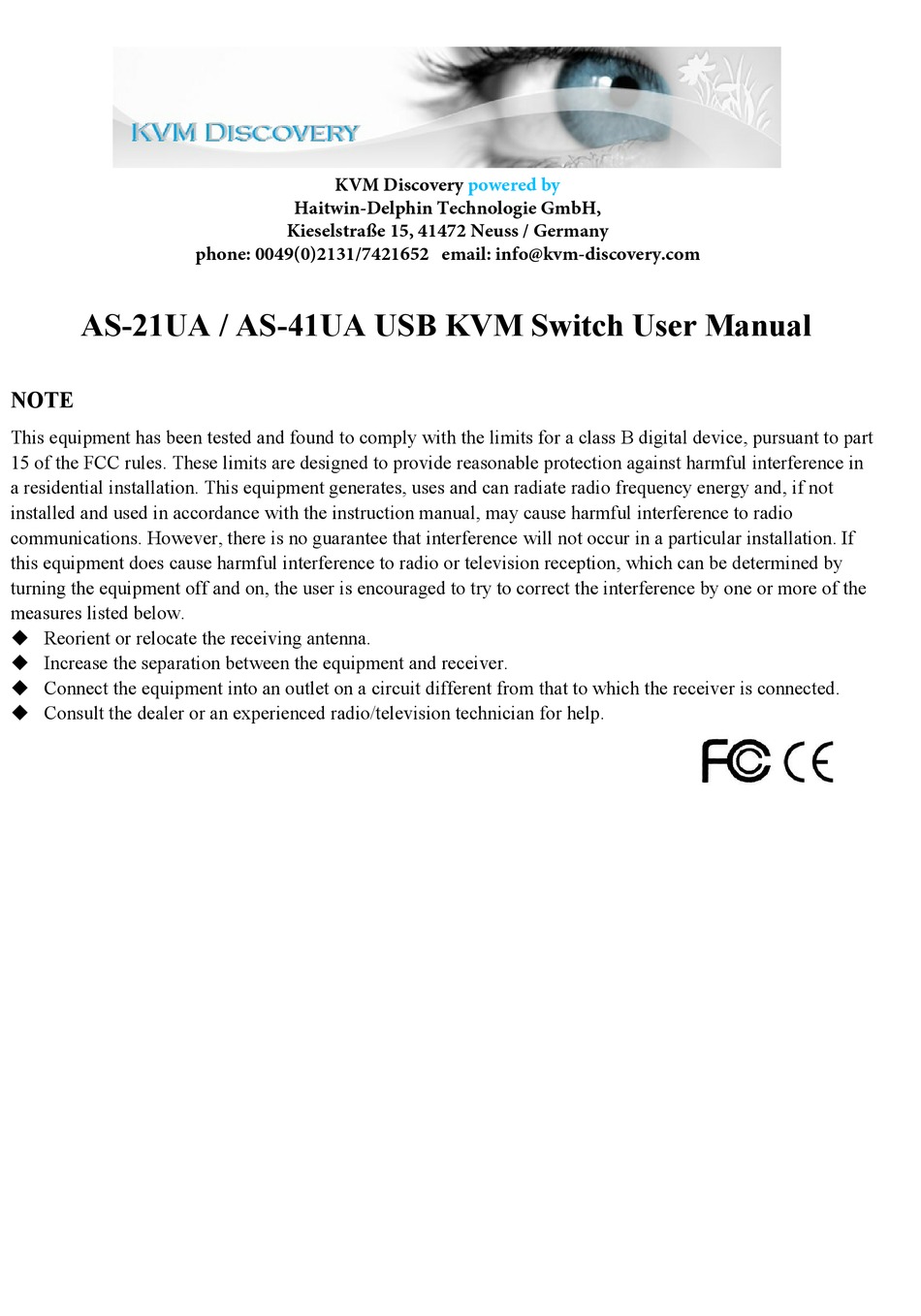

- Page 1 Kieselstraße 15, 41472 Neuss / Germany phone: 0049(0)2131/7421652 email: info@kvm-discovery.com AS-21UA / AS-41UA USB KVM Switch User Manual NOTE This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules.
-
Page 2: Packing List
PACKING LIST The complete AS-21UA/AS-41UA 2 ports/4 ports USB package consists of: AS-21UA/AS-41UA 2 ports/4 ports USB switch USB connection cable 2 or 4 User Manual Warranty Card Check to make sure that all the components are present and that nothing was damaged in shipping. If you encounter a problem, contact your dealer. - Page 3 Content OVERVIEW....................................... 4 FEATURES......................................4 INSTALLATION....................................5 OPERATION...................................... 6 Panel Control....................................6 Hot Key Control..................................6 SPECIFICATIONS.....................................7 SAFETY GUIDE....................................7...
- Page 4 KVM switches can save money and human cost in multiple computer systems. Users need not to purchase a separate keyboard, monitor and mouse for each computer. They allow users to access and control up to 2 (AS-21UA) or 4 (AS-41UA) computers USB keyboard, USB mouse, and monitor console.
- Page 5 INSTALLATION All the connectors are on the rear panel. The rear panel is shown as following: AS-21UA AS-41UA ： Mouse interface ： Keyboard interface ： Monitor interface ： Speaker interface ： Host signal interface ： Host audio interface ：microphone interface Before installing, please make sure that all the devices are power off, and then do the following: 1.

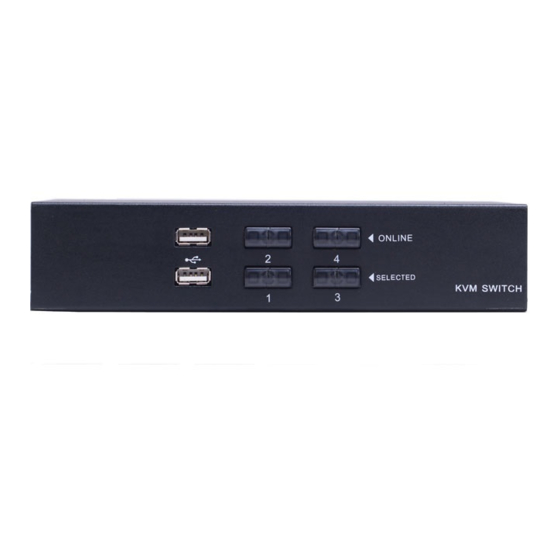

- Page 6 Panel Control KVM switches and port status indication can be done by front panel. The front panel is shown as following: AS-21UA AS-41UA Buttons on panel are selection buttons. Just press one button and then you can select the corresponding port.
-
Page 7: Specifications
SPECIFICATIONS Type AS-21UA AS-41UA Computer connections CPU port selection Front panel switches/Hot key Console Keyboard 2 x USB female 4 x USB female connector Mouse Video 1 x HDB-15 female Keyboard connection 2 x HDB-15 Female 4 x HDB-15 Female...
