KVM Discovery
powered by
Haitwin-Delphin Technologie GmbH,
Kieselstraße 15, 41472 Neuss / Germany
phone: 0049(0)2131/7421652 email: info@kvm-discovery.com

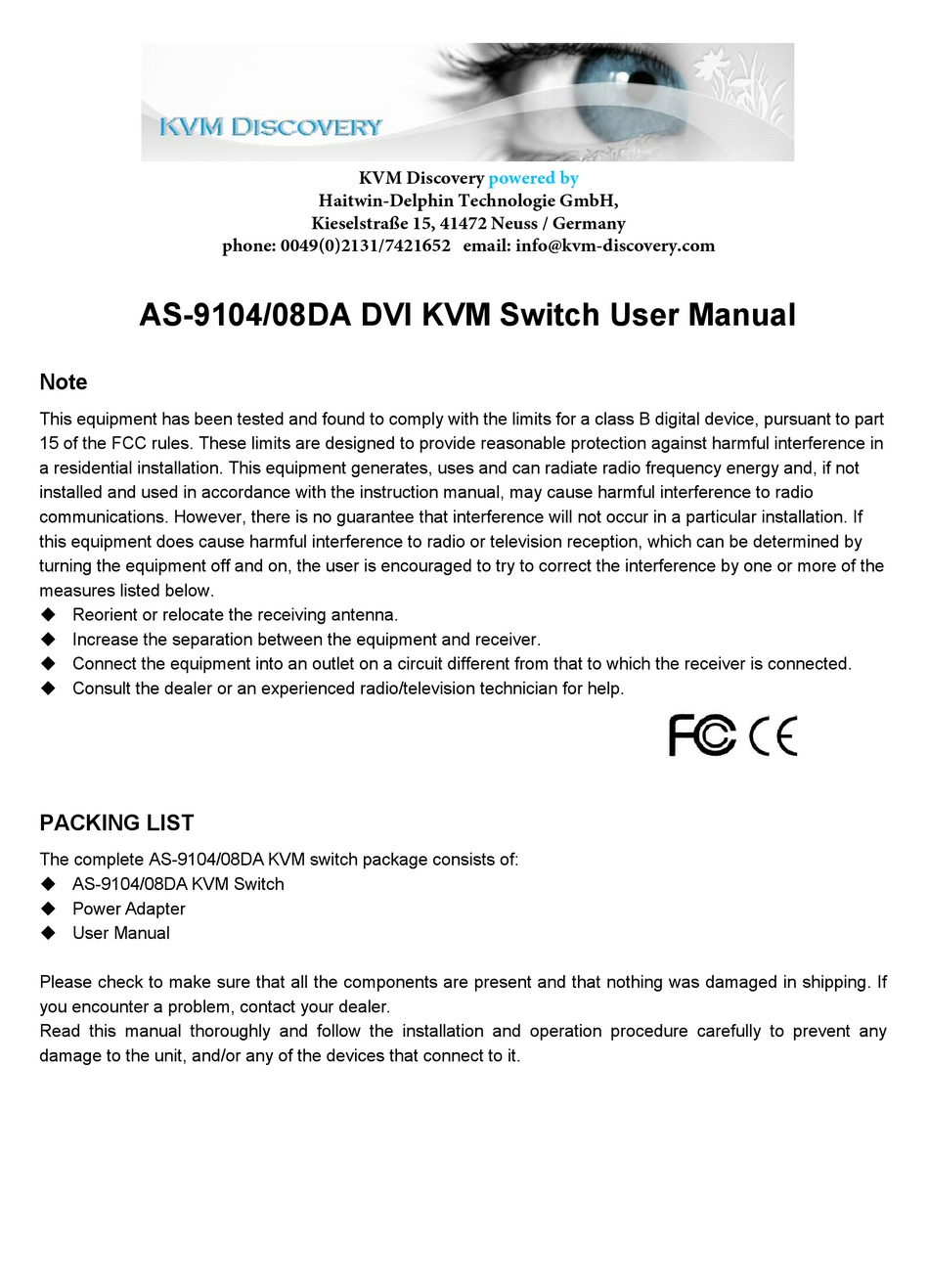

AS-9104/08DA DVI KVM Switch User Manual
Note
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
PACKING LIST
The complete AS-9104/08DA KVM switch package consists of:
AS-9104/08DA KVM Switch
Power Adapter
User Manual
Please check to make sure that all the components are present and that nothing was damaged in shipping. If
you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedure carefully to prevent any
damage to the unit, and/or any of the devices that connect to it.
Advertisement
Table of Contents
Related Manuals for KVM Discovery AS-9104/08DA
Summary of Contents for KVM Discovery AS-9104/08DA
-
Page 1: Packing List
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help. PACKING LIST The complete AS-9104/08DA KVM switch package consists of: AS-9104/08DA KVM Switch Power Adapter ... -
Page 2: Table Of Contents
Overview....................................3 Features....................................3 HARDWARE REQUIREMENTS............................3 CONSOLE..................................3 COMPUTER.................................. 3 Cable....................................3 INTRODUCTION.................................. 5 AS-9104/08DA Front View............................5 AS-9104/08DA Rear View............................5 INSTALLATION..................................6 BEFORE YOU BEIGIN..............................6 SINGLE STAGE INSTALLATION..........................6 OPERATION..................................6 HOT PLUGGING................................6 POWERING OFF AND RESTARTING........................6 PORT SELECTION...............................6 OSD OPERATION................................7 OSD OVERVIEW................................ -
Page 3: Overview
OVERVIEW AS-9104/08DA Switch is a control unit that allow access and control of up to 8 computers from a single PS/2 / USB keyboard, PS/2 / USB mouse, and monitor console. There are two convenient methods to access any computer connected to the installation: (1) using the push button port selection switches located on each unit’s front panel;... -
Page 4: Introduction
Connect AS-9104/08DA Device Connect PC KVM Console Power Cable Type Instruction Voltage Applicable models AC Power Cord National Standard 3 Plug AC 100~240V External LCD Power Introduction AS-9104DA Front View... -
Page 5: As-9104/08Da Front View
AS-9108DA Front View 1. LED The port LEDs are built into the Port Selection Switches. “ON” is online LED；“SEL” is selected port LED。 The On Line LEDs light RED to indicate that the computer attached to the corresponding port is up and running. -
Page 6: Installation
OPERATION HOT PLUGGING AS-9104/08DA supports hot plugging.Components can be removed and added back into the installation by unplugging and replugging their cables from their respective ports without the need to shut the switch down. For hot plugging to work properly, the following procedure must be observed:... -
Page 7: Powering Off And Restarting
Note: If the unit is operating under external power, unplug the power adapter cable. 2. Wait 10 seconds, then plug the power adapter back and power on all computers. PORT SELECTION AS-9104/08DA provides two methods to obtain instant access to any computer in your installation: man ual and OSD. Manual Simply press the appropriate port selection switch on the AS-9104/08DA’s front panel. -
Page 8: Osd Main Screen Headings
To activate a port, move the highlight bar to it then press [Enter] OSD MAIN SCREEN HEADINGS Heading Explanation PORT This column lists the port numbers for all the CPU ports on the installation. The simplest method to access a particular computer is to move the highlight bar to it, then press [Enter]. -
Page 9: Trouble Shooting
OSD HOTKEY: Selects the activation hot key for the OSD menu. [Ctrl] [Ctrl] To activate the hot key, double-click the [Ctrl] key. [Scroll] [Scroll] To activate the hot key, double-click the [Scroll] key. [Shift] [Shift] To activate the hotkey assignment, double-click the [Shift] key ... -
Page 10: Specification
Specification Model AS-9104DA AS-9108DA Computer connections CPU port selection Front panel switches/OSD menu Console Keyboard 1 x PS/2 Female (Purple), 1 x USB Type A Female connectors Mouse 1 x PS/2 Female (Green), 1 x USB Type A Female Video 1 x DVI-I Female Keyboard/Mouse 1 x USB Type B Female...
