For Ao*18Lmak2/ 24Lmam2; Parts Layout Drawing - Fujitsu AB 14LBAJ Series Service Instruction

1. REPLACEMENT PARTS (For OUTDOOR UNIT)

1-1 For AO*18LMAK2/ 24LMAM2

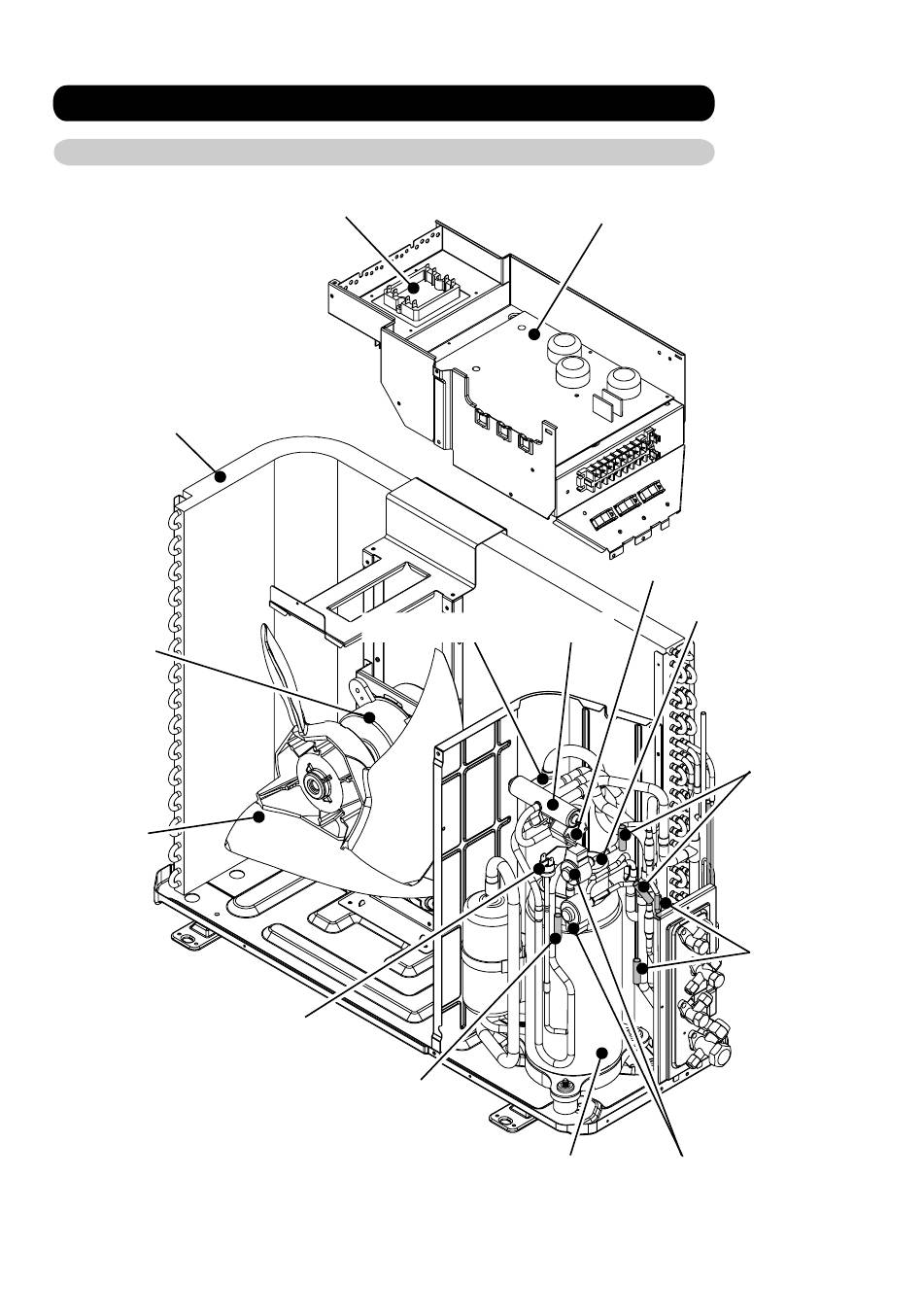

1-1-1 PARTS LAYOUT DRAWING

Active Filter Module
Heat Exchanger
Fan motor
Fan
Pressure SW
Accumulator
Thermistor
(Discharge temp.)
03-01
Main PCB
Solenoid
4-way valve
Compressor
PTC Thermistor
Thermistor
(2-way valve temp.)
Thermistor
(3-way valve temp.)
Coil (Expansion valve)&
Expansion valve
