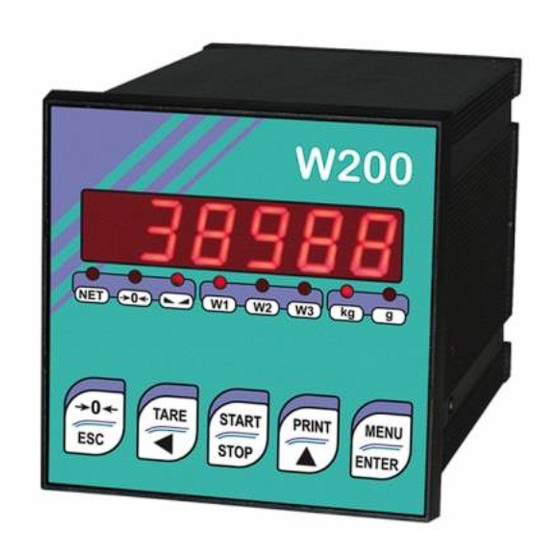

- Page 1 ENGLISH ENGLISH ENGLISH ENGLISH Installation and User Manual version 1.07 W200-S Unload 2014/30/EU EN55022:2010 EN61000-6-2:2005 EN61000-6-4:2007 SYSTEM IDENTIFICATION...
- Page 2 No guarantee against misuse. Batteries: Laumas provides 1 year guarantee from the date of delivery note, against material defects or battery manufacturing faults. Disposal of Waste Equipment by Users in Private Households in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
-
Page 3: Table Of Contents
TABLE OF CONTENTS USER WARNINGS ......................... 1 RECOMMENDATIONS FOR CORRECT INSTALLATION OF WEIGHING INSTRUMENTS . 1 RECOMMENDATIONS FOR CORRECT INSTALLATION OF THE LOAD CELLS ....1 LOAD CELL INPUT TEST (QUICK ACCESS) ................. 3 LOAD CELL TESTING ......................3 MAIN SPECIFICATIONS OF THE INSTRUMENT..............4 BUFFER BATTERY ........................ - Page 4 COMMUNICATION SETTING ......................25 WEIMOD MODE ..........................26 WEIRIP MODE ..........................26 ALARM RELAY CLOSURE ....................27 TEST ............................27 DATE AND TIME SETTING ....................27 OPERATION SETTINGS ......................28 INFO MENU ..........................28 PROGRAMMING OF BATCHING CONSTANTS ..............29 MINIMUM WEIGHT.........................
- Page 5 KEYPAD OR DISPLAY LOCKING ..................44 DECLARATION OF CONFORMITY - EU ................45...
-
Page 6: User Warnings
USER WARNINGS RECOMMENDATIONS FOR THE PROPER USE OF WEIGHING INSTRUMENT Keep away from heat sources and direct sunlight Repair the instrument from rain (except special IP versions) Do not wash with water jets (except special IP versions) Do not dip in water Do not spill liquid on the instrument Do not use solvents to clean the instrument Do not install in areas subject to explosion hazard (except special Atex versions) - Page 7 CONNECTING SEVERAL CELLS IN PARALLEL: Connect several cells in parallel by using - if necessary - a watertight junction box with terminal box. The cell connection extension cables must be shielded, led individually into their piping or conduit and laid as far as possible from the power cables (in case of 4-wire connections, use cables with 4x1 mm minimum cross-section).
-
Page 8: Load Cell Input Test (Quick Access)
LOAD CELL INPUT TEST (QUICK ACCESS) From the weight display, press ▲ for 3 seconds; the response signal of the load cells is displayed, expressed in mV with four decimals. LOAD CELL TESTING Load cell resistance measurement (use a digital multimeter): - Disconnect the load cells from the instrument and check that there is no moisture in the cell junction box caused by condensation or water infiltration. -
Page 9: Main Specifications Of The Instrument
Two serial ports (RS485 and RS232) for connection to: PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas or ModBus R.T.U. protocol, remote display, printer. Optional: integrated Profibus DP, DeviceNet, CANopen, Profinet IO, Ethernet/IP, Ethernet TCP/IP, Modbus/TCP output. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS POWER SUPPLY and CONSUMPTION (VDC) 12/24 VDC ±10%; 5 W (standard) POWER SUPPLY and CONSUMPTION (VAC) 115/230 VAC (optional); 50-60 Hz; 6 VA NO. OF LOAD CELLS IN PARALLEL and SUPPLY max 8 (350 ohm); 5 VDC / 120 mA LINEARITY / ANALOG OUTPUT LINEARITY <... -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS TERMINALS LEGEND +SUPPLY (12/24 VDC) OUTPUT No. 5: TOLERANCE/ALARM otherwise: 115/230 VAC optional version: +ANALOG OUTPUT (0÷10 V) +OUTPUT (24 VDC) -SUPPLY (12/24 VDC) RS232, RS485: SHIELD, GND E/EC OPTION: GND E/EC OPTION otherwise: 115/230 VAC optional version: -ANALOG OUTPUT COMMON -OUTPUT (24 VDC) RS232, RS485: SHIELD, GND... -
Page 12: Wiring Diagram
WIRING DIAGRAM OUTPUTS INPUTS E OPTION 12/24 VDC max 115 VAC supply supply 150 mA 5÷24 VDC 4 5 6 7 9 10 RS232 Buttons not included in the supply EC OPTION to instrument 2 3 4 5 6 (1) ANALOG OUTPUT OPTION 14 15 17 18... -
Page 13: Introduction To The Operation
INTRODUCTION TO THE OPERATION The instrument is able to extract automatically a settable amount of product from the weighing structure, driving the batching organ (including two-speed) through the PRESET and SET contacts. The instrument has the following features: - Maximum 99 settable formulas (see section FORMULAS PROGRAMMING); - Batching resume after blackout (see section RESUME BATCHING AFTER A POWER CUT);... -
Page 14: Led And Key Function
LED AND KEY FUNCTION Function net weight (semi-automatic tare) zero (deviation from zero not more than ±0.25 divisions) stability unit of measure: kg unit of measure: g Long press Short press Into menus (3 s) Cancel or return to previous Semi-automatic zero Tare resetting menu... -
Page 15: Menu Map
MENU MAP Into menus changes are applied right after pressing the ENTER key ( no further confirmation is required). SYSTEM PARAMETERS ... -
Page 16: Batching Constants
BATCHING CONSTANTS … … ... -
Page 17: Instrument Commissioning
INSTRUMENT COMMISSIONING Upon switch-on, the display shows in sequence: - → (ONLY in case of approved program); - instrument model (e.g.: ); - followed by the software code (e.g.: ); - program type: (base); ; ; ; ; ; (no active program);... -
Page 18: Programming Of System Parameters
PROGRAMMING OF SYSTEM PARAMETERS From the weight display, press simultaneously keys MENU and ESC to access the parameter setting. MENU/ENTER: to enter a menu/confirm the data entry. ▲: to modify the displayed figure or menu item. ◄: to select a new figure or modify the displayed menu item. ESC: to cancel and return to the previous menu. -
Page 19: Tare Weight Zero Setting
TARE WEIGHT ZERO SETTING This menu may also be accessed directly from the weight display, holding down the key for 3 seconds. Perform this procedure after having set the THEORETICAL CALIBRATION data. Use this function to set to zero the weight of the empty system after commissioning and then later on to compensate zero variations due to the presence of product residues. -
Page 20: Real Calibration (With Sample Weights)
REAL CALIBRATION (WITH SAMPLE WEIGHTS) After having performed the THEORETICAL CALIBRATION and TARE WEIGHT ZERO SETTING, this function allows correct calibration to be done using sample weights of known value and, if necessary, any deviations of the indicated value from the correct value to be corrected. -
Page 21: Filter On The Weight
FILTER ON THE WEIGHT Setting this parameter allows a stable weight display to be obtained. To increase the effect (weight more stable) increase the value (from 0 to 9, default 4). As seen in the diagram: - By confirming the message, the currently programmed filter value is displayed. - By changing and confirming the value, the weight is displayed and it will be possible to experimentally verify its stability. -
Page 22: Zero Parameters
ZERO PARAMETERS RESETTABLE WEIGHT SETTING FOR SMALL WEIGHT CHANGES (from 0 to max full scale; default: 300; considered decimals: 300 – 30.0 – 3.00 – 0.300): this parameter indicates the maximum weight value resettable by external contact, keypad or serial protocol. -
Page 23: Setting Units Of Measure
SETTING UNITS OF MEASURE These are the available units of measure: kilograms : grams : tons : : pounds : newtons litres : bars : atmospheres : : pieces newton metres : : kilogram metres other generic units of measure not included in the list : If the print function is enabled, the symbol corresponding to the selected unit of measure will be printed after the measured value. -
Page 24: Semi-Automatic Tare (Net/Gross)
- (SEMI-AUTOMATIC ZERO): by closing the input for no more than one second, the weight is set to zero (see section SEMI-AUTOMATIC ZERO (WEIGHT ZERO-SETTING FOR SMALL VARIATIONS)). - (APPROVAL): the instrument starts the batching only after verifying that this input is closed. -
Page 25: Analog Output(Only For Instruments Where This Option Is Available)
ANALOG OUTPUT(ONLY FOR INSTRUMENTS WHERE THIS OPTION IS AVAILABLE) - : it selects the analog output type (4÷20 mA, 0÷20 mA, 0÷10 V, 0÷5 V, ±10 V, ±5 V; default: 4÷20 mA). For the output ±10 V and ±5 V the soldered jumper SW1 must be closed: ▫... -
Page 26: Serial Communication Setting
Minimum and maximum values which can be set for zero and full scale corrections: ANALOG OUTPUT TYPE Minimum Maximum 0÷10 V -0.150 10.200 0÷5 V -0.150 5.500 ±10 V -10.300 10.200 ±5 V -5.500 5.500 0÷20 mA -0.200 22.000 4÷20 mA -0.200 22.000 NOTE: the analog output may also be used in the opposite manner, i.e. - Page 27 - : continuous weight transmission protocol to RIP675, RIP6125C series remote displays; the remote display shows the net weight or gross weight according to its settings (set: = , = , = ). - : continuous weight transmission protocol to RIP675, RIP6125C series remote displays (set: ...
-
Page 28: Rs232 Serial Communication
RS232 SERIAL COMMUNICATION INSTRUMENT RS232 TXD RS232 RXD DB9-F RS485 SERIAL COMMUNICATION INSTRUMENT INSTRUMENT INSTRUMENT max 500 m 24 VDC RS485 + RS485 + RS485 - RS485 - CONVLAU If the RS485 network exceeds 100 metres in length or baud-rate over 9600 are used, two terminating resistors are needed at the ends of the network. -
Page 29: Weight Reading Via Serial Port
WEIGHT READING VIA SERIAL PORT Overview: By transmitting instrument, it means the one connected to the load cell. By receiving instrument, it means the one which receives the weight via serial port. This function allows the instrument to read the weight by another instrument (transmitting instrument) rather than by a load cell, via the RS485 or RS232 serial port. -
Page 30: Rs232 Connection
RS232 CONNECTION Transmitting instrument Receiving instrument TX RX INSTRUMENT Connector Signal RS232: TXD W200 TERMINAL RS232: RXD W200BOX RS232: SHIELD, GND COMMUNICATION SETTING Into the SERIAL COMMUNICATION SETTING section (see receiving instrument manual), select the desired serial port and operation mode: WEIRIP () or WEIMOD (). It’s not possible to enable this function on both serial ports;... -
Page 31: Weimod Mode
WEIMOD MODE Receiving instrument works as if the load cell is directly connected to the instrument. It’s therefore possible to perform calibrations and zero-settings on the receiving instrument. The used protocol is Modbus (the transmitting instrument works as "slave" and the receiving as "master"). Prior to set the ... -
Page 32: Alarm Relay Closure
ALARM RELAY CLOSURE The ALARM relay closing can be enabled or disabled for each of the following alarms: approval contact ();formula not programmed (); insuffcient product (); no decrease in weight (); tolerance (); fall (); the PC did not read the batching data (). : in presence of alarm, the relay is closed (default) : the relay is not closed even in the presence of alarm TEST... -
Page 33: Operation Settings
OPERATION SETTINGS : Select the switch conditions from the SET opening to the CYCLE END closing. - (default: ): time set in constants (). - (default: ): START input closure or ENTER key pressure. - ... -
Page 34: Programming Of Batching Constants
PROGRAMMING OF BATCHING CONSTANTS From weight display press MENU, then press ▲ several times until is displayed and confirm. MENU/ENTER: to enter a menu/confirm the data entry. ▲: to modify the displayed figure or menu item. ◄: to select a new figure or modify the displayed menu item. ESC: to cancel and return to the previous menu. -
Page 35: Fall
FALL By FALL it means the correction of the product amount in fall after the batching STOP. This amount is in addition to the product already batched causing inaccuracy. The instrument is able to anticipate the batching STOP, to reduce this uncertainty, with two possible ways: - AUTOMATIC fall: the instrument automatically calculates the fall;... -
Page 36: Slow
SLOW (from 0 to maximum weight; default: 0): single valid value for all the formulas in place of the preset value. When the weight has reached the SET value minus the value set in this parameter, the slow batching phase starts by the PRESET contact. If the set value is greater than the weight to batch, the batching will be in slow phase. -
Page 37: Number Of Batching Printouts
NUMBER OF BATCHING PRINTOUTS (from 1 to 9; default: 1): number of copies of the batching printout. CHECKING PC PRESENCE (default: ): check for a PC connected to the instrument. - : PC presence check active; the instrument checks for a PC every 10 seconds. If no PC presence is detected, the instrument will display an alarm signal ... -
Page 38: Formulas Programming
FORMULAS PROGRAMMING Select the formula that you wish to program and set and . It is possible to set max 99 formulas. … is NOT displayed if a SLOW value has been set in the constants (). In case of attempt in ... -
Page 39: Batching
BATCHING Note: In case of alarm, the batching may be canceled by pressing the ESC button or by closing the STOP input. After having selected the formula and set the desired number of batching cycles, the first batching cycle starts as follows: 1. -
Page 40: Automatic Loading
10. The system ends the batching (opening of the CYCLE END contact) only after verifying that the safe emptying time has elapsed (); 11. Only if = : the instrument waits for data recording on PC, before being available for a new batching. -
Page 41: Batching Start From External Contact
BATCHING START FROM EXTERNAL CONTACT It is possible to select the required formula via an external selector switch. After selecting the formula, close the START external contact for at least 0.5 seconds and, verified the conditions indicated in section BATCHING, the instrument will perform the selected formula batching. If there is no the formula selection switch (E/EC options), the latest formula entered via the keypad will be batched, or it’s possible to set the required formula in the following menu: press the MENU key for 3 seconds, ... -
Page 42: Consumption
CONSUMPTION If in constants consumption is enabled ( = ), the quantities batched for each formula are stored. … Selecting the following information is displayed: - total quantity consumed for all formulas (divided by 100); - deletion data;... -
Page 43: Alarms
ALARMS : it is displayed if, at batching start, the weight on the scale is lower than the quantity to be batched. Press ESC to return to the weight displaying. alternated with weight display, it means that the automatic load is in progress (it is : activated when the weight is lower than the minimum set and cleared when the weight is equal to or higher than the maximum weight). - Page 44 : this message appears in the sample weight setting, in real calibration, after the fifth sample weight value has been entered. the value set for the parameter is beyond the permitted values; press ESC to quit the : setting mode leaving the previous value unchanged. Examples: a number of decimals is selected for full scale which exceeds the instrument's display potential;...
-
Page 45: Printing Examples
PRINTING EXAMPLES If the printer has been set (see section SERIAL COMMUNICATION SETTING), from the weight display press the PRINT key for less than 3 seconds: - : prints the displayed weight; - : prints the constants (minimum weight, maximum weight, etc.); - : prints one or all of the formulas;... - Page 46 FORMULA PRINTOUT Standard formula printout ( = 0) ----------------------- W200 UNLOAD Addr:01 DATE: 01/10/11 08:30:01 FORMULA: 2000 kg PSET 200 kg Formula printout with slow active ( = 100) ----------------------- W200 UNLOAD Addr:01 DATE: 01/10/11 08:30:01 FORMULA: 2000 kg SLOW 100 kg CONSUMPTION PRINTOUT -----------------------...
-
Page 47: Reserved For The Installer
RESERVED FOR THE INSTALLER MENU LOCKING Through this procedure, it’s possible to block the access to any menu on the instrument. Select the menu that you wish to lock: press ESC and ◄ simultaneously for 3 seconds, the display shows ... - Page 48 PROGRAM SELECTION: confirm and use the arrow keys to select the desired program: : basic program, setpoint management only. : to be used when the loaded weighing system correspond to not loaded cells and vice versa (product increases while weight on load cells actually decreases). : weight remote display program with setpoint.
- Page 49 KEYPAD OR DISPLAY LOCKING Press ESC immediately followed by ▲ hold them down for about 5 seconds (this operation is also possible via the MODBUS and ASCII protocols): - : no lock. - : keypad lock: if active, when a key is pressed the message is displayed for 3 seconds.
- Page 50 CERTIFICAZIONE DEL SISTEMA DI GARANZIA DELLA QUALITÀ DELLA PRODUZIONE email: laumas@laumas.it web: http://www.laumas.com LAUMAS Elettronica S.r.l. Tel. (+39) 0521 683124 - Fax (+39) 0521 681091 Fabbricante metrico Prot. N. 7340 Parma - R.E.A. PR N. 169833 - Reg. Imprese Via 1° Maggio 6 – 43022 Montechiarugolo (PR) Italy PR N.19393 - Registro Nazionale Pile N°...
