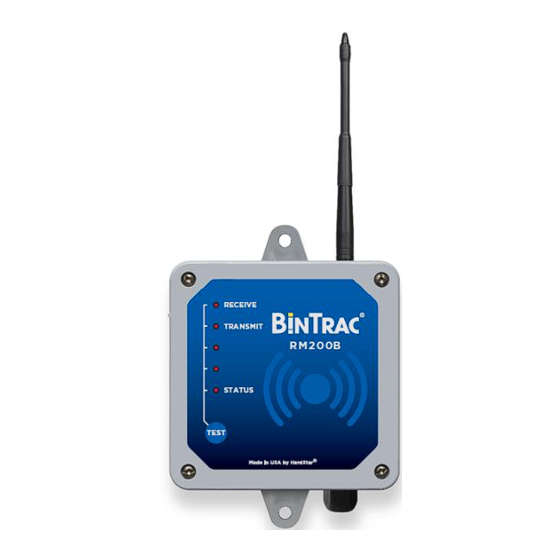

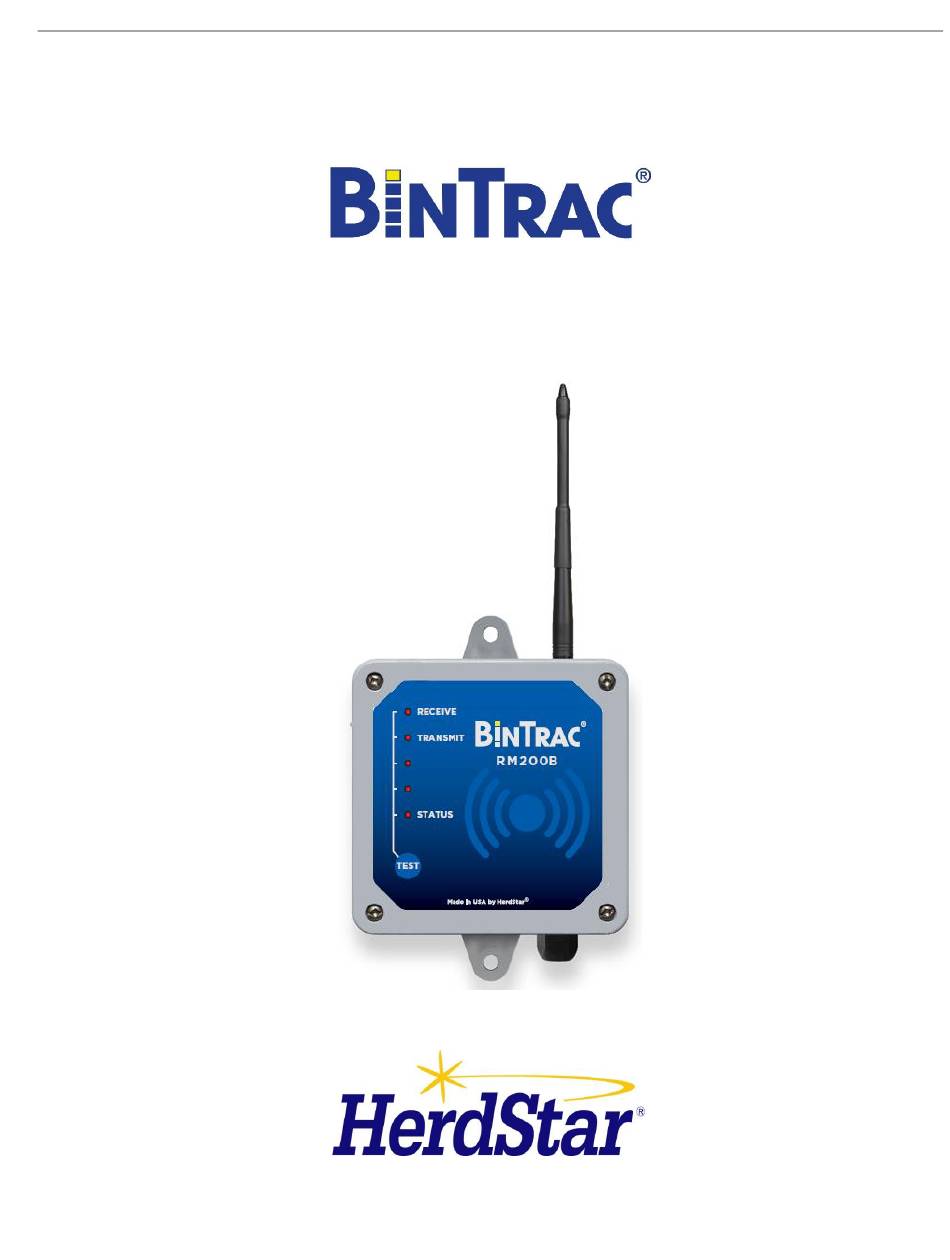

- Page 1 Installation and Operation Manual RM200B BarnTools Interface Version 1.01 Part Number MAN-000029...
- Page 2 Test Button ..................................6 Dip Switches ..................................6 ® HerdStar BinTrac Warranty............................. 7 is a registered trademark of HerdStar, LLC. Copyright © 2023 HerdStar ® , LLC. All rights reserved. Printed in the USA 1400 Madison Avenue Suite 504, Mankato, MN 56001 PH: 507-344-8005 FAX: 507-344-8009 www.herdstar.com...
- Page 3 Installation and Operation Manual Mounting Mount the RM200B outdoors using the mounting holes on the top and bottom of the unit, taking care to position it in an area with the least amount of interference. Wiring Determine which BinTrac Indicator you have, either the BT200 (smaller, 5-digit display) or the BT260 (larger, 6-digit display) and wire the RM200B to the BinTrac Indicator using the information below.
- Page 4 Installation and Operation Manual Remote Wiring - This is used when the BinTrac Indicator is the REMOTE in a MASTER/REMOTE configuration. The COM wires in the RM200B will need to be moved from the COM IN to the COM OUT BT200 BT260 Wire Color...
- Page 5 Installation and Operation Manual BarnTools Gateway Setup In order to pair to the BarnTools Gateway, you must first retrieve the last 6 digits of the serial number from inside the BinTrac Indicator. This can be found on the back side of the faceplate as shown below. BT200 BT260 Open the gear icon in the top right of your screen and...
- Page 6 Installation and Operation Manual Status Lights The status lights on the RM200B indicate the following: • Receive – Currently unused • Transmit – Lights when the unit is transmitting data • Status: LED Condition Description Resolution No Light No power Check power, verify proper wiring Solid On No communication...
- Page 7 12 months or the term of any extended warranty. In the event of a defect in any Products constituting a breach of the warranty provided herein, HerdStar, LLC will at its option either (i) repair or replace such Product free of charge, or (ii) in lieu of repair or replacement, refund to Buyer the original purchase price less the reasonable value of Buyer’s use of the Products.
