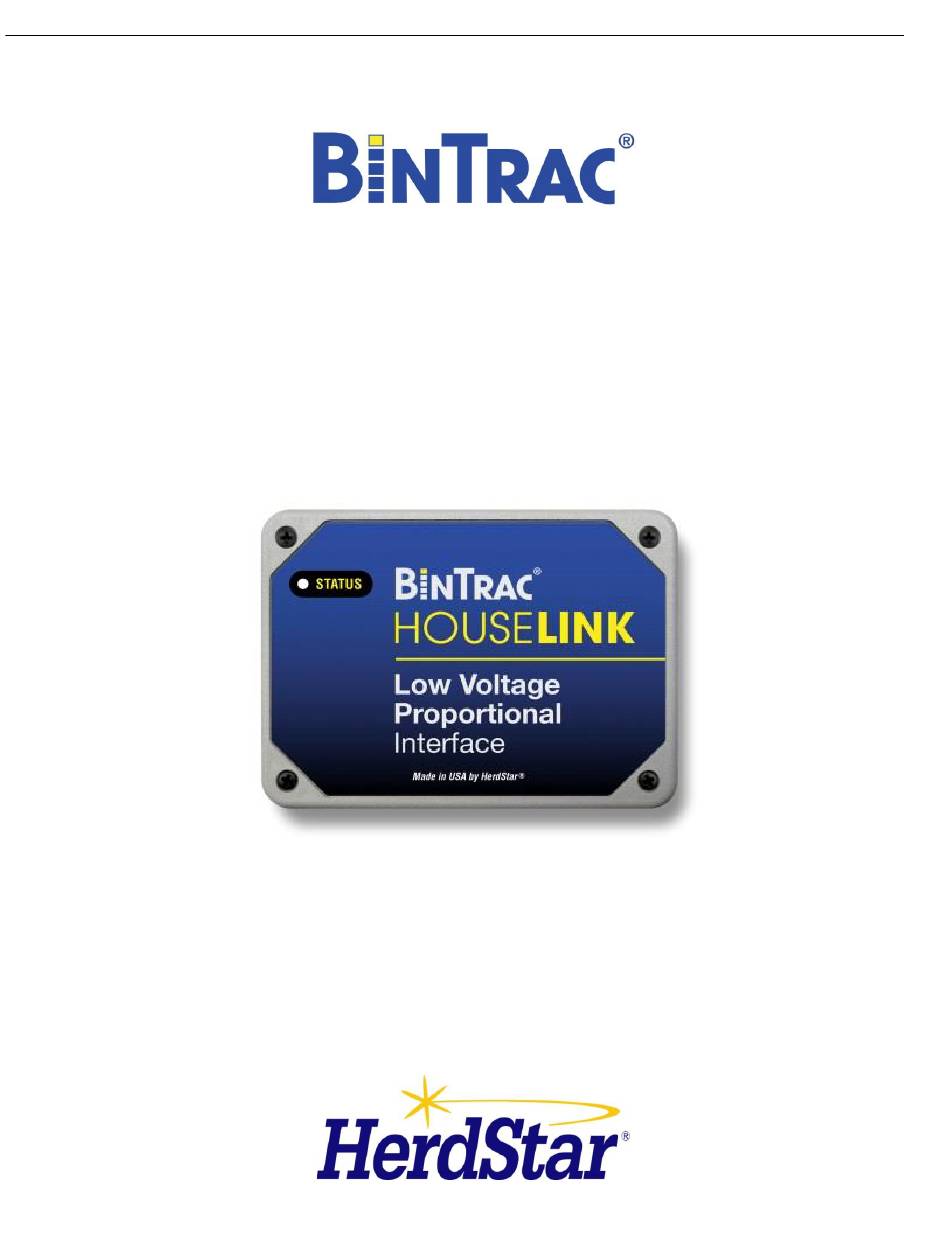

- Page 1 Installation and Operation Manual Installation and Operation Manual HouseLink HL-10P(LV) HouseLink™ HL-10P(LV) 12/5/2022...
- Page 2 Addendum A.................................... 7 Addendum A – Wiring Diagram............................8 is a registered trademark of HerdStar, LLC. Copyright © 2022 HerdStar, LLC. All rights reserved. Printed in the USA 1400 Madison Avenue Suite 504, Mankato, MN 56001 PH: 507-344-8005 FAX: 507-344-8009 www.herdstar.com...
- Page 3 Installation and Operation Manual Description The House Link HL-10P Low Voltage (LV) provides a 2mV/V or 3mV/V output proportional to the weight of the selected bin. The device will connect to the BinTrac Indicator BINS port in parallel with the Smart Summing Box. The BinTrac Indicator transmits digital weight data which is converted to a proportionate millivolt output.
- Page 4 Installation and Operation Manual BinTrac Indicator Setup The BinTrac Indicator must be set up for peripheral devices. Access the SETUP menu on the BinTrac Indicator by pressing and holding the BIN key until appears, then release. If the display changes to , press the UPPER key once to return to...
- Page 5 Installation and Operation Manual Output Specification The displayed weight is relative to the output voltage from the HouseLink HL-10P(LV). The charts below outline the percentage of the total weight based on the output voltage. 2mV/V Output 5.00 4.50 4.50 4.00 4.00 % of Total mV/V...
- Page 6 +/- 0.2% of reading Linearity Error: +/- 0.02% of full-scale Span Temperature Stability: +/- 35 ppm/°C Output Signal Resolution: .092 mV/V Output Signal Ripple: .046 mV/V Serial Communication Interface Type: HerdStar optically isolated (proprietary) HL-10P(LV) Installation Manual Ver 1.0 Part Number MAN-000024...
- Page 7 Installation and Operation Manual Addendum A Initial Setup of the Maximus Control using the HouseLink Proportional Interface HL-10P(LV) The HouseLink Proportional Interface HL-10P(LV) emulates a bin scale allowing the user to connect a BinTrac bin scale system to a Maximus control. An individual HouseLink HL-10P(LV) control is required for each bin that is being connected to the Maximus.
- Page 8 Installation and Operation Manual Addendum A – Wiring Diagram HL-10P(LV) Installation Manual Ver 1.0 Part Number MAN-000024...
