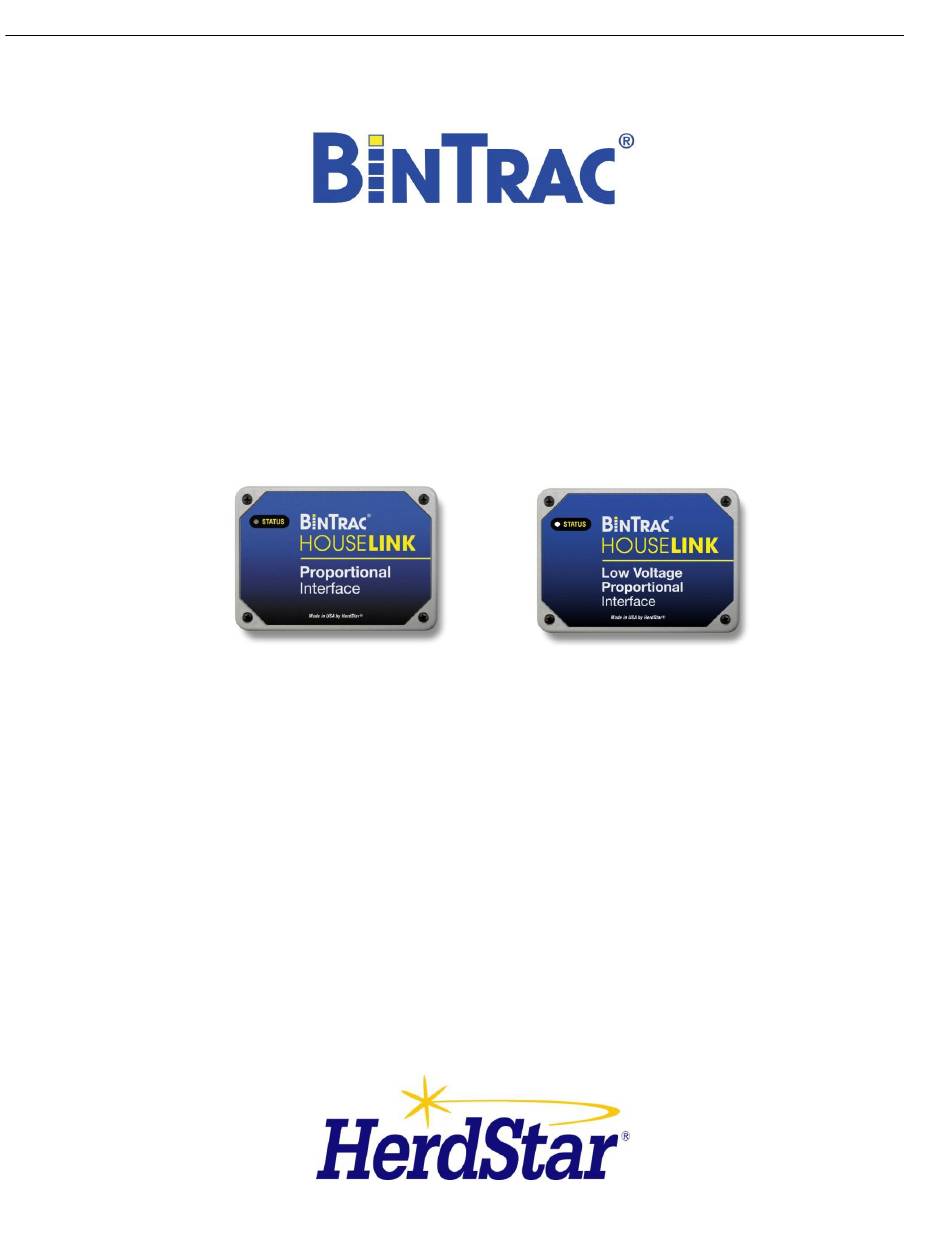

- Page 1 Installation and Operation Manual Installation and Operation Manual HouseLINK HL-10P & HL-10P(LV) HouseLink™ HL-10P/HL-10P(LV) 9/4/2018...
-
Page 2: Table Of Contents
ADDENDUM B ..................................10 ADDENDUM B – WIRING DIAGRAM ......................... 11 is a registered trademark of HerdStar, LLC. Copyright © 2015 HerdStar, LLC. All rights reserved. Printed in the USA 1400 Madison Avenue / Suite 504 / Mankato, MN 56001 PH: 507-344-8005 FAX: 507-344-8009 www.herdstar.com... -
Page 3: Description
Installation and Operation Manual DESCRIPTION The House Link HL-10P/HL-10P(LV) provides a 2mV/V or 3mV/V output proportional to the weight of the selected bin. The device will connect to the BinTrac® Indicator “BINS” port in parallel with the summing box. The BinTrac Indicator transmits digital weight data which is converted to a proportionate millivolt output. -
Page 4: Zero Calibration Feature
Installation and Operation Manual INSTALLATION (continued) The unit has four dip switches that need to be set up for configuration. The settings on the switches S1 and S2 coincide with the bin: Table 2 ZERO Calibration Feature By default, dip switch S3 is in the OFF position. This setting allows the ZERO to be tracked with the BinTrac Indicator. -
Page 5: Status Led Operation
Installation and Operation Manual STATUS LED OPERATION The LED will flash three different ways dependent upon how the unit is operating. SLOW FLASH – This indicates the unit is communicating and operating normally. FAST FLASH – This means the unit is in Test mode. STEADY ON –... -
Page 6: Output Specification
Installation and Operation Manual OUTPUT SPECIFICATION The displayed weight is relative to the output voltage from the HouseLink HL-10P/HL-10P(LV). The chart below outlines the percentage of the total weight based on the output voltage. mV/V Output mV/V Percent Output 5mV/V -1mV/V -25.0% 150.0%, 5mV/V... -
Page 7: Operational Specifications
Linearity Error: +/- 0.02% of full-scale Span Temperature Stability: +/- 35 ppm/°C Output Signal Resolution: .092 mV/V Output Signal Ripple: .046 mV/V Serial Communication Interface Type: HerdStar optically isolated (proprietary) HL-10P/HL-10P(LV) Installation Manual Rev 1.0 Ver. 2.1 Part Number MAN-000011... -
Page 8: Addendum A
Installation and Operation Manual ADDENDUM A Initial Setup of the Rotem Control using the HouseLink Proportional Interface HL-10P The HouseLink Proportional Interface HL-10P emulates a Rotem bin scale allowing the user to connect a BinTrac bin scale system to a Rotem control. An individual HouseLink HL-10P control is required for each bin that is being connected to the Rotem. -
Page 9: Addendum A - Wiring Diagram
Installation and Operation Manual ADDENDUM A - WIRING DIAGRAM HL-10P/HL-10P(LV) Installation Manual Rev 1.0 Ver. 2.1 Part Number MAN-000011... -
Page 10: Addendum B
Installation and Operation Manual ADDENDUM B Initial Setup of the Maximus Control using the HouseLink Proportional Interface HL-10P (LV) The HouseLink Proportional Interface HL-10P(LV) emulates a bin scale allowing the user to connect a BinTrac bin scale system to a Maximus control. An individual HouseLink HL-10P(LV) control is required for each bin that is being connected to the Maximus. -
Page 11: Addendum B - Wiring Diagram
Installation and Operation Manual ADDENDUM B – WIRING DIAGRAM HL-10P/HL-10P(LV) Installation Manual Rev 1.0 Ver. 2.1 Part Number MAN-000011...
