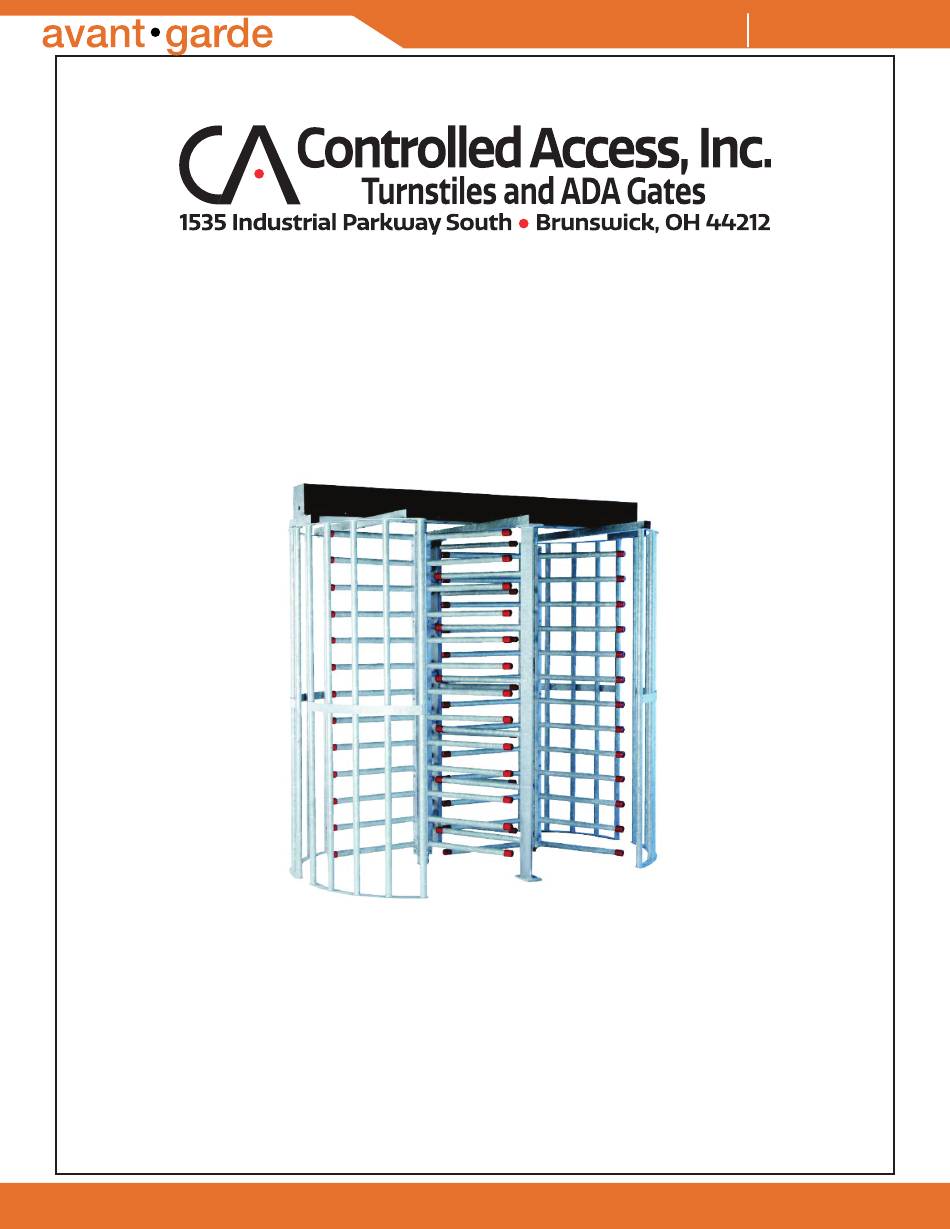

HS400 Series Tandem Full Height Turnstile
Note: Successful turnstile installation depends on reading this manual.
Please keep this service manual after installation. If an installation is done by a construction company
or outside installer, please pass this book along to the end user. This book is required for maintenance,
troubleshooting & repairs.
Service & Installation Manual
Service Manual: 0740 E Gen. 3
125 E. Stansifer Ave
125 E. Stan
ag.inc
Clarksville, IN 47129
888-552-9046

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Controlled Access HS400 Series

  • Page 1 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Note: Successful turnstile installation depends on reading this manual. Please keep this service manual after installation. If an installation is done by a construction company or outside installer, please pass this book along to the end user. This book is required for maintenance, troubleshooting &...
  • Page 2: Important Electrical Information

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual HS400 Series Tandem Full Height Turnstile Service & Installation Manual Important Electrical Information Installation of the control head mechanism into the turnstile requires a grounding-type outlet recep- tacle installed inside of the frame or cabinet through the provided conduit access points.
  • Page 3: Table Of Contents

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Table of Contents Important Electrical Information HS400 Series Tandem Full Height Data Sheet HS400 Series Tandem Full Height Components HS400 Series Tandem Full Height Fastener List Pre-Installation Tips...
  • Page 4 Security Pros and Engineers Black White White Aluminum Blue Blue Green Brown For more than 30 years, Controlled Access has been the globally trusted name in pedestrian control equipment. Made in Ohio and shipped Passage Passage Overall Depth Width Width Height...
  • Page 5 ag.inc 888-552-9046 The High-Security Series HS427-T | HS430-T Full-Height Turnstile (Tandem) | Interior & Exterior Application Applications: Available Finishes: Ideal for controlling orderly flow of foot traffic in • Hot dipped galvanized carbon steel both indoor and outdoor settings • Carbon steel with powder coating (standard color is black/ other colors available upon request) •...
  • Page 6: Hs400 Series Tandem Full Height Components

    HS400 Series Tandem Full Height Turnstile Service & Installation Manual HS400 Series Tandem Full Height Components Each HS400 Series tandem full height turnstile comes with the following components: 1x Main Channel Wrapped in foam & cardboard to protect the cover’s nish.
  • Page 7 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual High Security Series Tandem Full Height Turnstile Fasteners All High Security Series Full Height Tandem Turnstiles Qty 12 - 3/8“-16 x 3” carriage bolts with waxed grade 316 serrated ange nuts...
  • Page 8 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Tandem Full Height Pre-Installation Electrical Tips If the unit is to be electronically controlled, pre-plan how it will be wired. We provide several options for running conduit to each turnstile.
  • Page 9: Wedge Type Concrete Anchor Instructions

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Wedge Type Concrete Anchor Instructions Select a carbide drill bit with a diameter equal to the anchor diameter. Drill hole at least 1/4” deeper than nominal anchor embedment.
  • Page 10: Installation Instructions

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions 1.) If needed, pour a level concrete pad at least 4” thick and 4” greater than the unit’s length and width in each direction. Model speci c diagrams are available if needed.
  • Page 11 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 5.) Assemble cross arms to mainframe using the provided 3/8” x 3” carriage bolts as illustrated below. Ensure cross arms are square to mainframe and that the cross arms are ipped the correct way before attaching.
  • Page 12 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 7.) Following the concrete anchor installation directions, drill each of the marked holes marked for the 3/8” anchors. Be sure to remove debris from holes before installing the anchors.
  • Page 13 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 9.) Install vertical barrier assemblies over the anchors onto the concrete as shown below. The concept is that the left side of the tandem will have one set of arms from each barrier that are raised while the right side will have arms that are lower.
  • Page 14 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 11.) Place assembled mainframe on top of yokes and stationary barriers. Attach barriers and yokes to cross arms by using the provided 14x 2” carriage bolts and serrated flange nuts.
  • Page 15 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 12.) If necessary, level the mainframe by shimming from under the yokes and the barrier. Once level, secure these components to the concrete by adding the nuts to the anchors.
  • Page 16 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 15.) Place rotor assemblies on the roller bearing assemblies. Rotor A will have the lower set of arms (closer to the oor) while rotor B’s arms will be higher. When placed properly, the arms should mesh through the arms on the stationary barriers.
  • Page 17 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 17.) Mount the two control heads to the mainframe using the provided 3/8-16 carriage bolts. Unless equipped with key overrides, it does not matter if the springs are pointed to the left or the right.
  • Page 18 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Mechanical Information All of our turnstiles and ADA gates operate with a mechanism called the 6500 Series Control Head. This sturdy and easy to maintain drive for the turnstile has replaced all previous model control heads.
  • Page 19 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 0740E Gen 3. Controlled Access, Inc. (800) 942-0829 | (330) 273-6185 | Sales@controlledaccess.com 125 E. Stan 125 E. Stansifer Ave Clarksville, IN 47129...
  • Page 20 ag.inc 888-552-9046 125 E. Stan 125 E. Stansifer Ave Clarksville, IN 47129...
  • Page 21: Control Head Con Gurations

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Con gurations The 6500 Series Control Head can be con gured in a number of di erent ways. All units operating with the 6500 Series Control Head self-center with a spring driven indexing pin and hydraulically shock to the home position to prevent damage or injury.
  • Page 22 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Locking Bar Information The 6500 Series Control Head is built to order based on a direction set up sheet sent with each quote. This sheet de nes how each direction of passage functions.
  • Page 23 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Locking Bar Information (Continued) The 6500 Series Control Head can be recon gured from fail lock to fail open and vice versa. Extra components are required to do so.
  • Page 24: Hydraulic Shock & Indexing

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Hydraulic Shock Information The 6500 Series Control Head utilizes a spring loaded index pin for auto-centering the cam while a hydraulic shock o ers counter resistance to slow the rotation down.
  • Page 25 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Electrical Information Each electronic control head comes with a power supply, a programmable logic controller (PLC), limit switches (or optionally, proximity sensors) and solenoids. For safety purposes, it is recommended that you read all literature on the electrical components before attempting to install the control head into a turnstile.
  • Page 26 ag.inc 888-552-9046 6500 Series Control Head w/ XD10 Controller Standard Wiring Diagram Direction 1 Direction 2 Direction 1 Direction 2 Access Control Relay Access Control Relay Override Relay Override Relay N.O. N.O. N.O. N.O. Input Voltage: 100-240 VAC 1 Phase 1.1 - .6A Max 50/60 Hz 24V 2.5A...
  • Page 27 As a side note, indicator lights purchased from Controlled Access, Inc. can also be wired to glow yellow. If desired, this can be used instead of red with the unused white wire on the light’s cable to indicate to pedestrians they require credentials to enter. This is especially handy for multi-lane installations in which some directions are “no passage”...
  • Page 28 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head Limit Switch Information Electronically controlled 6500 Series Control Heads utilize limit switches (or optionally, proximity sensors) in order to detect rotation. Depending on the type of unit (turnstile or ADA gate), the limit switch for a direction may be on the left or the right hand side of the control head.
  • Page 29 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Standard Turnstile Settings The XD10 logic controller on the 6500 Series Control Head has a text based menu screen to adjust settings and view statistics of the turnstile. Pressing the A button will cycle to each of the screens available on the device.
  • Page 30 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Standard Turnstile Testing The XD10 logic controller on the 6500 Series Control Head can be activated by contact closures between 24VDC+ and the relevant input. New technology allows for simpler on-board testing as well.
  • Page 31: Maintenance & Cleaning

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Maintenance & Cleaning To ensure long life on any turnstile, the following maintenance is recommended. Note: these gures are assuming a maximum 75000 passages per year. Turnstiles with heavier tra c should be main- tained more frequently.
  • Page 32 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Verify outlet receptacle installed Power supply is not receiving in mainframe / cabinet is input voltage. operating correctly and that the power supply is plugged in.
  • Page 33 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Access control device output Wire access control to I1 or I2 connected to override inputs. with one-shot timer enabled.
  • Page 34 888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Remove locking bar assembly from control head (easiest way on Mechanical bind between locking Unit remains locked after access...
  • Page 35: Proper Turnstile Usage

    888-552-9046 HS400 Series Tandem Full Height Turnstile Service & Installation Manual Proper Turnstile Usage The 6500 Series Control head is easy to use. There are a few things that users should be trained on and informed of. - In the case of an electronic turnstile, approach the unit and present access control credentials.
  • Page 36: Warranty

    ag.inc 888-552-9046 Warranty Information Seller warrants the goods against defective workmanship and materials provided that Buyer notify Seller within one (1) year after receipt by Buyer of the goods of any claim under this Warranty. The liability of Seller shall be limited to replacing or repairing defective goods returned by Buyer and delivered to the factory of the Seller, transportation charges prepaid.
