GUARDEON G-AIR2-100 Manual

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
G-AIR2-100
manual
40m
60m
80m
100m
1.1m
1.2m
1.8m
2.4m

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-AIR2-100 and is the answer not in the manual?

Questions and answers

Related Manuals for GUARDEON G-AIR2-100

Summary of Contents for GUARDEON G-AIR2-100

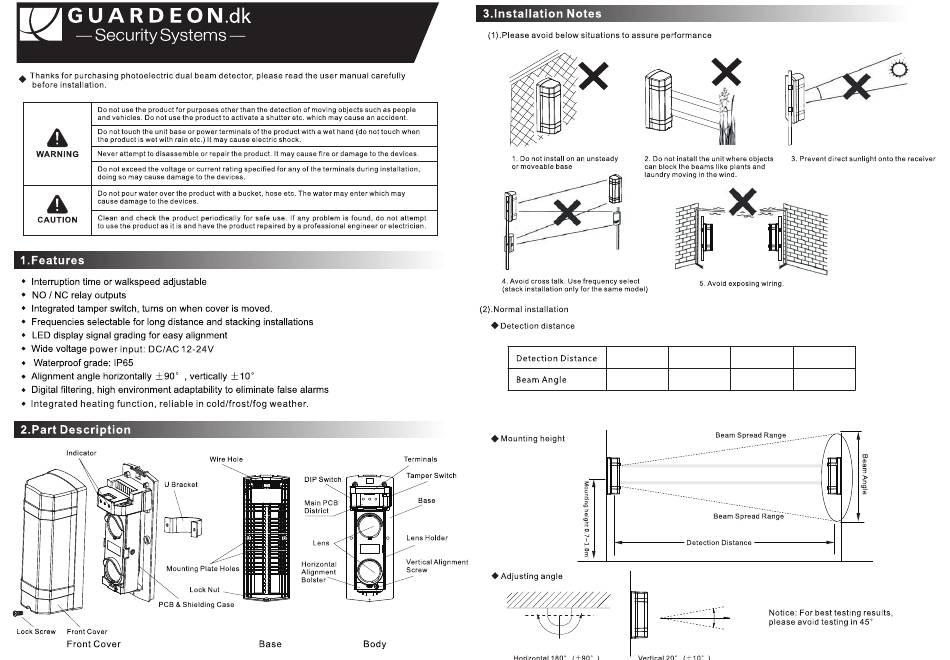

  • Page 1 G-AIR2-100 manual 100m 1.1m 1.2m 1.8m 2.4m...
  • Page 2 3 . Tamper switch (NC) is independent of the circuit, anti-tamper trigger when cover is removed. 3 . Tamper switch (NC) is independent of the circuit, anti-tamper trigger when cover is removed. 4. C relay (30VDC 1.0A max). 4. Attach beam to the base...
  • Page 3 - Continued 1. Set TX and RX same frequency by DIP switches 1&2. 2. Adjust the beams vertically and horizontally, it is well aligned if LED shows “99". 3.Do “walk test” to ensure it’ll activate alarm normally. If failed, please re-do alignment. If alignment keeps failing, please refer to troubleshooting.
