GUARDEON G-OP-SCPIR-K Installation And Use Manual

G-OP-SCPIR-K
CURTAIN OUTDOOR SENSOR DOUBLE TECHNOLOGY
WITH ANTIMASK
INSTALLATION AND USE MANUAL
ver.: 2019-03-01_1_fr
G-OP-SCPIR-K is a dual technology curtain sensor designed to protect access (such as doors,
windows, etc.), balconies, and walls.
G-OP-SCPIR-K is able to create an electronic wall which, if it is crossed, generates an alarm.
The detection is entrusted to a passive infrared sensor and a 24 GHz microwave.
The combination of these two technologies, together with a sophisticated detection algorithm,
allows to discriminate improperly alarms with care.
Equipped with anti-opening tamper, inclinometer and anti-masking, it is supplied with a practical
wall bracket.
G-OP-SCPIR-K supports the innovative Wireless Walk Test and Programming System, composed of
the VIEW SENSOR software and the mod. BT-LINK-S (supplied separately).
The sensor adapts to environmental conditions thanks to a sophisticated thermal compensation
system.
READ CAREFULLY THIS MANUAL BEFORE INSTALL YOUR NEW ALARM
SYSTEM. KEEP THIS MANUAL FOR FUTURE REFERENCE.
ONLY QUALIFIED TECHNICIAN MUST INSTALL THIS DEVICE.
INSTALLER MUST FOLLOW CURRENT REGULATIONS.
THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY IMPROPER USE OF
THE PRODUCT, INCORRECT INSTALLATION OR FAILURE TO COMPLY WITH
INSTRUCTIONS OF THIS MANUAL AND THE LAW REGARDING ELECTRICAL
SYSTEMS.
GUARDEON Security Systems ApS.
1
Vandtårnsvej 100 2860 Søborg

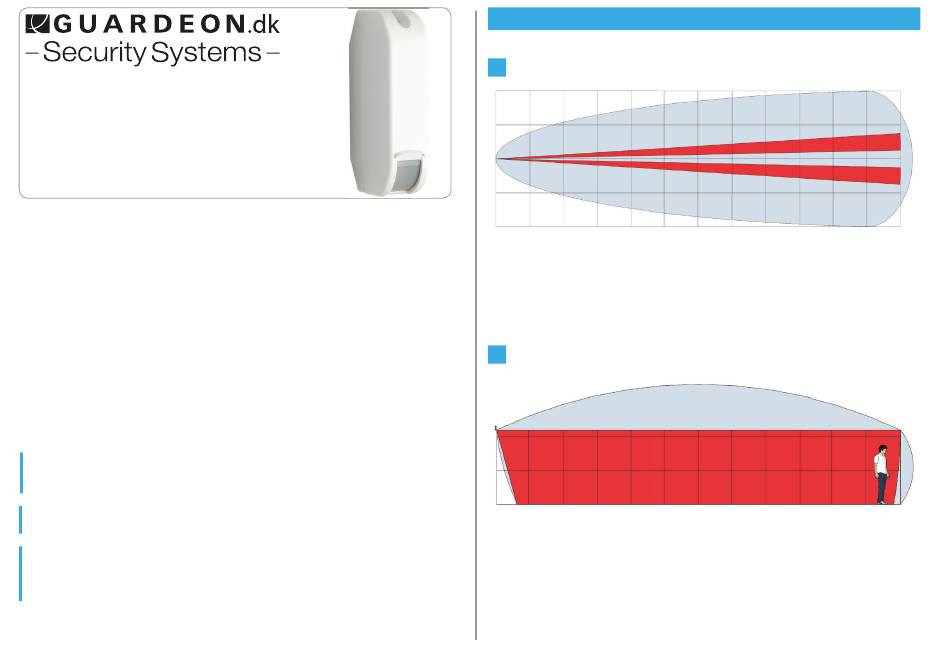

DETECTION AREA

TOP VIEW
The sensor detects over an area with a maximum length of 12 m and a width of 7.5 ° (Fig. A)
A
SIDE VIEW (installation at 2.2m high) (Fig. B)
B
2,2m
To change the detection area, change the inclination of the sensor and adjust the microwave
and infrared ranges.
CVR: 37769568 T: +45 72 17 00 28
12 m
12 m
2
W: guardeon.dk E: info@guardeon.dk
7,5°
