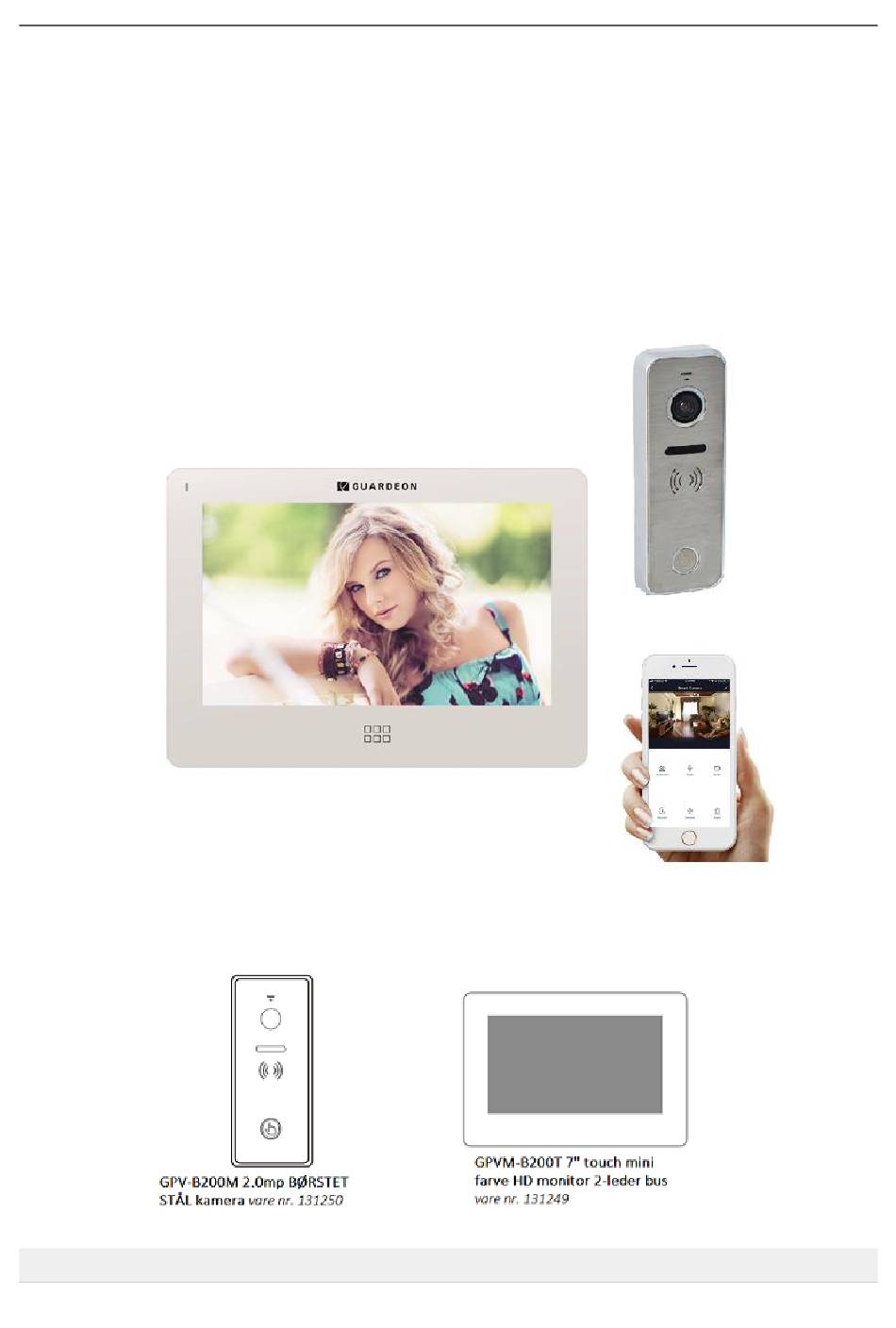

- Page 1 Guardeon Security Systems Operation Guide for Guardeon GPVM-B200T monitor and GPVM-B200T 2 wire door phone kit ENG.MANUAL KIT V.1.0-DEC.2020 VIDEO DØRTELEFON KIT MED APP VARE NR. 13124...
-
Page 2: Table Of Contents
Guardeon Security Systems Thank you for purchasing our products. Please read this User Manual carefully before using this product. The company is not responsible for any safety accidents caused by abnormal operation of the product. V1.2 Index 1. Warnings and cautions ...........................1 2. - Page 3 Guardeon Security Systems 10.1 Device Name(Door Station Name) ....................... 30 10.2 Device NO............................. 30 10.3 Button Address (Set Calling Target) ...................... 30 10.4 Private Device ............................31 10.5 Monitor ..............................31 10.6 Set the Doorbell Unlock Parameters ....................31 10.7 Elevator Control State .
-
Page 4: Warnings And Cautions
1. Warnings and cautions Make sure to follow the instructions to prevent any danger or property losses It indicates prohibition. It indicates disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. здоровью It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. - Page 5 It indicates prohibition. It indicates disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. здоровью It indicates that the plug should be pulled out from the socket. If the socket holes are Make sure that dust or Make sure...
-
Page 6: Name And Function Of Each Part
2. Name and Function of Each Part 2.1 Front and Side View Name Description Speaker Screen Microphone Home Key Enter system main menu TF Card Slot 2.2 Terminal Description ① Power Port (DC 15-30V 1A Max) ② SW1 DIP Switch ③... -
Page 7: Feature And Main Function
3. Feature and Main Function ◆ Hands-free video intercom ◆ Digital signal transmission ◆ Friendly user interface with full touch screen ◆ Nonpolar 2 wire connection, easy for wiring ◆ Easy installation as same as normal/traditional 2 wire analog system ◆... -
Page 8: Wiring Diagram
5. Wiring Diagram 5.1 Use DC24, 1VA Adapter as System Power Supply (5.11) One Monitor with One Door Station (5.12) Two Monitors with One Door Station... - Page 9 (5.13) Four Monitors with One Door Station (Maximum)
- Page 10 (5.14) Three Monitors with Two Door Stations (Maximum) Remark: (1) The same BUS should use the same wire with same specification. (2) Each system can only use 1 adapter power supply. If connect more than 1 adapter power supply, it may cause short circuit and system problem.
- Page 11 Picture ① Picture ② SW1 ON SW1 OFF SW1 DIP Switch is ON by default. (4) For above wiring (5.12) to (5.14), the ROOM ADDRESS in all monitors must be set to the same. All monitors will chime together when pressing the call button on door station. (5) L1 represents the length of the BUS.
- Page 12 5.2 Use DC24V, 1A DIN Rail Power as System Power Supply (5.21) One Monitor with One Door Station (5.22) Two Monitors with One Door Station...
- Page 13 (5.23) Four Monitors with Two Door Station (Maximum)
- Page 14 (5.24) Five Monitors with One Door Station (Maximum)
- Page 15 Remark: (1) The same BUS should use the same wire with same specification. (2) 2-wire BUS terminal match setting: The last monitor on 2-wire BUS should set SW1 to be ON as below picture 1. The other monitors should set SW1 to be OFF as below picture 2. Picture ①...
-
Page 16: System Wiring Diagram
6. Installation 6.1 Installation Guide 6.11 Indoor Monitor Installation (1) Select a right position for installing indoor monitor. The recommend installation height is 1.5-1.6 meters. (2) Drill 2 holes according to the wall bracket structure, and insert 2 expansion columns into the holes. (3) Fix the wall bracket with 2 screws. - Page 17 DC24V 1A Adapter PW03A DIN Rail Power Intercom Inner power Intercom Inner power Cable Type distance L1(m) unlock distance unlock distance (MAX) distance L2(m) L1(m) L2 (m) (MAX) (MAX) (MAX) Parallel pair cable (BVVB) 2*0.5mm Parallel pair cable (BVVB) 2*0.75mm Twisted cable (ZC-RVS)2*0.5mm Twisted cable...
-
Page 18: Operation Guide
7. Operation Guide 7.1 Basic Operation Gesture for Touch Screen Monitor (1) Touch: Choose/Confirm (2) Slide Left: Return to last menu/Turn off screen (3) Slide Up: Go to next page (4) Slide Down: Go to last page 7.2 Call Answering After ringing, the visitor’s image and the icon will be showing on the screen. -
Page 19: Intercom Function
This icon means the communication is good. This icon means no communication. Before the 1st time communication, or if there is problem in communication, this remark will be showing on the screen. Once there’s communication in the system, the remark “?” will disappear. This icon means a micro SD card is detected in good condition. -
Page 20: Add A Door Station To Monitoring Devices List
Touch BROADCAST icon on Dial Menu to enter BROADCAST interface. All monitors with same ROOM ADDRESS will be showing on the screen. You can select any room or ALL ROOMS to make broadcasting. Remark: When make broadcasting, the listeners can't talk to the broadcaster. (3) Call History Touch RECENT icon on Dial Menu to enter call history interface. -
Page 21: Photo Taking And Video Recording
At the same time, the SILENT icon on Main Menu will change to automatically. 7.8 Photo Taking and Video Recording Both auto-recording & manual recording are available. (1) Manual recording At talking or monitoring state, touch to take a picture. Touch , the icon turns red and starts recording, touch again to end recording, and the icon turns back to white color. -
Page 22: Storage Information Checking
screen. Touch to end recording. 8.02 Audio Playback All the audio files are listed on the right side, and there would be a MESSAGE icon behind the unchecked files. Touch the target file to play it. Also users can check the recorded audio files from the main menu: If there are unchecked audio messages, there would be a number on the right top corner of the AUDIO icon , touch AUDIO icon to enter WAVE interface, Touch the target file to play it. -
Page 23: Backup Internal Memory
Remark: (1) DVR only records video, no audio. (2) It requests at least 2G SD card to support DVR function. 16GB and 32GB SD card are recommended. (3) It records with a normal speed (about 25 to 30f/s) when there’s a moving object detected. And it records with a lower speed when there’s no moving object detected (about 3f/s). - Page 24 card reading area on the door panel, the card will be registered after a beep. Same operation to add more access cards. After registered all the cards, please exit REGISTER ACCESS CARD interface. Remark: The registered card information is save in the door station, so you can mange it at any indoor monitor which connects to the door station.
-
Page 25: Wifi And App Control
8.7 WiFi and App Control 8.71 Call Transfer to Mobile 8.711 Connect Monitor to a Wi-Fi Network Touch SETTING icon on Main Menu to enter SETTINGS interface, then touch Wi-Fi to enter Wi-Fi interface. Enable Wi-Fi to enter below interface: Touch CHOOSE A NETWORK to see the Wi-Fi network list, touch the network you want to connect. - Page 26 8.73 Other Parameters Checking or Setting for WiFi function in the monitor 8.731 App Password Setting When you add a monitor to the mobile app, you need to input the DEVICE ID and APP PASSWPRD. If you want to change the app password, touch APP PASSWORD at the Wi-Fi interface, then you can input the new password, touch RETURN to save the new password.
-
Page 27: System Settings
Check if the internet of the mobile and monitor are good. For checking the monitor internet, please go to the main menu, if there is a exclamation mark on the WiFi icon , it means that the router has bad or no internet connection. -
Page 28: Room Address Setting
(1) System Password Reset If you forget the system password, please follow below process to reset. Restart the monitor, touch HOME KEY to enter Main Menu, then touch SETTING icon to enter SETTINGS interface. It does not need password to enter SETTINGS interface for the 1ST TIME when restart the monitor. -
Page 29: Device Name(Door Station Name)
Touch SETTING icon on Main Menu to enter SETTINGS interface, then touch DEVICE CONFIGURATION, then touch DOOEBELL LIST. Touch the Door Station you want to change the settings, touch MODIFY, input password and # to enter MODIFY interface. Then you can set all parameters for the door station. -
Page 30: Elevator Control State
10.63 Gate Lock State If you connect a gate lock to the system, you need to enable this function, and set UNLOCK TIME for it, also you need to set UNLOCK SIGNAL TYPE(NORMAL OPEN or NORMAL CLOSE) according to gate lock type. 10.64 Exit Button Control Type Set exit button control target, it can be gate or door according to the actual installation. -
Page 31: System Setting
addresses of the monitors in the network can not be changed. So if you do not want users to change the monitors address by mistake, please disable this function after installation. 12. System setting Setting item Item Introductions Off by default. If enable it, the monitor will not ring Silent when be called. - Page 32 Begin time End time Record source name: Choose the record device. No protection: No password is required to enter the Settings menu and its sub menu. Partial protection: Need to input password when you enter a password-protected submenu in the Protection Mode Settings menu.
- Page 33 this function, the door station can not the monitored by indoor monitors. Monitor unlock: If enable this function, user can unlock the door or gate by touch UNLOCK icon at monitoring state. Unlock Time: 0.8 seconds to 30 seconds is optional.
-
Page 34: Audio Record /Video/Dvr Function Parameters
For choosing a network for connection the monitor Choose a network with Wi-Fi. App Password The password for adding the monitor into the app. App Unlock password setting The password for unlocking the door/gate by app. Device ID Display the device ID and QR code. Language Default English Backup Internal... - Page 35 seconds is about 300 seconds when time) time) With TF seconds it detects the moving object. card (maximum time per file) and about 48 minutes when it doesn't detect the moving object. 14. Specification Items Content 7 inch touch screen (800*480) Intercom type Hands free Communication...
