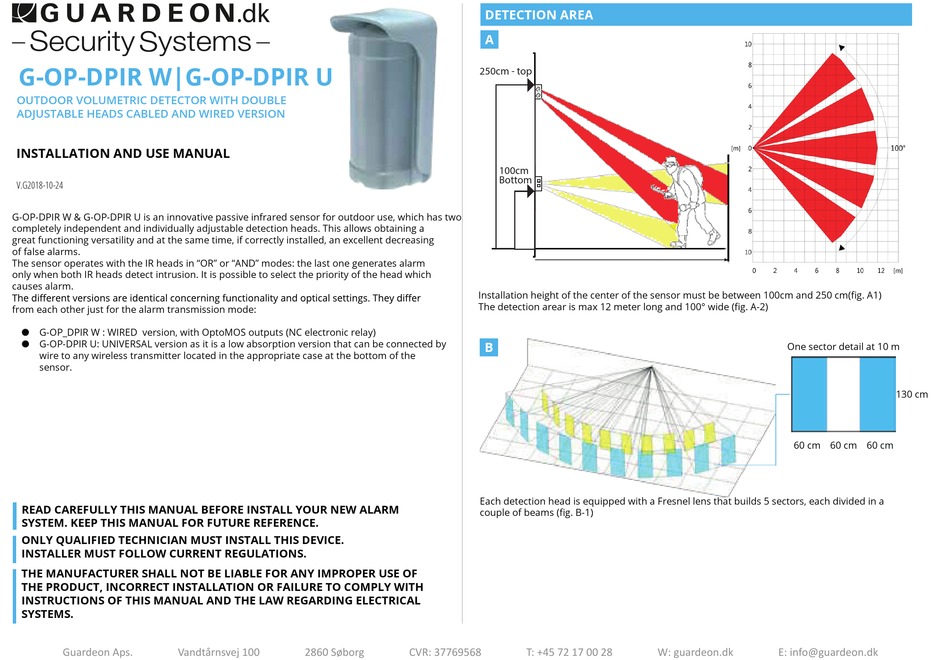

GUARDEON G-OP-DPIR W Installation And Use Manual

G-OP-DPIR W|G-OP-DPIR U
OUTDOOR VOLUMETRIC DETECTOR WITH DOUBLE
ADJUSTABLE HEADS CABLED AND WIRED VERSION
INSTALLATION AND USE MANUAL
V.G2018-10-24
G-OP-DPIR W & G-OP-DPIR U is an innovative passive infrared sensor for outdoor use, which has two
completely independent and individually adjustable detection heads. This allows obtaining a
great functioning versatility and at the same time, if correctly installed, an excellent decreasing
of false alarms.
The sensor operates with the IR heads in "OR" or "AND" modes: the last one generates alarm
only when both IR heads detect intrusion. It is possible to select the priority of the head which
causes alarm.
from each other just for the alarm transmission mode:
 G-OP_DPIR W : WIRED version, with OptoMOS outputs (NC electronic relay)
 G-OP-DPIR U: UNIVERSAL version as it is a low absorption version that can be connected by
wire to any wireless transmitter located in the appropriate case at the bottom of the
sensor.
READ CAREFULLY THIS MANUAL BEFORE INSTALL YOUR NEW ALARM
SYSTEM. KEEP THIS MANUAL FOR FUTURE REFERENCE.
ONLY QUALIFIED TECHNICIAN MUST INSTALL THIS DEVICE.
INSTALLER MUST FOLLOW CURRENT REGULATIONS.
THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY IMPROPER USE OF
THE PRODUCT, INCORRECT INSTALLATION OR FAILURE TO COMPLY WITH
INSTRUCTIONS OF THIS MANUAL AND THE LAW REGARDING ELECTRICAL
SYSTEMS.
Guardeon Aps. Vandtårnsvej 100
250cm - top
Installation height of the center of the sensor must be between 100cm and 250 cm(fig. A1)
The detection arear is max 12 meter long and 100° wide (fig. A-2)
Each detection head is equipped with a Fresnel lens that builds 5 sectors, each divided in a
couple of beams (fig. B-1)
2860 Søborg CVR: 37769568
DETECTION AREA
A
1
100cm
Bottom
B
1
T: +45 72 17 00 28 W: guardeon.dk
2
One sector detail at 10 m
130 cm
60 cm 60 cm 60 cm
E: info@guardeon.dk
