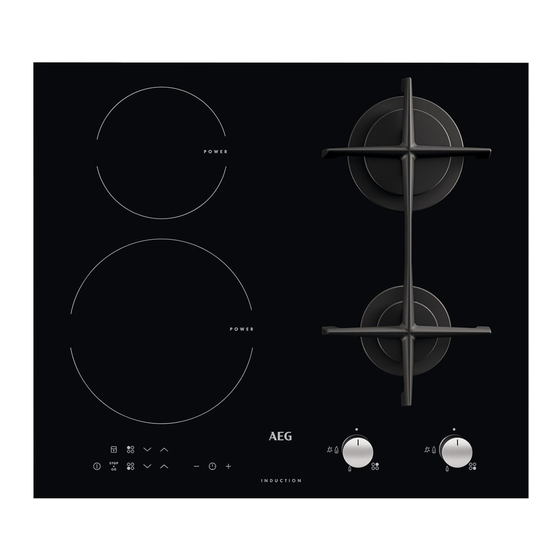

AEG HD634170NB User Manual

Hide thumbs Also See for HD634170NB:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
HD634170NB
Hob

Advertisement

Table of Contents
loading

Related Manuals for AEG HD634170NB

Summary of Contents for AEG HD634170NB

  • Page 1 User Manual HD634170NB...

  • Page 2: Table Of Contents

    10. ENERGY EFFICIENCY....................25 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

  • Page 4: Safety Instructions

    Do not store items on the cooking surfaces. • Metallic objects such as knives, forks, spoons and lids • should not be placed on the hob surface since they can get hot. Do not use a steam cleaner to clean the appliance.
  • Page 5 ENGLISH • Obey the installation instruction • Do not let the electricity mains cable supplied with the appliance. tangle. • Keep the minimum distance from the • Make sure that a shock protection is other appliances and units. installed. • Always be careful when you move the •...
  • Page 6 • This appliance is not connected to a • Used oil, that can contain food device, which evacuates the products remnants, can cause fire at a lower of combustion. Make sure to connect temperature than oil used for the first the appliance according to current time.

  • Page 7: Product Description

    ENGLISH • Do not let acid liquids, for example • Do not clean the burners in the vinegar, lemon juice or limescale dishwasher. remover, touch the hob. This can 2.6 Disposal cause matt patches. 2.5 Care and cleaning WARNING! Risk of injury or suffocation. •...
  • Page 8 3.3 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment field ON / OFF To activate and deactivate the hob. Lock / The Child Safety To lock / unlock the control panel.

  • Page 9: Daily Use

    ENGLISH Display Description Power function operates. There is a malfunction. + digit A cooking zone is still hot (residual heat). Lock / The Child Safety Device function operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch Off function operates.
  • Page 10 Automatic Switch Off WARNING! Do not keep the control The function deactivates the hob knob pushed for more than automatically if: 15 seconds. If the burner • all cooking zones are deactivated, does not light after 15 • you do not set the heat setting after...
  • Page 11 ENGLISH the cooking zone starts to flash quickly. To activate the function the The display shows the remaining time. cooking zone must be cold. To deactivate the function: set the To activate the function for a cooking cooking zone with and touch .

  • Page 12: Hints And Tips

    • The phase has a maximum electricity When you deactivate the loading of 3700 W. hob, you also deactivate this • The function divides the power function. between cooking zones. • The function activates when the total The Child Safety Device electricity loading of the cooking zones exceeds 3700 W.
  • Page 13 ENGLISH 5.2 Diameters of cookware The cooking zone efficiency is related to the diameter of the cookware. The cookware with a smaller diameter than Use cookware with the minimum receives only a part of the diameters applicable to the power generated by the cooking zone. size of burners.

  • Page 14: Care And Cleaning

    Heat setting Use to: Time Hints (min) 1 - 2. Hollandaise sauce, melt: but- 5 - 25 Mix from time to time. ter, chocolate, gelatine. 1 - 2. Solidify: fluffy omelettes, 10 - 40 Cook with a lid on.

  • Page 15: Troubleshooting

    ENGLISH supports are aligned with the centre soapy water and dry them carefully of the burner. before you put them back. 6.3 Cleaning the hob 6.4 Cleaning the spark plug • Remove immediately: melted plastic, This feature is obtained through a plastic foil, and food with sugar.
  • Page 16 Problem Possible cause Remedy An acoustic signal sounds You put something on one Remove the object from the and the hob deactivates. or more sensor fields. sensor fields. An acoustic signal sounds when the hob is deactivated. The hob deactivates.
  • Page 17 ENGLISH Problem Possible cause Remedy There is an error in the hob Deactivate the hob. Remove comes on. because a cookware boils the hot cookware. After ap- dry. Automatic Switch Off proximately 30 seconds, acti- and the overheating protec- vate the zone again. If the tion for the zones operate.

  • Page 18: Installation

    7.3 Labels supplied with the accessories bag Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A) Stick it on Guarantee Card and send C) Stick it on instruction booklet.
  • Page 19 ENGLISH 20 m³. If it is installed in a room of On the end of the shaft, which includes volume less than 5 m³ an air vent of the R 1/2" threaded elbow, adjustment is effective area of 100 cm² is required. If it fixed so that the washer is fitted between is installed in a room of volume between the components as shown in the...
  • Page 20 Rigid connection: WARNING! Carry out connection by using metal rigid Make sure the flame does pipes (copper with mechanical end). not go out when you quickly turn the knob from the 8.5 Injectors replacement maximum position to the minimum position.
  • Page 21 ENGLISH compliance with the current standards and regulations 3. The outlet or omnipolar switch used for connection is easily accessible with the appliance installed. The appliance is supplied with a 3 core flexible power cable. The wires in the cord are coloured as follows: Green and yellow - Earth...
  • Page 22 8.10 Assembly min. 600 mm min. 650mm min. 450mm min. min. 2 mm min. 2 mm < 20 mm > 20 mm min. 500 mm min. 500 mm 30 mm 12 mm 57 mm 12 mm 57 mm 28 mm...

  • Page 23: Technical Information

    ENGLISH min. 12 mm min. 2 mm A) Removable panel CAUTION! B) Space for connections Install the appliance only on Kitchen unit with oven a worktop with a flat surface. The electrical connection of the hob and the oven must be installed separately for 8.11 Possibilities for insertion safety reasons and to let easy remove oven from the unit.
  • Page 24 9.2 Cooking zones specification Cooking zone Nominal power Power function Power function Cookware diam- (maximum heat maximum dura- eter [mm] setting) [W] tion [min] Left front 2300 3300 180 - 210 Left rear 1400 2500 125 - 140 The power of the cooking zones can be...

  • Page 25: Energy Efficiency

    Rapid 0,75 Semi-rapid 0,45 10. ENERGY EFFICIENCY 10.1 Product information according to EU 66/2014 Model identification HD634170NB Type of hob Built-in hob Number of electric cooking zones Heating technology per electric Induction cooking zone Diameter of circular electric cooking Left rear 14.0 cm...
  • Page 26 11. ENVIRONMENT CONCERNS marked with the symbol with the Recycle the materials with the symbol household waste. Return the product to Put the packaging in applicable your local recycling facility or contact containers to recycle it. Help protect the your municipal office.
  • Page 27 ENGLISH...
  • Page 28 www.aeg.com/shop...
