BEDIENUNGSANWEISUNG
mit Montageanweisungen
Instructions for use and installation
Instructions d'utilisation et d'installation
EKIF6940.1
EKI6940.1F
EKI6940.1ED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKIF6940.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kuppersbusch EKIF6940.1

  • Page 1 BEDIENUNGSANWEISUNG mit Montageanweisungen Instructions for use and installation Instructions d’utilisation et d’installation EKIF6940.1 EKI6940.1F EKI6940.1ED...
  • Page 2: Table Of Contents

    Dear customer, Thank you for having chosen a KÜPPERSBUSCH induction hob. In order to install properly your appliance and to make the best use of it, please read this entire instruction manual carefully. SUMMARY SAFETY............................21 ...................... 21 RECAUTIONS BEFORE USING ........................
  • Page 3: Safety

    SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
  • Page 4: Precautions Not To Damage The Appliance

    Precautions not to damage the appliance • Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. • Sand or other abrasive materials may damage ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. •...

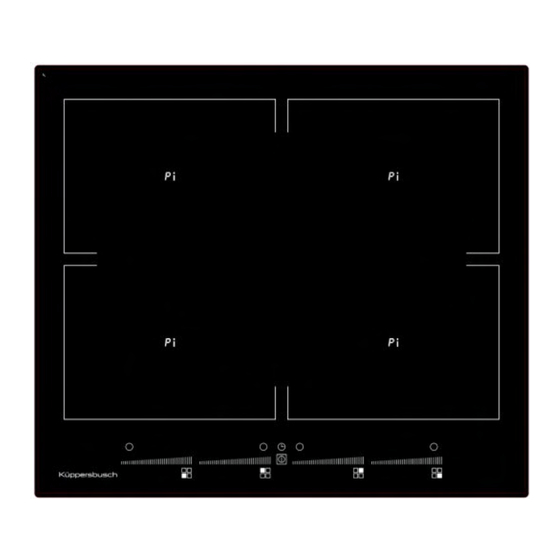

  • Page 5: Description Of The Appliance

    Nominal Booster Type Total Power diameter heating zone Power* Power* detection EKIF6940.1 4 Cooking zones EKI6940.1F 7400 W 2100 W 2600/3700 W 100 mm 220x180 EKI6940.1ED * Average measured power. According to the form, size and quality of the pan, the maximum measured power can exceed these figures.
  • Page 6: Ventilation

    Ventilation The cooling system is fully automatic. The cooling fan starts with a low speed when the heat created by the electronic system reaches a certain level. The ventilation starts its high speed when the hob is intensively used. The cooling fan reduces its speed and stops automatically when the electronic circuit is cooled enough.
  • Page 7: "Slider" Zone: To Set Power And Timer Values

    “SLIDER” zone: to set power and timer values The slider works like a touch key. Once your finger is placed onto the slider, you can slide to the right hand or to the left hand side, in order to adjust the displayed value. As soon as the expected value has been reached, you can remove your finger from the slider.
  • Page 8: Residual Heat Indication

    Residual heat indication After the switching off of a heating zone or the complete stop of the hob, the heating zones are still hot. This is indicated by displaying [ H ] symbol. The symbol [ H ] disappears when the heating zones may be touched safely. As long as the residual heat indicators are on, don’t touch the heating zones and don’t put any heat sensitive object on them.
  • Page 9: Timer

    Timer The timer is able to be used simultaneously with all heating zones and this with different time settings (from 1 up to 99 minutes) for each heating zone. Setting and modification of the cooking time : • Action Control panel Display Select the power level Slide on the “SLIDER“...
  • Page 10: Automatic Cooking

    Automatic cooking All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power for a certain time, and then reduces automatically its power to the pre-selected level. • Start-up : Action Control panel Display Power level selection slide on the “SLIDER“...
  • Page 11: Memory Function

    Memory Function After switching off the hob [ ], it is possible to recall the last settings. • cooking stages of all cooking zones (Booster) • minutes and seconds of programmed cooking zone-related timers • Automatic cooking • Keep warm function The recall procedure is following: •...
  • Page 12: Control Panel Locking

    Mix 4 zones • Action Control panel Display Activate the hob Press display [ [ 0 ] Activate the bridge Press simultaneously on [ 0 ] and 3 x [ the “SLIDER“ of the 2 external cooking zones Increase bridge Slide on the “SLIDER“...
  • Page 13: Cooking Advices

    COOKING ADVICES Pan quality Suitable materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom Not suitable materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain The cookware manufacturers usually specify whether their products are suitable to induction. To check if pans are compatible: •...
  • Page 14: Examples Of Cooking Power Setting

    Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water...
  • Page 15: What To Do In Case Of A Problem

    WHAT TO DO IN CASE OF A PROBLEM The hob or the cooking zone doesn’t start-up: • The hob is badly connected on the electrical network. • The protection fuse cut-off. • The looking function is activated. • The sensitive keys are covered of grease or water. •...
  • Page 16: Installation Instructions

    Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection tape (3). Aeration Fitting - installing: • Cut out sizes of the worktop: EKIF6940.1 598 mm 518 mm 560 mm 490 mm 48 mm EKI6940.1F...
  • Page 17: Electrical Connection

    • Ensure that there is a distance of 40 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side.
  • Page 18 • The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors. • If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations. •...
