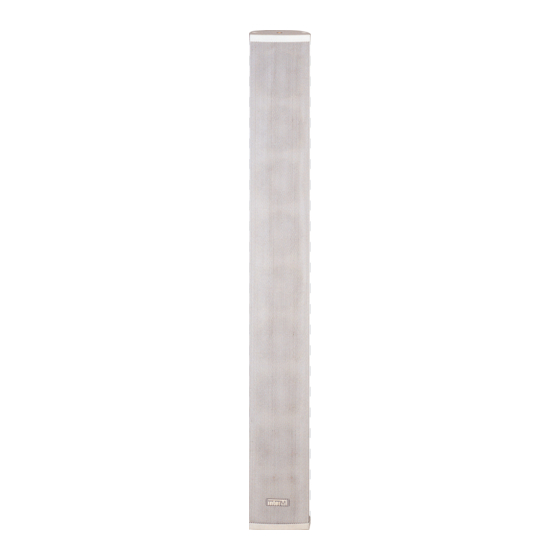

- Page 1 Operation anual ENGLISH olumn Speakers U-610M/620M/630M/640M...
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Setup and Operation ........................3 Connecting your Speaker System ....................4 Frequency Response ........................6 Matching Transformer ........................6 Specifications ..........................7 Service Procedures............................8 Schematic ............................8 Parts List ............................8 Variations and Options .........................8 Warranty ............................8 CU-610M/620M/630M/640M... -
Page 4: Unpacking
COLUMN SPE KERS Unpacking Unpacking lthough your CU-610M/620M/630M/640M is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
To assure absolute long-term reliability these model are used by tweeter of high quality. Setup and Operation Setup and Operation fter unpacking your CU-610M/620M/630M/640M Indoor Column Speaker, attach the speaker to a wall or other secure surface with the supplied mounting bracket. The illustration below shows the preferred method of securing the speaker. -
Page 6: Connecting Your Speaker System
- normally by color-coding, printed markings, or textured ribbing on the cable's jacket material. Failing to do so will cause your speakers to operate out of phase, resulting in significantly reduced low-frequency output from your system. CU-610M/620M/630M/640M... - Page 7 It is important to consider the overall speaker load (impedance) when connecting distributed speaker systems to an amplifier. Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the, case, it is easy to compute the total impedance (or wattage load) that is possible for a given amplifier. CU-610M/620M/630M/640M...
-
Page 8: Frequency Response
COLUMN SPE KERS Frequency Response Frequency Response - CU-610M - CU-620M +120 +120 +110 +110 +100 +100 60 80 100 300 400 600 800 1k 60 80 100 300 400 600 800 1k Frequency(Hz) Frequency(Hz) - CU-630M - CU-640M +120... -
Page 9: Specifications
104° x 87° 20° x 110° Weight (Net) 1.36kg/2.99lb 2.16kg/4.76lb 2.68kg/5.90lb 3.16kg/6.96lb Dimensions 104x290x86mm 104x400x86mm 104x490x86mm 104x580x86mm (Net, WxHxD) 4.1x11.4x3.4in 4.1x15.8x3.4in 4.1x19.3x3.4in 4.1x22.8x3.4in * Design and specification are subject to be changed for the improvement of product quality without pre notice. CU-610M/620M/630M/640M... -
Page 10: Procedures
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
