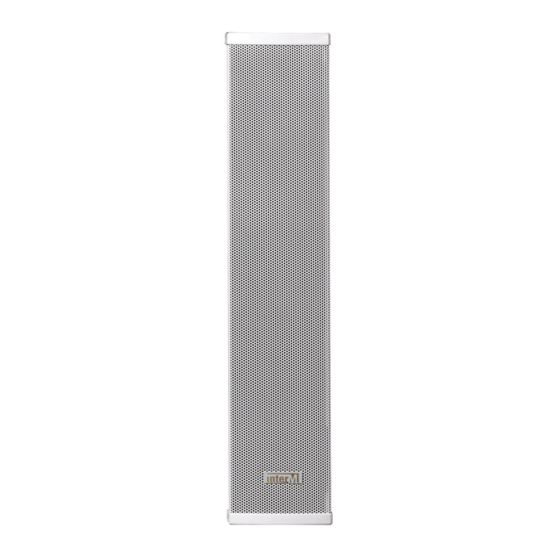

- Page 1 Operation Manual ENGLISH Column Speakers CU-920H/940H...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions......................2 Features ............................3 Setup and Operation ........................3 Connecting your Speaker System ....................4 Polar Pattern Diagram ........................6 Frequency Response ........................7 Matching Transformer ........................7 Specifications ..........................8 Service Procedures............................9 Schematic ............................9 Parts List ............................9 Variations and Options .........................9 Warranty ............................9 CU-920H/940H... -
Page 4: Unpacking
COLUMN SPEAKERS Unpacking Unpacking Although your CU-920H/940H is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
To assure absolute long-term reliability these model are used by tweeter of high quality. Setup and Operation Setup and Operation After unpacking your CU-920H/940H Outdoor Column Speaker, attach the speaker to a wall or other secure surface with the supplied mounting bracket. The illustration below shows the preferred method of securing the speaker. -
Page 6: Connecting Your Speaker System
1KΩ 500Ω 500Ω 250Ω CU-920H CU-940H Maintaining Proper Polarity It is very important to wire your speakers consistently in order to maintain proper polarity. All quality cables are manufactured with clear markings to identify the different conductors - normally by color-coding, print- ed markings, or textured ribbing on the cable's jacket material. - Page 7 Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the, case, it is easy to compute the total impedance (or wattage load) that is possi- ble for a given amplifier. CU-920H/940H...
-
Page 8: Polar Pattern Diagram
COLUMN SPEAKERS Polar Pattern Diagram Polar Pattern Diagram - CU-920H 500Hz 1000Hz 2000Hz 4000Hz - CU-940H 500Hz 1000Hz 2000Hz 4000Hz CU-920H/940H... -
Page 9: Frequency Response
COLUMN SPEAKERS Frequency Response Frequency Response - CU-920H - CU-940H Matching Transformer Matching Transformer CU-920H/940H... -
Page 10: Specifications
COLUMN SPEAKERS Specifications Specifications CU-920H CU-940H Rated Input 500 Ω /1k Ω 250 Ω /500 Ω Impedance Frequency Response 180Hz ~ 15kHz SPL(1W/1m) 90dB 93dB Casing Aluminum Operating temperature -10。 C ~ +40。 C Weight (SET) 2.35kg/5.18lb 3.35kg/7.39lb Dimensions (SET) -
Page 11: Procedures
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 12 NOTE...
- Page 13 MADE IN KOREA www.inter-m.com 2009.8 124928...
