- Page 1 Operation anual ENGLISH olumn Speakers U-620MOV/640MOV...
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions......................2 Features ............................3 Setup and Operation ........................3 Connecting your Speaker System ....................4 Polar Pattern Diagram ........................6 Frequency Response ........................7 Matching Transformer ........................7 Specifications ..........................8 Service Procedures............................9 Schematic ............................9 Parts List ............................9 Variations and Options .........................9 Warranty ............................9 CU-620MOV/640MOV... -
Page 4: Unpacking

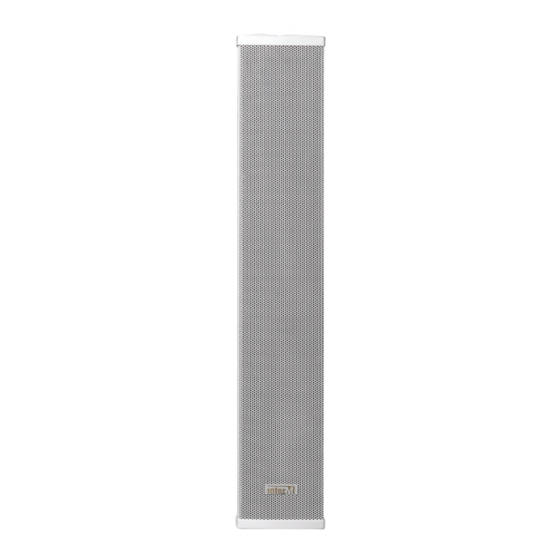

COLUMN SPE KERS Unpacking Unpacking lthough your CU-620MOV/640MOV is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
To assure absolute long-term reliability the gighest grade of horn tweeter driver is used. Setup and Operation Setup and Operation fter unpacking your CU-620MOV/640MOV Outdoor Column Speaker, attach the speaker to a wall or other secure surface with the supplied mounting bracket. The illustration below shows the preferred method of securing the speaker. -
Page 6: Connecting Your Speaker System
Choosing an amplifier that does not have adequate rated power may result in pushing the amp beyond its limits, producing distortion or “ clipping” of the signal. This can irritate the listener and may cause damage to the speaker. Choosing an amplifier that is over-powered can result in over-driving the speaker system. CU-620MOV/640MOV... - Page 7 It is important to consider the overall speaker load (impedance) when connecting distributed speaker systems to an amplifier. Some distributed loudspeakers are marked in load impedance; others show the wattage taps. Whatever the, case, it is easy to compute the total impedance (or wattage load) that is possible for a given amplifier. CU-620MOV/640MOV...
-
Page 8: Polar Pattern Diagram
COLUMN SPE KERS Polar Pattern Diagram Polar Pattern Diagram - CU-620MOV - CU-640MOV CU-620MOV/640MOV... -
Page 9: Frequency Response
COLUMN SPE KERS Frequency Response Frequency Response - CU-620MOV - CU-640MOV Matching Transformer Matching Transformer CU-620MOV/640MOV... -
Page 10: Specifications
COLUMN SPE KERS Specifications Specifications CU-620MOV CU-640MOV Rated Input Impedance 500 /1k 250 /500 Frequency Response 174Hz ~ 15.6kHz (-10dB) 177Hz ~ 18kHz (-10dB) SPL(1W/1m) 92dB (300,400,500,600Hz vg.) 90dB (300,400,500,600Hz vg.) Casing luminum Operating Temperature -10。C ~ +40。C Weight (SET) 2.35kg/5.18lb... -
Page 11: Procedures
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
