Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The float-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
2.1

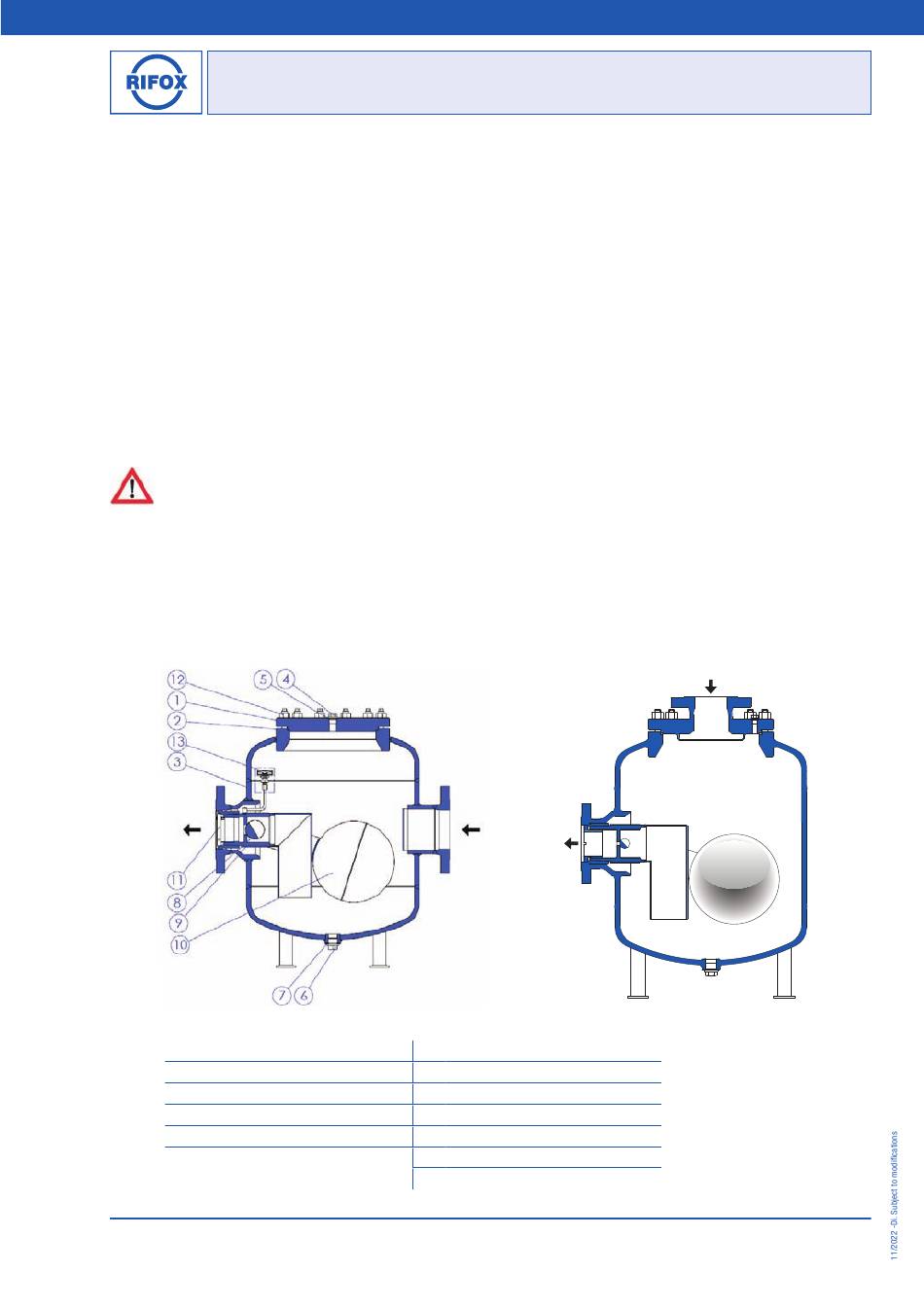

Picture 1: Model WO-1113
Housing cover
1
Housing gasket
2
Housing
3
Control screw
4
Gasket
5
6
Screw plug
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1113
Model: 1113-N
Model: 1118
Model: 1118-N
Float-Controlled Condensate Trap, PN 25
Model WO-1113-N
7
8
9
10
11
12
13
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1118
Gasket
Float control assembly
Supporting body assembly
Float
Holding screw for float control assembly
Housing screws
Capsule venting for screw in
Fon: +49 (0) 421 499 75 - 0
Model EF-1118-N
Internet: www.rifox.de
Email: contact@rifox.de
Breite: 1
Höhe:8,
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Rifox 1113
Summary of Contents for Rifox 1113
- Page 1 Oben Links Breite: 1 278,5 20 Höhe:8, Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 2 ■ In the case of steam applications, automatic venting must be provided (vent jet). Gastight under-level fl oat control (only for gas applications) Oben Links Breite: 170 ■ For gas applications, a gastight under-level fl oat control is nearly exclusively used. Consult with Rifox, if necessary. 278,5 20 Höhe:8,15 Page 2 of 6...
- Page 3 ■ To avoid downtimes, it is recommended to install stop valves with bypass to pipeline, both in front of and behind the condensate trap. ■ For the model WO-1113-(N), remove the transport sefety device (see Picture 5) before start-up and replace it with the control screw provided.
- Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 Oben Links Breite: 1 278,5 20 Höhe:8, Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 6 Oben Links Breite: 170 278,5 20 Höhe:8,15 Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
