Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
2.1
Design of the condensate trap

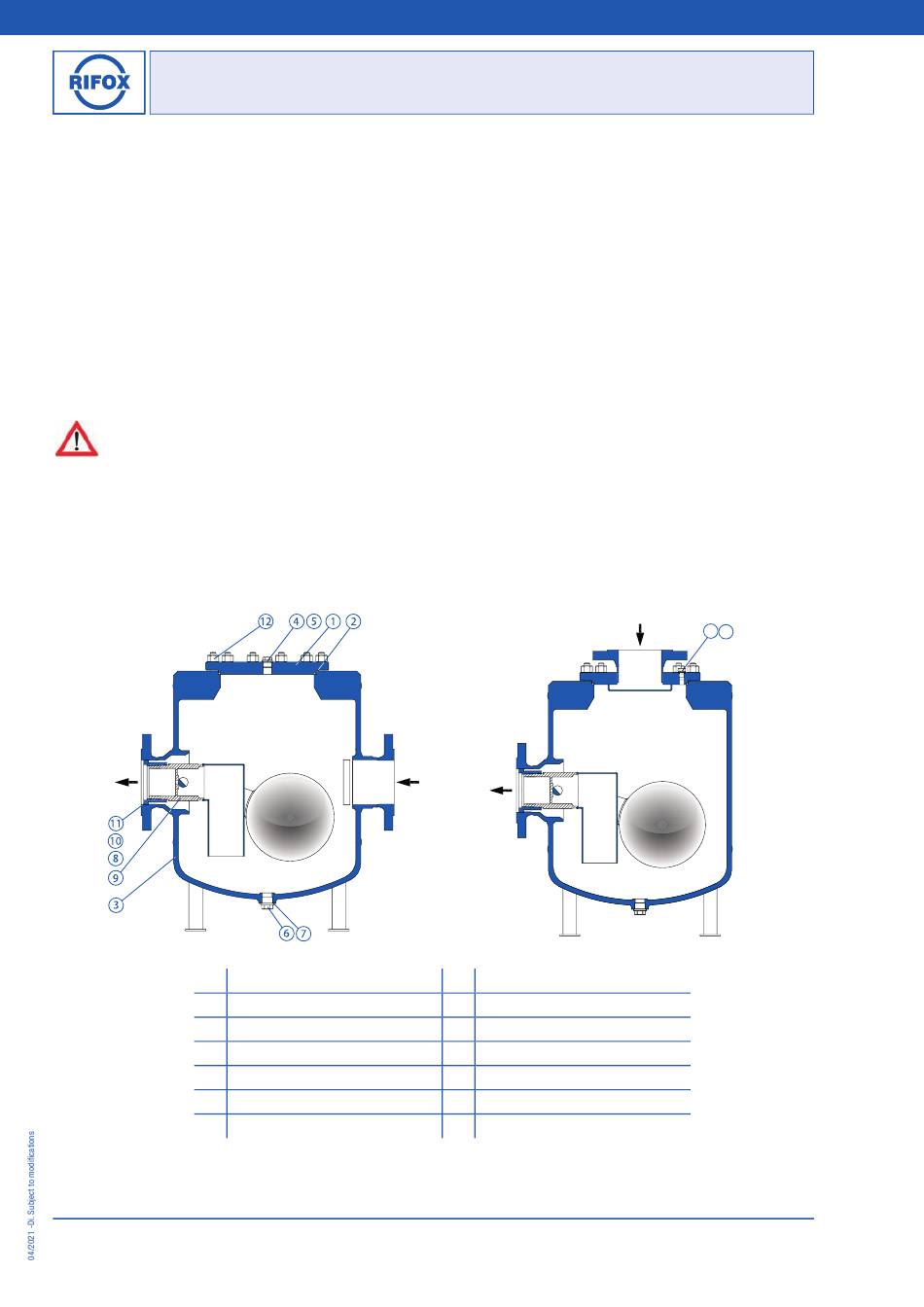

Picture 1: Model WO-1213
1
2
3
4
5
6
7
Page 1 of 6
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1213
Model: 1218
Float-Controlled Condensate Trap, PN 40
Housing cover
Housing gasket
Housing
Control screw
Gasket
Screw plug
Gasket
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1218
8
Float control assembly
9
Supporting body assembly
10
Float
Holding screw for fl oat control assembly
11
Housing screws
12
Control screw
13
Gasket
14
Internet: www.rifox.de
Email: contact@rifox.de
13 14
Advertisement
Table of Contents
Related Manuals for Rifox 1213
Summary of Contents for Rifox 1213
- Page 1 Screw plug Control screw Gasket Gasket Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 2 ■ For gas applications, a gastight under-level float control is nearly exclusively used. In the case of using such float control units, please note separate and additional documents. Page 2 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
- Page 3 ■ To avoid downtimes, it is recommended to install stop valves with bypass to pipeline, both in front of and behind the condensate trap. ■ For the model WO-1213-(N), remove the transport sefety device (see Picture 5) before start-up and replace it with the control screw provided.
- Page 4 (b) together with the rotary valve (v) has to be replaced. The thorough leakage test has to be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 13 14 Picture 8: Model EF-1218 Picture 7: Model WO-1213 Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
- Page 6 A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
