Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9 D-28207 Bremen
Model: 1201-N
Model: 1280-N
Float-Controlled Condensate Trap, PN 40

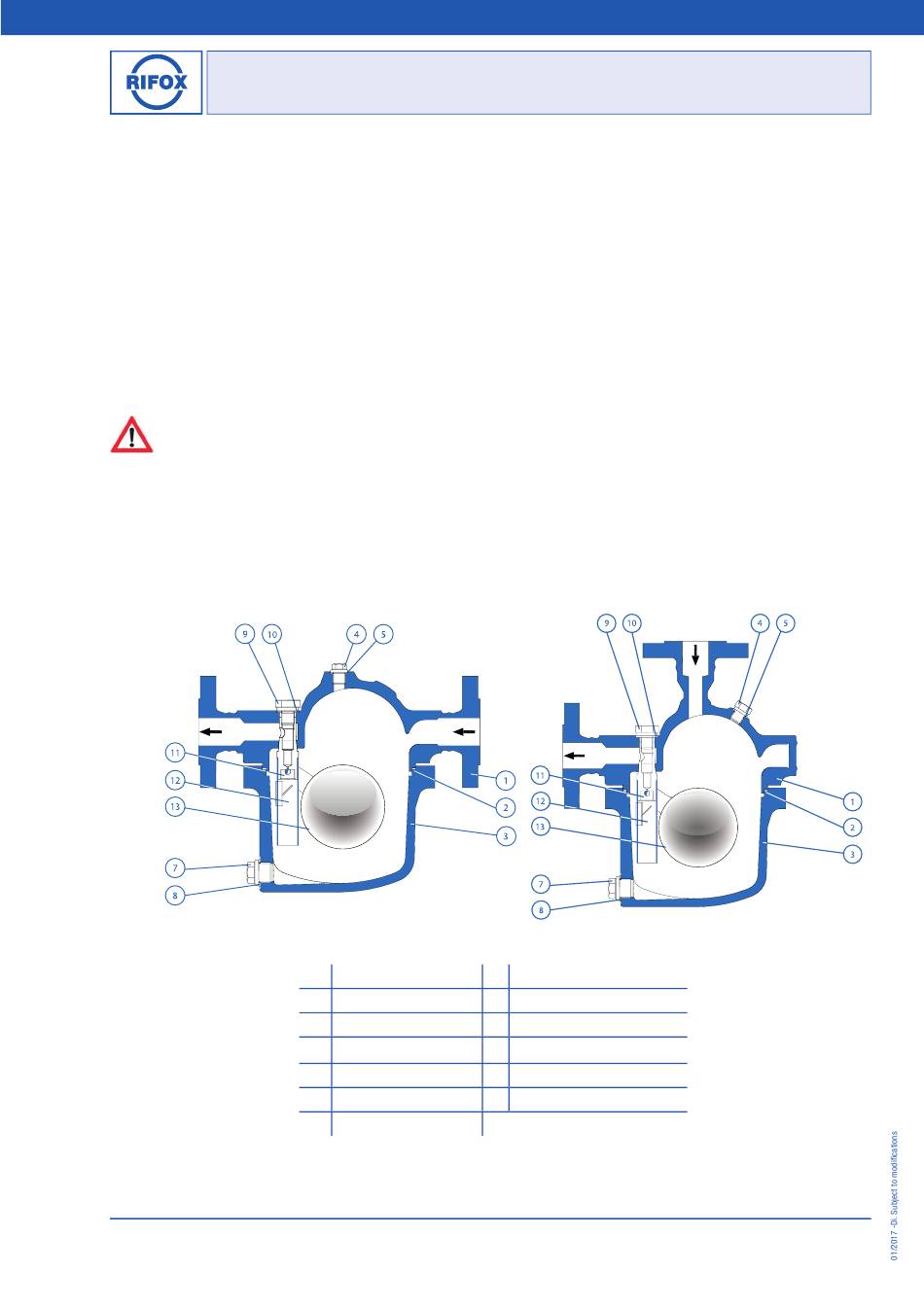

Picture 1: Model 1201-N
Upper part of housing
1
Housing gasket
2
3
Lower part of housing
4
Control screw
5
Gasket
6
Housing screws
7
Screw plug
Fon: +49 (0) 421 499 75 - 0
Fax: +49 (0) 421 499 75 - 40
Picture 2: Model 1280-N
Gasket
8
Supporting screw
9
10 Gasket
11 Float control assembly
12 Supporting screw assembly
13 Float
www.rifox.de
www.rifoxglobal.com
Breite: 1
Höhe:8,
Page 1 of 5
