Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
2.1

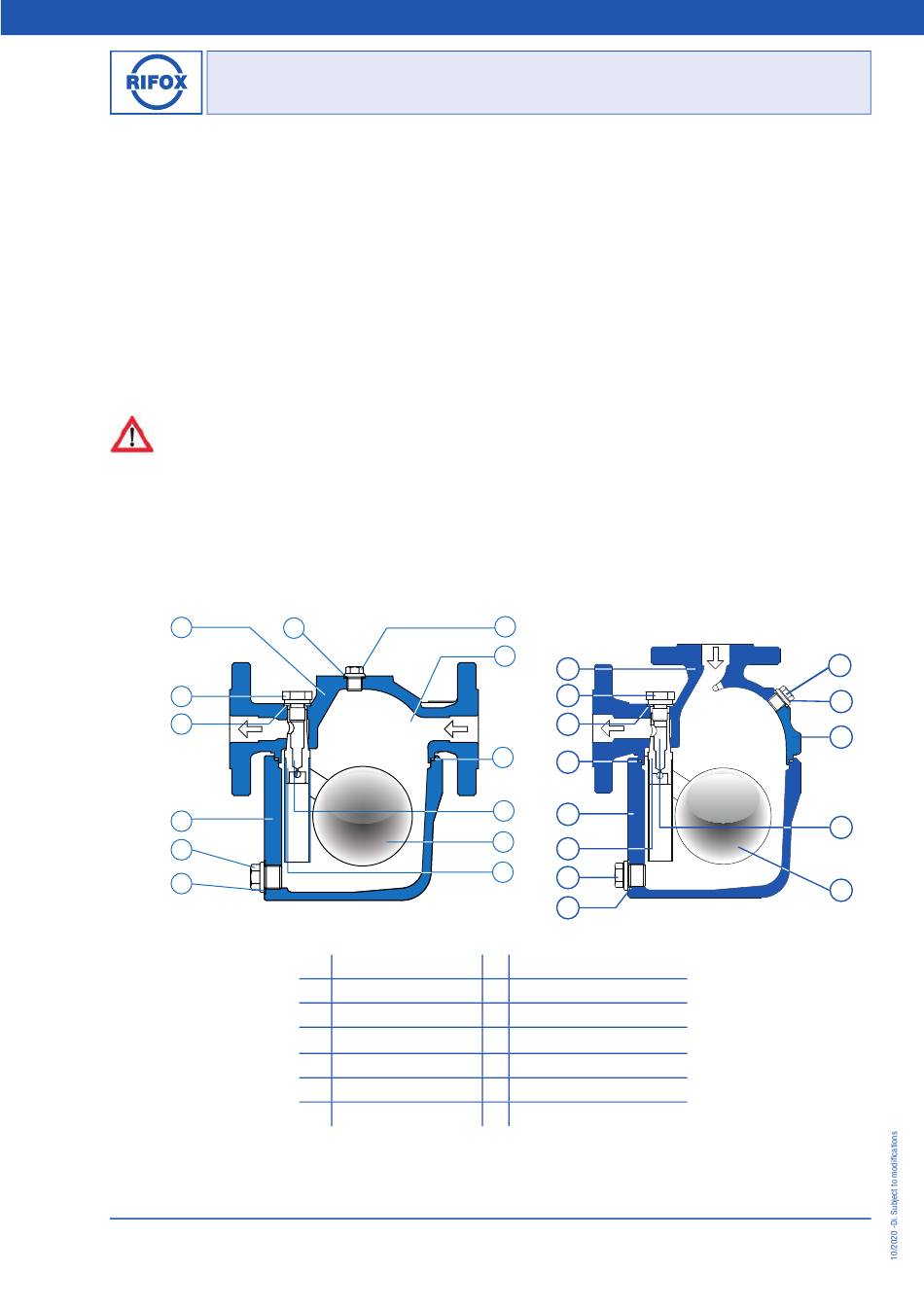

Design of the condensate trap
1
10
12
3
6
13
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1101-N
Model: 1180-N
Float-Controlled Condensate Trap, PN 25
14
Picture 1: Model 1101-N
Upper part of housing
01
Housing gasket
02
03
Lower part of housing
04
Control valve
05
Set screw with nuts
06
Screw plug
07
Float control assembly
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
4
5
1
10
12
2
2
7
3
9
8
8
6
13
08 Supporting body assembly
09 Float
10 Supporting screw
11 Control Screw
12 Gasket
13 Gasket
14 Gasket
Fon: +49 (0) 421 499 75 - 0
Picture 2: Model 1180-N
Internet: www.rifox.de
Email: contact@rifox.de
11
14
5
7
9
Breite: 1
Höhe:8,
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Rifox 1101-N
Summary of Contents for Rifox 1101-N
- Page 1 Oben Links Breite: 1 278,5 20 Höhe:8, Page 1 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 2 ■ In the case of steam applications, automatic venting must be provided (vent jet). Gastight under-level float control (only for gas applications): ■ For gas applications, a gastight under-level float control is nearly exclusively used. Consult with Rifox, if necessary. Oben Links...
- Page 3 When using an angular version (EF) condensate enters from above and can also bring gas into the housing. With an inlet from below, the degassing happen before the trap, the automatic degassing is most effective. Traps with submerged-gastight control units should not be used at above 90°C or its use should be clarified with RIFOX in advance.
- Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 Oben Links Breite: 1 278,5 20 Höhe:8, Page 5 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
