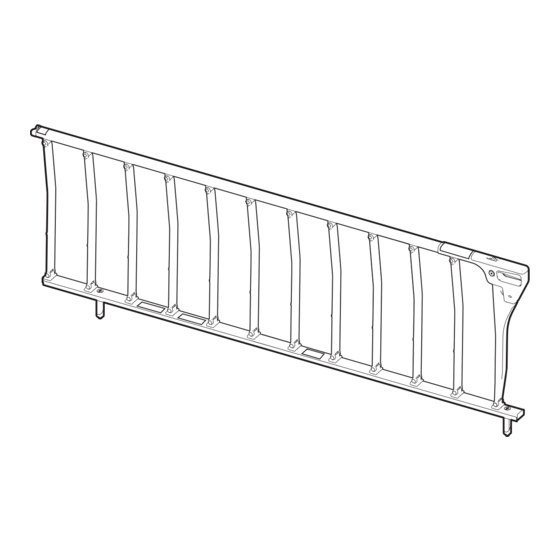

PS-0232S/PS-0232D
Collapsible Bedside Rail
7F13074900A0
Preface
Thank you for purchasing this product.
This instruction manual describes precautions and how to safely use and operate the product.
To ensure safe and proper use of the product, be sure to read the instruction manual before use.
n
The instruction manual should be read not only by the person using a bed with the product for medical
n
treatment but also by the user's caregiver.
After reading this instruction manual, store it in a place that can be easily accessed for later reference.
n
Users and/or patients are requested to report information about any serious incident that occurs within
n
the EU to the regulating authority of the member country of residence.
Serious incident means any incident that directly or indirectly resulted in, may have resulted in, or may
result in any of the following.
● Death of a patient, user, or other person
● Serious temporary or permanent adverse effects on the health of a patient, user, or other person
● Serious public health threat
Some of the descriptions in this instruction manual may differ from the product you have purchased due
n
to model improvements.
Values described for the operation ranges, dimensions, angles, and weights are subject to normal
n
manufacturing tolerances. Except for special cases, words such as approximately and about are
omitted in this instruction manual to improve readability.
If you have any queries, contact your distributor or Paramount Bed.
n
CONTENTS
PARAMOUNT BED CO., LTD.
INSTRUCTION MANUAL
1 INTENDED USE ............................................. 1
2 PART NAMES AND CHECKING PARTS ...... 1
3 SAFETY PRECAUTIONS .............................. 2
4 ATTACHMENT METHOD .............................. 6
5 OPERATION PROCEDURE .......................... 7
MAINTENANCE ............................................. 8
7 LONG-TERM STORAGE ............................... 9
PRODUCTS (BEDS) ...................................... 9
9 PRODUCT SYMBOL DEFINITIONS ........... 10
0 AFTER-SALES SERVICE ............................ 11
Advertisement
Table of Contents
Related Manuals for PARAMOUNT BED PS-0232S
Summary of Contents for PARAMOUNT BED PS-0232S
-
Page 1: Table Of Contents
Values described for the operation ranges, dimensions, angles, and weights are subject to normal manufacturing tolerances. Except for special cases, words such as approximately and about are omitted in this instruction manual to improve readability. If you have any queries, contact your distributor or Paramount Bed. PARAMOUNT BED CO., LTD. -
Page 2: Intended Use
Top pipe Support bar (11) CE label Safety label A Fixing bolt (12) Attachment part A Double lock Fixing shaft (13) Attachment part B Unlock lever Bottom pipe (14) Safety label B Indicator window (10) Product ID label* (15) Safety label C * The model number of the bedside rail is printed on the product ID label. Example: PS0232S indicates PS-0232S. -
Page 3: Safety Precautions
Warnings and precautions requiring special attention by persons using the bedside rail are described on the labels that are affixed to the top pipe and bottom. Do not remove or deface them. If a safety label is removed or defaced, replace it with a new one obtained from Paramount Bed or your distributor (see the back cover). - Page 4 3 SAFETY PRECAUTIONS WARNING Indicates that improper handling by ignoring this indication may cause death or serious injury (broken bones, pressure being applied, or paralysis). Do not operate the bed or bedside rail with part of the body placed in a gap. The body part may get caught in the gap, resulting in injury.
- Page 5 For suitable products, see “8 SPECIFICATIONS AND SUITABLE PRODUCTS (BEDS)” (p. 9). If you have any queries about suitable bed other than those listed or suitable products, contact your distributor or Paramount Bed (see the back cover). Inspect the bedside rail regularly. The product wears out and deteriorates differently depending on the frequency of use and the environment.
- Page 6 3 SAFETY PRECAUTIONS CAUTION Indicates that improper handling by ignoring this indication may cause minor injuries (such as bruises, scratches, or cuts) or property damage. Do not move the bed while holding the bedside rail. This applies excessive force to the bedside rail and may result in damage or deformation.
-
Page 7: Attachment Method
4 ATTACHMENT METHOD Attach the bedside rail in the correct position and orientation, and fix it properly. There is a risk of the user falling off the bed resulting in injury, or the bedside rail hitting the board resulting in the board or bedside rail being damaged or deformed. If the bedside rail is attached in the wrong position or orientation, unexpected gaps may be created and part of the body (especially the head or WARNING neck) may get caught, resulting in injury. -
Page 8: Operation Procedure
5 OPERATION PROCEDURE Raising (to use the bedside rail) When the top pipe is raised from the folded down state, the bedside rail is locked automatically. Check that the indicator window is completely green at this time. Note If even a small amount of red is visible, the bedside rail is not fully locked. Pull up the top pipe hard again so that the window is completely green before use. -
Page 9: Regular Inspection And Maintenance
To ensure safety, inspect the bedside rail regularly, at least once a year. The product wears out and deteriorates differently depending on the frequency of use and the environment. Inspect for loose parts and damage and the operation of the moving parts regularly. If you notice an irregularity or want a detailed inspection, contact your distributor or Paramount Bed (see the back cover). There must not be any damage or deformation. -
Page 10: Long-Term Storage
20 to 90% RH 30 to 75% RH Note Suitable products may be changed due to specification changes or combinations. In addition, some suitable products may not be listed in the table due to new release or discontinuation of sales. For any queries about suitable products, contact your distributor or Paramount Bed. -
Page 11: Product Symbol Definitions
9 PRODUCT SYMBOL DEFINITIONS Symbol Description Symbol Description Be careful not to get a hand or foot Refer to the instruction manual caught in a gap in the bedside rail. Manufacturer Be careful not to let go during * It may be called “Legal operation. -
Page 12: After-Sales Service
Attachment part A and attachment part B are consumable parts. 2. Minimum stock availability period Paramount Bed keeps replacement parts (necessary to maintain performance of the product) in stock for at least 8 years after the discontinuation of production. 3. Questions regarding after-sales service Contact your distributor or contact PARAMOUNT BED CO., LTD. (Location in Japan). Please do not...
