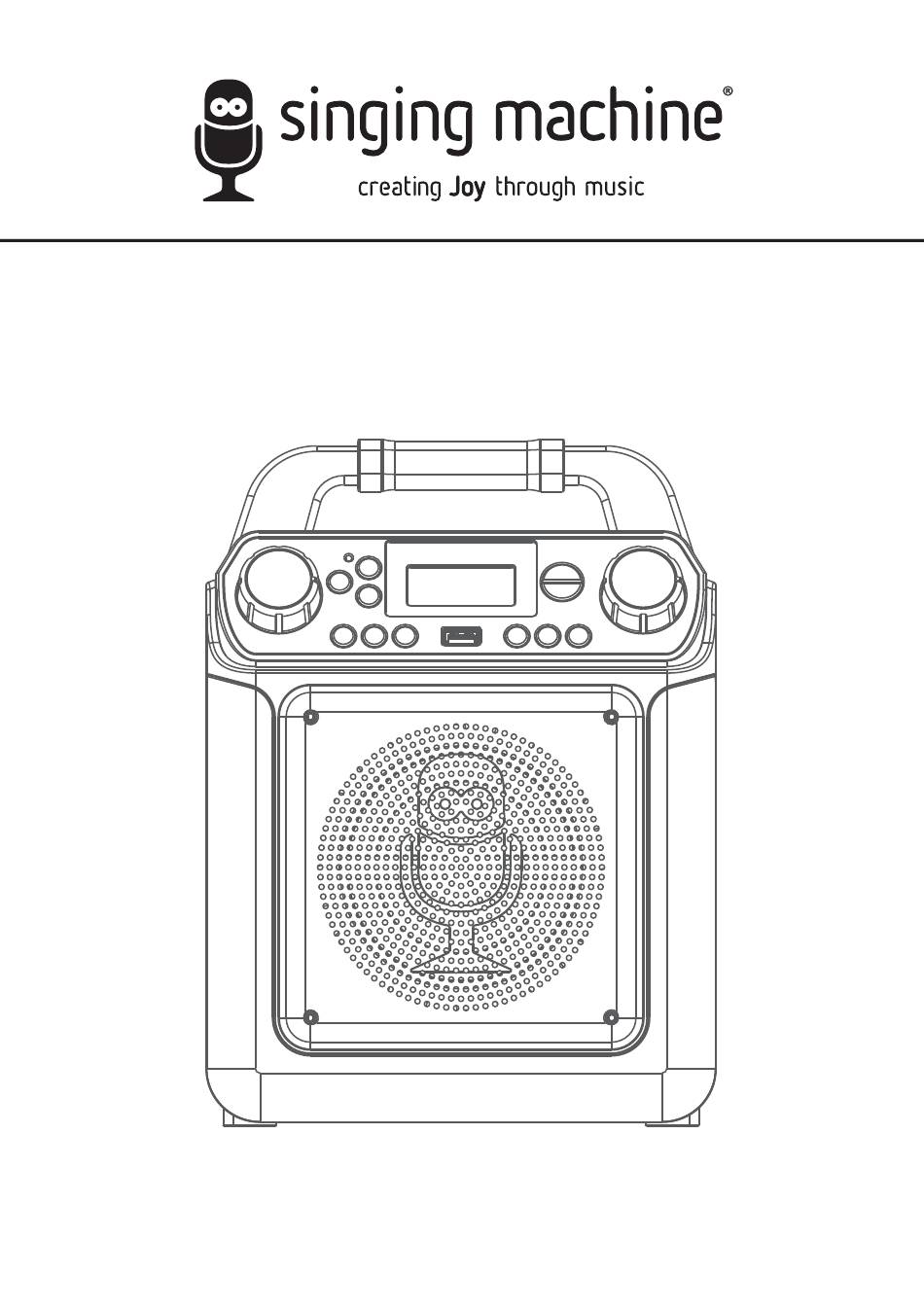

- Page 1 SML2400 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings FCC WARNING: This equipment may generate or use radio frequency CAUTION energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the RISK OF ELECTRIC SHOCK instruction manual. The user could lose the authority to operate this DO NOT OPEN equipment if an unauthorized change or modification is made. - Page 3 Included Please make sure the following items are included. Main Unit Wired Microphone x2 Manual AC Adapter — E2 —...
-
Page 4: Location Of Controls (Front)
Location of Controls (Front) 1. Play/Pause indicator 12. Speaker 2. Record indicator 13. Handle Bluetooth Button 14. Display 15. Favorite indicator 4. Bluetooth indicator 16. FAVOR / Navigation Button ON/STANDBY Button 17. MASTER VOLUME Control 6. MIC VOLUME Control 18. PLAYLIST / Navigation Button 7. -
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 1. MIC 1 Jack 4. HDMI Jack 2. MIC 2 Jack 5. AUX IN Jack 3. Extendable MIC holders 6. DC IN Jack Location of Controls (Playback Display) Song Current Total Time Playlist Song Title Song Record Status Elapsed Time Lead Vocal Status... - Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). NOTE: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having AC 120V, 60Hz. NOTE: Make all connections before connecting to AC power. Inserting Batteries Slide the battery door in the direction the arrow indicate to reveal the battery compartment.
- Page 8 Connection Connecting to AUX IN Jack Connect an external device by using an appropriate cable (3.5mm audio cable not included) as shown. NOTE: See page E20 to select and use the Aux In AUDIO OUTPUT / HEADPHONE JACK function. AUX IN To External Unit Cradle —...
- Page 9 Operation Voice Effects Repeatedly press the VOCAL/VOICE EFFECTS button to select different vocal effect. Display will show: EF0 - OFF EF1 - ECHO EF2 - FEMALE EF3 - MALE EF4 - CHIPMUNK EF5 - ROBOT EF6 - RADIO Speaker Lights When the unit is turned on, the Light mode 1 is automatically activated.
- Page 10 Operation Playing Songs from the USB Connect the unit as described previously. Press the button to turn the unit on. Insert a USB flash drive containing MP3 or MP4 files into the USB port on the unit. We have a large selection of karaoke music available for download through our Karaoke Store.
- Page 11 Operation Playing Songs from the USB (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. NOTE: If connected to a TV, adjust the volume of the TV using its own volume control. Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position.
- Page 12 Operation Playing Songs from the USB (Continued) VOCALS: To sing with the lead singer on the recording, press and hold the VOCAL/VOICE EFFECTS button. To listen to music only, press and hold the VOCAL/VOICE EFFECTS button again. NOTE: The song must be downloaded with separate vocals (aka multiplex recording) in order to utilize the Lead Vocal function.
- Page 13 Operation Playing Songs from the USB (Continued) CREATING THE PLAYLIST: To create a personalized playlist, select a song Added using the buttons. Press the PLAYLIST/ button to confirm the operation; “Added” will appear. Repeat this step to add more songs. Or press the PLAYLIST/ button once during the playback of the song.
- Page 14 Operation Playing Songs from the USB (Continued) PRIORITY: a. Select PRIORITY using the / and buttons then navigate down to the song you want to prioritize. b. Press the FAVOR/ and PLAYLIST/ buttons and the numbers will change to 0001, 0002, etc. According to the numbers displayed the songs will be listed in that order from top to bottom.
- Page 15 Operation Playing Songs from the USB (Continued) CREATING FAVORITES: To create a favorite playlist, select a song using the / and / buttons. Press the FAVOR/ button to confirm the operation; the icon will turn from white to orange. Repeat this step to add more songs.
- Page 16 Operation Using a Bluetooth Device Connect the unit as described previously. Press the button to turn the unit on. Press the button or repeatedly press the LIGHTS/FUNCTION button to select the Bluetooth mode; “bt” will appear in the display. The unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 17 Operation Using a Bluetooth Device (Continued) To control your Bluetooth device from /ENTER button this unit, press the to start playback (music app must be /ENTER button open). Press the during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 18 Operation Using a Bluetooth Device (Continued) R E C O R D Y O U R V O C A L PERFORMANCE: To record your singing as well as the music, press the REC button; recording will begin and the record indicator will start flashing.
- Page 19 Operation Playing Songs from the Recorded Files Connect the unit as described previously; it should be connected to a TV. Press the button to turn the unit on. Repeatedly press the LIGHTS/ FUNCTION button to select the Recordings mode "rEC" will appear in the display.
- Page 20 Operation Playing Songs from the Recorded Files (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. NOTE: If connected to a TV, adjust the volume of the TV using its own volume control. Connect microphone(s) slide the ON/OFF switch on the microphone to the ON position.
- Page 21 Operation Using the AUX IN Jack Connect the unit as described previously. Press the button to turn the unit on. Connect the external unit to the AUX IN Jack on the rear of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 22 Operation Using the AUX IN Jack (Continued) Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. VOICE EFFECTS: Repeatedly press the VOCAL/VOICE EFFECTS button to select from ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or RADIO vocal effect.
- Page 23 Karaoke Store PC Installation The Karaoke Store application can be installed on Microsoft Windows computers running Vista, Windows 7, and Windows 8 or higher. The Karaoke Store application requires connection to the Internet (a high-speed connection is recommended). Insert the USB flash drive (not included) into a powered USB slot on your computer.
- Page 24 Karaoke Store Mac Installation The Karaoke Store application can be installed on Apple Macintosh computers running OS X 10.8 and higher. The Karaoke Store application requires connection to the Internet (a high- speed connection is recommended). Insert the USB flash drive (not included) into a powered USB slot on your computer.
-
Page 25: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/STANDBY button to turn unit on. • Confirm that the AC adapter is connected securely to the back of the unit. •... -
Page 26: Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 27 Copyright © 2023 All Rights Reserved. The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA The Responsible Party Company Name : The Singing Machine Company, Inc. Address : 6301 NW 5th Way, Suite 2900, Fort Lauderdale, FL33309, USA Telephone...
