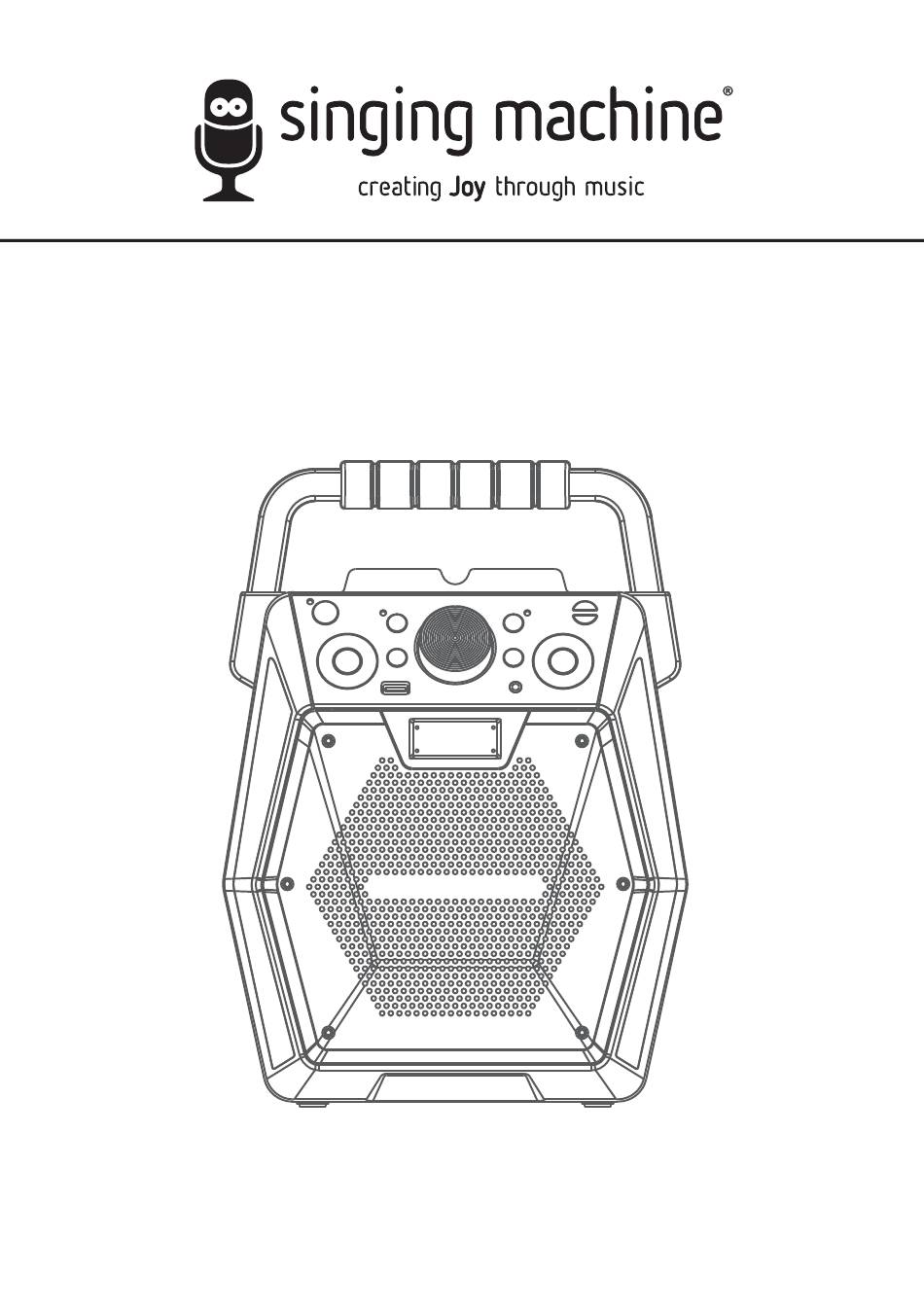

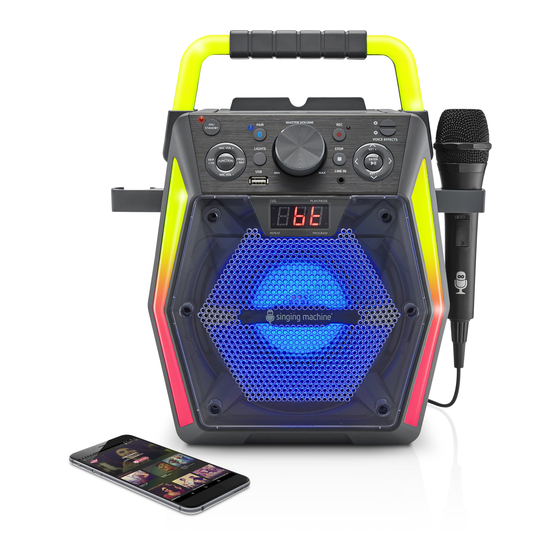

- Page 1 SML2300 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF CAUTION PLUG TO WIDE SLOT AND FULLY INSERT. RISK OF ELECTRIC SHOCK WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS DO NOT OPEN UNIT TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT FCC WARNING: This equipment may generate or use radio frequency energy. - Page 3 Included What’s in the box. Main Unit Wired Microphone AC Adapter Manual Audio/Video Cables — E2 —...
- Page 4 Location of Controls (Top/Front) VOICE EFFECTS MASTER VOLUME 15. MIC VOL + Button (Navigation / DOWN Button Control Skip +)Button 16. SKIP +10 Button VOICE EFFECTS UP Handle 24. ENTER/ (Play/ 17. FUNCTION Button Button Pause) Button PAIR Button 18. MIC VOL – Button Open/Close Tab 25.
-
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 1. Mic 1 Jack 5. Right Audio Out Jack 2. Mic Holders 6. Left Audio Out Jack 3. Mic 2 Jack 7. DC In Jack 4. Video Out Jack 8. Battery Compartment Location of Controls (Display) PLAY/PAUSE PROGRAM REPEAT... - Page 6 (White and Red) to the AUDIO OUT jacks located on the back AUDIO OUT VIDEO OUT (white - L (yellow) of the Singing Machine. red - R) REAR VIEW OF TV VIDEO AUDIO INPUT INPUT...
- Page 7 SML283-eng and fra.V4_Layout 1 11/7/16 8:37 AM Page 3 Connection MAKING THE CONNECTIONS Connecting to AC Power Insert the AC power cord into a INSTALLATION OF BATTERIES conveniently located AC outlet having 120V AC, 60Hz. “C” size “C” size UM2 1.5V UM2 1.5V Note: Make all connections before connecting...
- Page 8 Operation Connecting to Line In Jack Connect an external device by using an appropriate cable (3.5mm audio cable not included) as shown. Note: To External Unit AUDIO OUTPUT See page E19 to select and use the Line In / HEADPHONE JACK LINE IN function.
- Page 9 Operation Playing a CD This unit is designed to play CDs and CDGs bearing the identification logo respectively. If the disc does not conform to the standard, it may not play properly. Notes: • What is a CD+G? A CD+G (CD+Graphics) is the standard format for most karaoke discs that will display the words on the screen.
- Page 10 Operation Playing a CD (Continued) Press the ENTER/ button to start playback; if listening to a CD+G file, the image and lyrics will appear on the TV screen (if connected). When a CDG disc is inserted, the CDG indicator will light.
- Page 11 Operation Playing a CD (Continued) SKIP: Advance or go back one track by pressing the (Navigation / Skip -) button or (Navigation / Skip +) button respectively. REPEAT: During playback, press the PROG/REP button once to repeatedly play the selected song; the Repeat indicator will blink.
- Page 12 Operation Playing a CD (Continued) Program Notes: • Press the STOP button TWICE to stop and clear the program. • If more than 20 tracks are attempted to be programmed, “FUL” will appear in the display. PAUSE: During playback, if you wish to pause the disc momentarily, press the ENTER/ button;...
- Page 13 Operation Playing Songs from the USB Connect the unit as described previously; it should be connected to a TV. Press the ON/STANDBY button to turn the unit on; the power indicator will turn on. Insert a USB flash drive into the USB slot on the unit so it faces upward.
- Page 14 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Press the MIC VOLUME + or – button as desired, which will affect both microphones. SING-ALONG WITH BUILT-IN VOICE CHANGERS There are 6 built-in voice changers in this unit.
- Page 15 Operation Playing Songs from the USB (Continued) REPEAT: During playback, press the PROG/REP button once to repeatedly play the selected song; the repeat indicator will blink slowly. Press the PROG/REP button a second time to repeatedly play the selected folder; the repeat indicator will blink rapidly.
-
Page 16: Operation
Operation Playing Songs from the USB (Continued) PAUSE: During playback, if you wish to pause the music momentarily, press the ENTER/ button; the Play/Pause indicator will blink. Press again to resume normal playback. Press the STOP button to stop playback. Press the ON/STANDBY button to turn the unit off. - Page 17 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/ STANDBY button to turn the unit Repeatedly press the FUNCTION button to select the Bluetooth; “bt” will appear in the display. The unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 18 Operation Using a Bluetooth Device (Continued) The Bluetooth indicator will light solid blue and a chime will sound. Notes: • If your Bluetooth prompts you for a passcode during the pairing process, please enter “0000” to connect. • On some Bluetooth devices, once pairing is complete, select your Bluetooth device as “Use as Audio Device”...
- Page 19 Operation Using a Bluetooth Device (Continued) SING-ALONG WITH BUILT-IN VOICE CHANGERS There are 6 built-in voice changers in this unit. Press the VOICE EFFECTS UP or DOWN button to select different vocal effects. Display will show: EF0 - NONE EF1 - ECHO EF2 - FEMALE EF3 - MALE EF4 - CHIPMUNK...
- Page 20 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/ STANDBY button to turn the unit Connect the external unit to the LINE IN Jack on the front of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 21 Operation Using the LINE IN Jack (Continued) Press the MIC VOLUME + or – button as desired, which will affect both microphones. SING-ALONG WITH BUILT-IN VOICE CHANGERS There are 6 built-in voice changers in this unit. Press the VOICE EFFECTS UP or DOWN button to select different vocal effects.
- Page 22 • Remove (eject) the USB flash drive from your Select and purchase your favorite computer. karaoke music from the Singing Turn on the Singing Machine and connect the USB Machine Download Store. flash drive. Download your selected purchase(s) from the Singing Machine Digital •...
-
Page 23: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/STANDBY button to turn power on. • Confirm the AC adapter is connected securely to the back of the unit. •... -
Page 24: Specifications
Specifications AUDIO Output Power ....................8 Watts (RMS) 10% THD Output Impedance ........................8 Ohms CD SECTION Frequency Response..................... 100Hz - 20kHz Signal-to-Noise Ratio ....................50dB (A-WTD) Number of Programs ............20 Step Random Access Programming BLUETOOTH Bluetooth Version ..........................V5.0 Working Distance ..........Up to 30 feet/10 meters measured in open space Format .............................. - Page 25 Copyright © 2020 - All Rights Reserved. The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA U.S. Representative Company Name : The Singing Machine Company, Inc. Address : 6301 NW 5th Way, Suite 2900, Fort Lauderdale, FL33309, USA Telephone...
