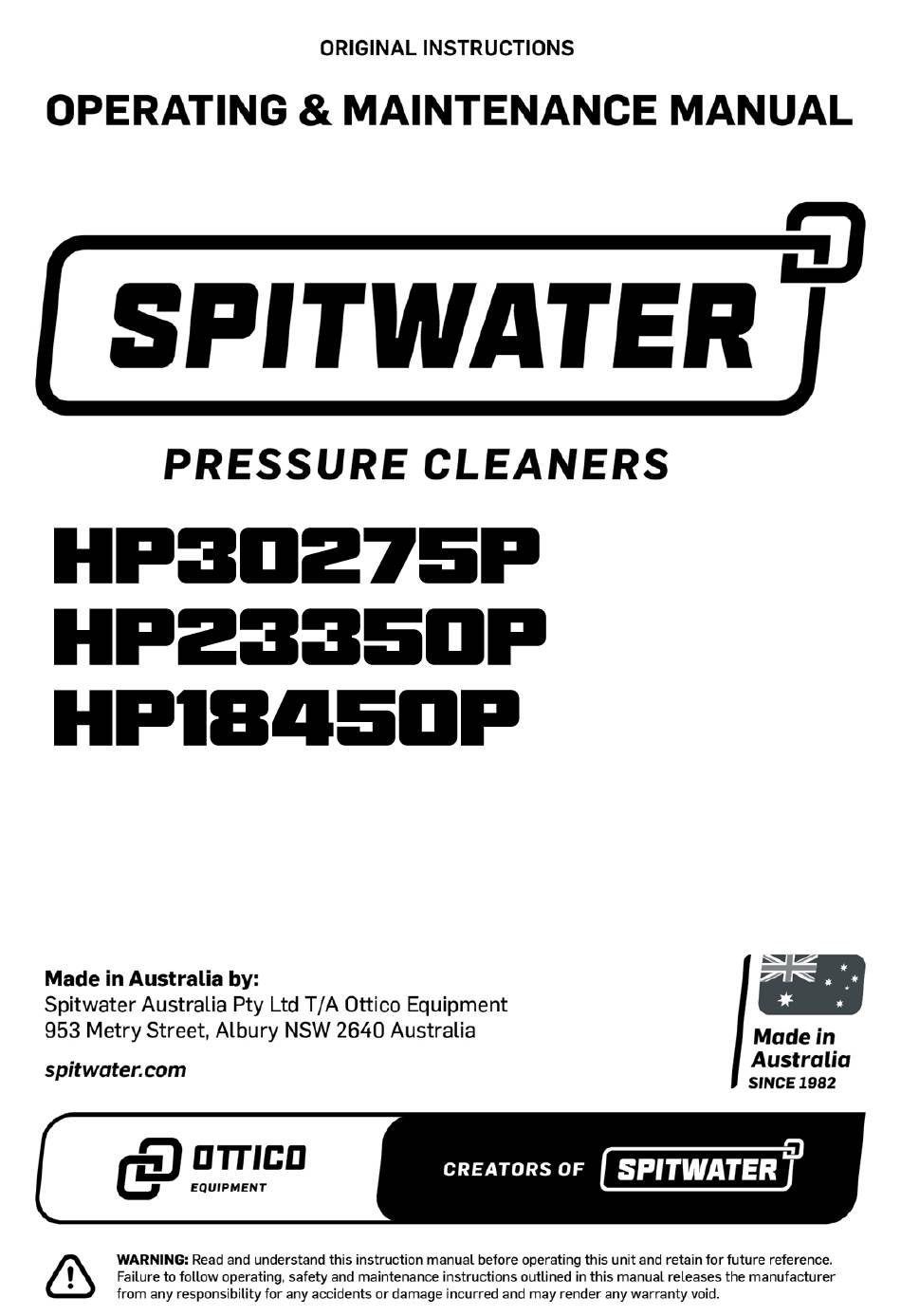

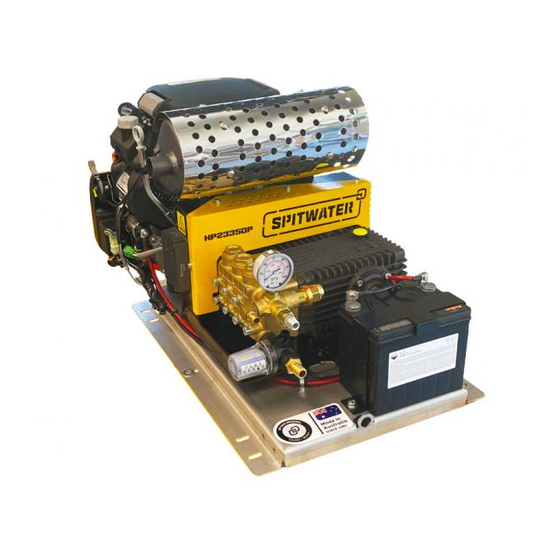

- Page 1 Petrol Cold Water High Pressure Cleaner...
- Page 2 SPARE PARTS, ACCESSORIES AND AFTER SALES SERVICE Spitwater has an extensive range of spare parts and accessories to suit all your cleaning needs. For spare parts, accessories and service please contact 1800 SPITWATER (1800 774 892) and to view Spitwater's extensive range of high-pressure cleaner’s online visit www.spitwater.com.au...
- Page 3 TECHNICAL DATA MODEL HP30275P HP23350P HP18450P PRODUCT SCW003 SCW004 SCW005 UNIT PERFORMANCE FLOW RATE PRESSURE 27.5 PRESSURE NOZZLE WATER INLET PRESSURE MAX TEMP MAX °C ENGINE ENGINE MODEL HONDA GX690 HONDA GX690 HONDA GX690 TYPE PETROL PETROL PETROL SPEED 3570...
- Page 4 DESCRIPTION OF SYMBOLS The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that require particular attention. Their meaning is listed next to them for your attention. The following symbols are used on the unit in order to warn user of potential injury if not cautious. Their meaning is listed next to them for your attention.
- Page 5 SAFETY LABELS, UNIT COMPONENTS FEATURES & CONTROLS • Always pay attention to the safety instructions provided on each label. Do not alter or remove safety labels ENGINE SWITCH BY-PASS HOUR METER CONNECTOR HIGH PRESSURE SINGLE LANCE WATER OUTLET TRIGGER GUN CONNECTOR PETROL INLET WATER INLET...
- Page 6 GENERAL SAFETY PRECAUTIONS 1. OBSERVE SAFETY INSTRUCTIONS • Make sure you have read and understood the whole instruction manual before installing, operating or carrying out any maintenance on this unit. • Warnings and serial label on the unit provide important directions and information on the safe use of the unit.
- Page 7 4. EXTENSION CORD (Electric units only) • If using an extension cord make sure it is according to cross section / maximum length requirements as shown to the right. • Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground.
- Page 8 (non-drinkable). been installed, AS/NZS 60335.2.79. • For suction supply / non-pressure water supply, • Follow all local standards and regulations other than potable water mains, contact your applicable to water connection. authorized Spitwater service agent for advice.
- Page 9 OPERATIONAL SAFETY PRECAUTIONS All health and safety regulations applicable to general safe work practices, as well as safe operation of equipment, as well as any specific standard for safe operation of high-pressure cleaners according to local regulations must be followed. 1.
- Page 10 Never exceed the maximum working temperature and pressure as indicated on the unit data plate and in this manual. • Only use this unit with cleaning chemicals recommended by Spitwater. The use of other cleaning agents or chemicals may adversely affect the safety of the unit. •...
- Page 11 4. When not in use the unit must be stored in a dry building where there is no possibility for the temperature to be at or below 0°C. If necessary to store the unit at or below 0°C contact your authorized Spitwater service agent for advice.
- Page 12 Visually check accessories bag. for any damage, leaks or other issues. If any problem is found, contact your Spitwater agent immediately. 3. Identify the unit from the information on the serial label affixed to the unit.
- Page 13 8. NOZZLE ASSEMBLY Connect the high-pressure nozzle (smaller hole) and the low-pressure nozzle (larger hole) to the lance. Do not over tighten and make sure that the nozzle positions do not interchange during assembly. Add nozzle shield after nozzle assembly. Refer diagram below. 9.
- Page 14 Contact your Spitwater agent for advice and /or supply. • Make sure the water supply temperature and pressure meet the values specified in the technical data, then turn the water supply on. Visually check for leaks and contact your Spitwater service agent if found. •...
- Page 15 12. Connect the petrol tank/source to the fuel filter of the engine. ONLY USE CLEAN PETROL IN THIS UNIT, as using any other fuel will create a risk of explosion and damage to the unit. 13. Base plate dimensions for mounting.
- Page 16 If the unit is damaged or faulty in 3. Gradually push the choke knob to the OPEN anyways, DO NOT use it and immediately contact position as the engine warms up. your authorized Spitwater service agent for advice. TO START 1. Always wear appropriate Personal Protective Equipment.
- Page 17 TO STOP 1. Turn the engine switch to the OFF position. 3. Check that the pressure indicated on the pressure gauge matches the value on the data plate and in the technical data. Also check that when the trigger is released the pressure shown on the gauge returns to zero.
- Page 18 2. Carry out all regular maintenance and Spitwater recommends that all maintenance is inspections as listed in this manual using carried out by an authorized Spitwater service original Spitwater parts where required. agent using original Spitwater spare parts. 3. Always make sure before carrying out any...
- Page 19 Check for water leaks at high pressure connections Check exhaust fume colour, if dark there may be an issue Check for any unusual noises from the machine Contact Spitwater service Safe to use for assistance STOP, do not operate unit.
- Page 20 USAGE VS SERVICE FREQUENCY Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (e.g., heavy use, dirty water, extreme temperatures or conditions etc.) times should be reduced accordingly. TABLE-A: Usage vs Service Frequency...
- Page 21 OIL CHECK POINTS PUMP-OIL LEVEL DIP STICK PUMP-SIGHT GLASS ENGINE-OIL FILTER CAP ENGINE-OIL LEVEL DIP STICK PUMP-OIL DRAIN ENGINE OIL CHECK PUMP OIL CHECK Ensure the unit is on a flat surface. Ensure the unit is on a flat surface. Check the oil level in the pump using Remove the oil level dipstick and the dipstick or the sight glass on the...
- Page 22 TROUBLESHOOTING GUIDE If the fault cannot be identified or corrected using the below list (or remedy suggests contacting Spitwater service agent) stop using the unit immediately and contact your authorized Spitwater service agent to rectify. TROUBLESHOOTING GUIDE FAULT CAUSE REMEDY...
