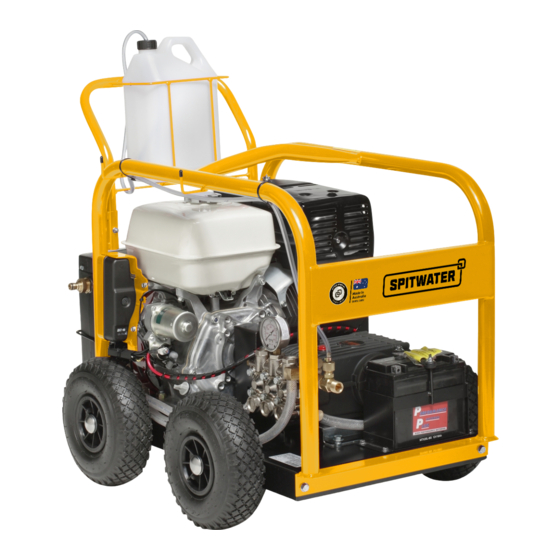

OPERATING AND MAINTENANCE
PETROL COLD WATER
HIGH PRESSURE
CLEANER
MODEL NO:
SCWA60/A (HP251/AE)
SCWA62 (HP201/SAE)
MADE IN AUSTRALIA
BY
SPITWATER AUSTRALIA PTY LTD
953 METRY STREET
NORTH ALBURY NSW 2640
AUSTRALIA
WARNING: Read and understand this instruction manual before operating this
unit and retain for future reference.
Failure to follow operating, safety and maintenance instructions outlined in this
manual releases the manufacturer from any responsibility for any accidents or
damage incurred and may render any warranty void.
ORIGINAL INSTRUCTIONS
MANUAL
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spitwater SCWA60/A
Summary of Contents for Spitwater SCWA60/A
- Page 1 HIGH PRESSURE CLEANER MODEL NO: SCWA60/A (HP251/AE) SCWA62 (HP201/SAE) MADE IN AUSTRALIA SPITWATER AUSTRALIA PTY LTD 953 METRY STREET NORTH ALBURY NSW 2640 AUSTRALIA WARNING: Read and understand this instruction manual before operating this unit and retain for future reference.
- Page 2 SPARE PARTS, ACCESSORIES AND AFTER SALES SERVICE Spitwater has an extensive range of spare parts and accessories to suit all your cleaning needs. For spare parts, accessories and service please contact 1800 SPITWATER (1800 774 892) and to view Spitwater's extensive range of high pressure cleaners online visit www.spitwater.com.au...
-
Page 3: Technical Data
TECHNICAL DATA MODEL HP251/AE HP201/SAE PRODUCT SCWA60/A SCWA62 #N/A UNIT PERFORMANCE FLOW RATE PRESSURE #N/A PRESSURE #N/A NOZZLE #N/A WATER INLET PRESSURE MAX #N/A TEMP MAX #N/A °C ENGINE ENGINE MODEL HONDA IGX390 HONDA IGX390 TYPE PETROL PETROL SPEED 3570... -
Page 4: Description Of Symbols
DESCRIPTION OF SYMBOLS The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that require particular attention. Their meaning is listed next to them for your attention. The following symbols are used on the unit in order to warn user of potential injury if not cautious. Their meaning is listed next to them for your attention. - Page 5 SAFETY LABELS, UNIT COMPONENTS FEATURES & CONTROLS Always pay attention to the safety instructions provided on each label. Do not alter or remove safety labels PETROL TANK RECOIL STARTER DUAL LANCE = SCWA60/A TRIGGER GUN SINGLE LANCE = SCWA62 PRESSURE GAUGE PRESSURE HIGH / LOW...
-
Page 6: General Safety Precautions
GENERAL SAFETY PRECAUTIONS 1. OBSERVE SAFETY INSTRUCTIONS Make sure you have read and understood the whole instruction manual before installing, operating or carrying out any maintenance on this unit. Warnings and data plates on the unit provide important directions and information on the safe use of the unit. -
Page 7: Chemical Hazard
4. EXHAUST & FLUE GASES Do not use combustion engine powered machines indoors unless adequate ventilation is assessed by national labor authorities. Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in closed areas. Breathing carbon monoxide can cause unconsciousness or death. -
Page 8: Operational Safety Precautions
OPERATIONAL SAFETY PRECAUTIONS All health and safety regulations applicable to general safe work practices, as well as safe operation of equipment, as well as any specific standard for safe operation of high pressure cleaners according to local regulations must be followed. When operating this unit, 1. -
Page 9: Equipment Safety
Never exceed the maximum working temperature and pressure as indicated on the unit data plate and in this manual. Only use this unit with cleaning chemicals recommended by Spitwater. The use of other cleaning agents or chemicals may adversely affect the safety of the unit. ... -
Page 10: Storage / Transport
5. When not in use the unit must be stored in a dry building where there is no possibility for the temperature to be at or below 0°C. If necessary to store the unit at or below 0°C contact your authorized Spitwater service agent for advice. - Page 11 2. Remove carton and carefully remove the unit from the pallet keeping it upright. Visually check for any damage, leaks or other issues. If any problem is found, contact your Spitwater agent immediately. 3. Identify the unit from the information on the serial label affixed to the unit.
- Page 12 9. NOZZLE ASSEMBLY (SCWA60/A ONLY) Connect the high pressure nozzle (smaller hole) and the low pressure nozzle (larger hole) to the lance. Do not over tighten and make sure that the nozzle positions do not interchange during assembly. Add nozzle shield after nozzle assembly.
- Page 13 High pressure hoses, fittings and couplings are important for the safety of the machine. Use only high pressure hoses, couplings and fittings recommended by Spitwater. Do not pull on high pressure hose in order to move the unit.
-
Page 14: Water Inlet Connection
Contact your Spitwater agent for advice and /or supply. Make sure the water supply temperature and pressure meet the values specified in the technical data, then turn the water supply on. Visually check for leaks and contact your Spitwater service agent if found. ... - Page 15 If the unit is damaged or faulty in RECOIL START anyways, DO NOT use it and immediately contact Turn engine switch to ON position. your authorized Spitwater service agent for advice. Pull the starter grip lightly until you feel resistance, then pull briskly in the direction of TO START the arrow as shown below.
- Page 16 TO USE SCWA62 ONLY 1. Release the spray gun trigger lock. 4. To adjust spray angle, turn the nozzle head clock 2. Pull the trigger on the spray gun and allow wise and anti-clock wise as desired. water to run through the system for a few minutes to expel air from the hydraulic system.
- Page 17 SCWA60/A ONLY 1. To activate high pressure turn the lance handle clockwise and pull the trigger and to activate low pressure turn the lane handle anti-clockwise. HIGH 1. If detergent is required it CAN BE USED IN LOW PRESSURE ONLY.
- Page 18 TO STOP 1. Close the chemical injector by turning it clockwise until it stops. 2. Turn the engine switch to the OFF position. 3. Release all trapped water pressure in the unit by pulling the trigger of the spray gun, then engage the spray gun trigger lock.
-
Page 19: Safety Precautions
2. Carry out all regular maintenance and Spitwater recommends that all maintenance is inspections as listed in this manual using carried out by an authorized Spitwater service original Spitwater parts where required. agent using original Spitwater spare parts. 3. Always make sure before carrying out any... -
Page 20: Daily Inspection Checklist
● Dark fumes = abnormal condition, unit needs attention. ● Clear fumes = ideal condition to run the unit. Unusual noise from unit. STOP operting the unit, Unit is fit, proceed task Contact Spitwater service agent immediately Contact Spitwater service Do It Yourself, agent / Qualified person for... - Page 21 USAGE VS SERVICE FREQUENCY TABLE-A: Usage vs Service Frequency For more information on service intervals of the Honda petrol engine, refer manual Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (eg heavy use, dirty water, extreme temperatures or conditions etc) times should be reduced accordingly.
-
Page 22: Engine Oil Check
OIL CHECK POINTS PUMP OIL CHECK ENGINE OIL CHECK ENGINE OIL CHECK PUMP OIL CHECK Ensure the unit is on a flat surface. Ensure the unit is on a flat surface. Check the oil level in the pump using Remove the oil level dipstick and the dipstick or the sight glass on the wipe it clean. -
Page 23: Troubleshooting Guide
TROUBLESHOOTING GUIDE If the fault cannot be identified or corrected using the below list (or remedy suggests contacting Spitwater service agent) stop using the unit immediately and contact your authorized Spitwater service agent to rectify. TROUBLESHOOTING GUIDE FAULT CAUSE REMEDY...
