Wireless Communication

• WLAN 802.11 ax 2x2 Dual Band MU-MIMO
• Dual mode Bluetooth
• 2x Integrated antennas
• Active and passive RFID
Contact your JLT sales representative for RFID tags
For best performance, make sure no antennas are obstructed, especially by con-
ductive material such as any metal. The RFID / NFC are for close range >10mm,
make sure these are not mechanically obstructed

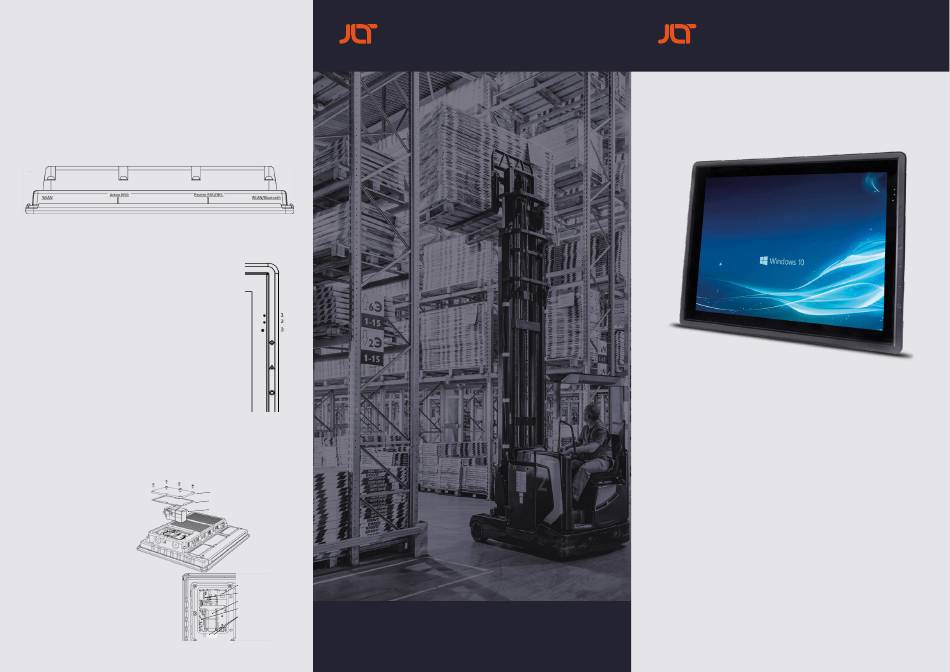

TOP VIEW
LED indicators & Ambient light sensor
LED 1
1. Green, slow blink every 10 sec.
Power is connected, unit is turned OFF
2. Green, fast blink every 3 sec.
Power is connected, unit is in SLEEP mode
3. Green, constantly lit
Power is connected, unit is in normal operation
4. Orange, constantly lit
Unit is running on battery, preparing shutdown
LED 2
LED 1 and LED 2
1. Yellow
Simultaneous blink = buttons are in use
Disk activity
2. Green
WLAN is connected
Ambient light sensor 3
The ambient light sensor is for automatic brightness adjustment depending on
condition of surrounding light. The function can be turned on or off and adjusted for
different levels and control in the JLT Control Panel-application.
Please see the JLT6012 User Manual for further description.

Maintenance

Battery replacement

1. Unscrew the six Torx 10 screws
2. Lift the lid and gasket
3. Lift the battery and unplug cable
4. Mount battery in reverse order make
sure battery and gasket are in correct position

Service lid overview

Refer to full User manual for any
operations except Battery replacement.
SERVICE LID
GASKET
BATTERY
SYSTEM DISK
WLAN/BLUETOOTH
BATTERY
RTC BATTERY
2X SIM SLOTS
For further support or guidance, visit:
jltmobile.com/support
Quick Start Guide
JLT6012
jltmobile.com
P/N 101728-2
