JLT 1214N Quick Start Manual

Mounting

JLT provided Mounting Kits: RAM®
RAM® Mount -> Computer: Use included screws and washers.
RAM® Mount + "JLT Communication Box" -> Computer: Use included screws and
washers.
Usage of thread locking products like Loctite® is recommended.
Mounting with other brands
When mounting a JLT unit to a VESA bracket, use M6 screws with correct length.
The inserting part of the screw should be minimum 5mm and must NOT exceed
6.5mm. (That is 5 complete turns on the screw).
If screws are too long, build up with washers to adjust the inserting part of screw.
If this is not done and the screws are too long, they will deform the aluminum case
inwardly when applying great force.
Torque: Maximum 6Nm
Supplied within the computers box are also
• Cable Strain Relief (Use Torx T10 / T20 screwdriver)
• Rubber Sealing Plugs – for all unused ports.
For additional sealing of your JLT units, we offer the Roxtec Sealing KIT. Please contact
IP65 med Cable strain relief
your JLT Sales representative for more information about the Roxtec Sealing KIT or
visit www.jltmobile.com
Sprängskisser
JLT Mobile Computers AB
Head office: Isbjörnsvägen 3, SE-352 45 Växjö, SWEDEN
Sales Office: Medborgarplatsen 3, Plan 8, SE-118 26 Stockholm, SWEDEN
Phone: +46 470 53 03 00 Fax: +46 470 445 29 Email: info@jltmobile.com
www.jltmobile.com

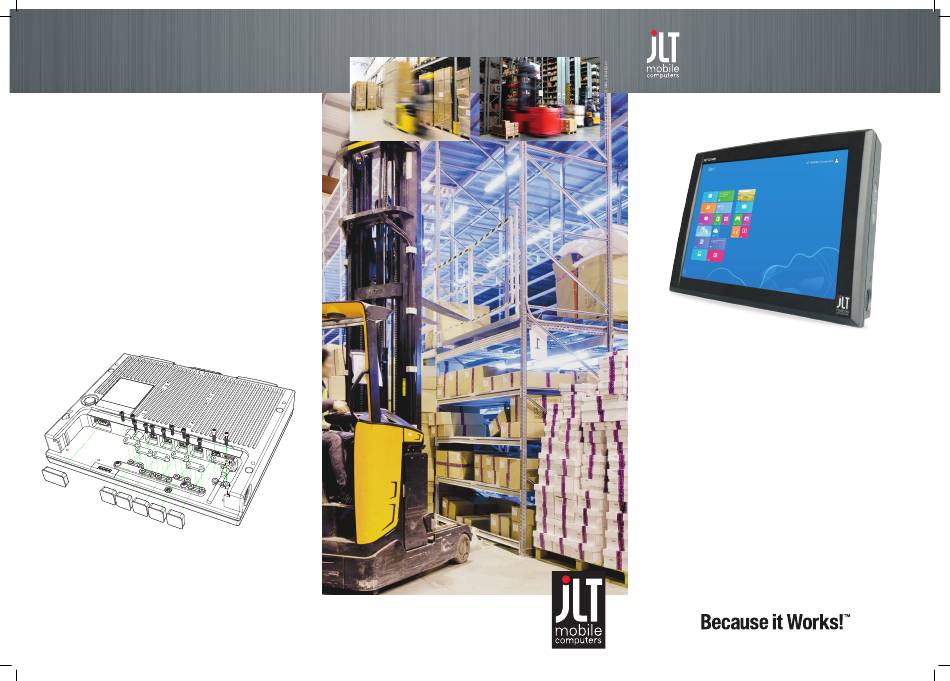

JLT1214N
Quick Start Guide
JLT1214N
