JLT6012A

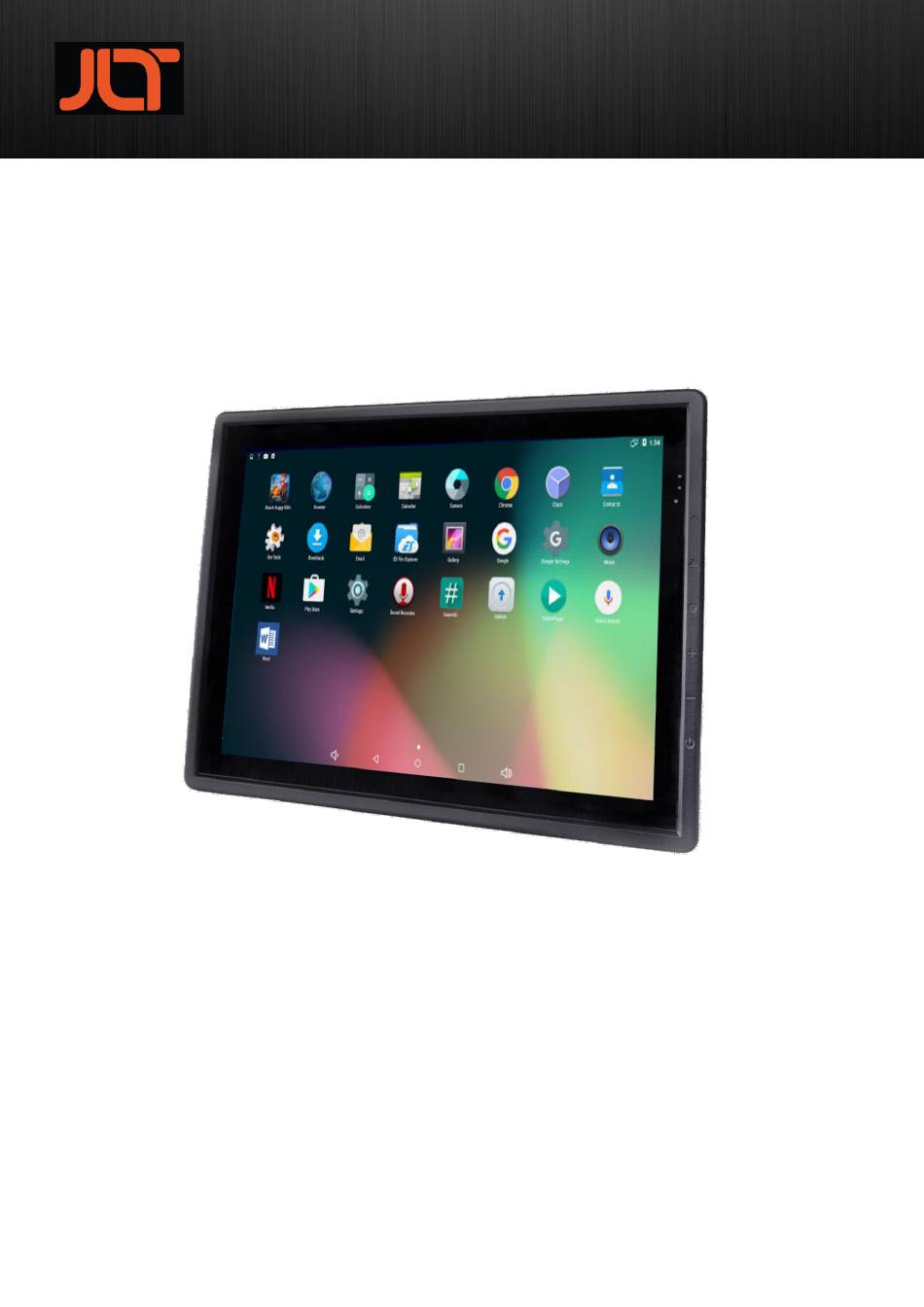

Quick Start Guide
JLT6012A
JLT Mobile Computers AB
Head Office: Isbjörnsvägen 3, SE-352 45 Växjö, SWEDEN
Sales Office: Medborgarplatsen 3, Plan 8, SE-118 26 Stockholm, SWEDEN
Phone: +46 470 53 03 00 Fax+46 470 445 29 Email:
info@jltmobile.com
North America: 7402 West Detroit Street, Suite 150 Chandler, Arizona 85284, USA
Phone +1 480 705 4200 Toll free US: 844-705-4200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JLT6012A and is the answer not in the manual?

Questions and answers

Related Manuals for JLT JLT6012A

Summary of Contents for JLT JLT6012A

  • Page 1 JLT6012A Quick Start Guide JLT6012A JLT Mobile Computers AB Head Office: Isbjörnsvägen 3, SE-352 45 Växjö, SWEDEN Sales Office: Medborgarplatsen 3, Plan 8, SE-118 26 Stockholm, SWEDEN Phone: +46 470 53 03 00 Fax+46 470 445 29 Email: info@jltmobile.com North America: 7402 West Detroit Street, Suite 150 Chandler, Arizona 85284, USA...

  • Page 2: First Start

    See section “Maintenance” for SIM-card installation. Touch Screen JLT6012A is equipped with a Projected Capacitive Touch screen. Also called PCT or PCAP. The touch screen is calibrated from factory and needs no further calibration. It has a resistant glass surface that can be cleaned with a damp cloth, ordinary soap or hand-dish washing fluids.
  • Page 4 JLT standard cable configuration: Red = Positive, White = Remote, Black = Ground The power cable must be dimensioned to handle up to 40 Watts, or use cable supplied by JLT. Recommended cable area 0.75 mm , AWG 18 or larger.
  • Page 5 If power is lost or switched off, the unit will switch to the UPS-battery to perform a controlled system shutdown. Battery and remote operation are configurable in JLT Control Panel application. Remote input is recommended to utilize to automatically power on and off the unit.
  • Page 6 Usage of thread locking products like Loctite® is recommended. Mounting with other brands and parts When mounting a JLT unit to a VESA bracket, use M6 screws with correct length. The inserting part of the screw should be minimum 5mm and must NOT exceed 8.5mm. (That is 8 complete turns on the screw).
  • Page 7 The keyboard mount has multiple mounting hole alternatives and comes with a Velcro® adhesive tape to adapt to any keyboard. It’s adjustable to allow different keyboards and height. Mounting screws come with the selected keyboard, if supplied from JLT Mobile.

  • Page 8: Wireless Communication

    Wireless Communication WLAN: 802.11 ac/a/b/g/n 2x2 Dual Band MU-MIMO Dual Mode Bluetooth 2x Integrated Antennas 2.4Ghz / 5Ghz Optional: WWAN: 4G/3G, HSPA+, UMTS, LTE GNSS: GPS, Glonass, Galileo, BeiDou See section “Maintenance-Service lid overview” for SIM-card insertion. For best performance, make sure no antennas are obstructed, especially by conductive material such as any metal.

  • Page 9: Maintenance

    Maintenance Battery Replacement Unscrew the six Torx 10 screws. • Lift the lid and gasket. • Lift the battery and unplug cable. • Mount battery in reverse order make sure battery and gasket are in correct position. • Service lid, overview...
  • Page 10 LED indicators and Ambient light sensor LED, 1 1. Green, slow blink every 10 sec. Power is connected, unit is turned OFF 2. Green, Constantly lit Power is connected, unit is in normal operation 3. Orange, Constantly lit Unit is running on battery, preparing shutdown 4.
