Aerpro APWC100 Manual

SILICONE WIRELESS CHARGING
SMARTHPHONE PAD
Thank you for purchasing the APWC100 Wireless Charger/Power Bank.
It is compatible with all Qi enabled devices like Samsung S7/ S8, S9,
S10, iPhone8, iPhone8 plus, iPhoneX, etc.
For optimum performance and safety, please read this manual carefully
before using this product.
Specifications
Power: 10W
Input Voltage: 5V/2A; 9V/1.67A
Output Voltage: 5V/1A; 9V/1.12A
Over voltage/temperature protection
Type-C Input
Charging efficiency: ≤70%
Transmission distance: ≤6mm
Size: 185 x100 x 26 mm
Weight: 180g
Can accept 18W or higher wall
power charger (not included)
How to use your Wireless Charging Pad

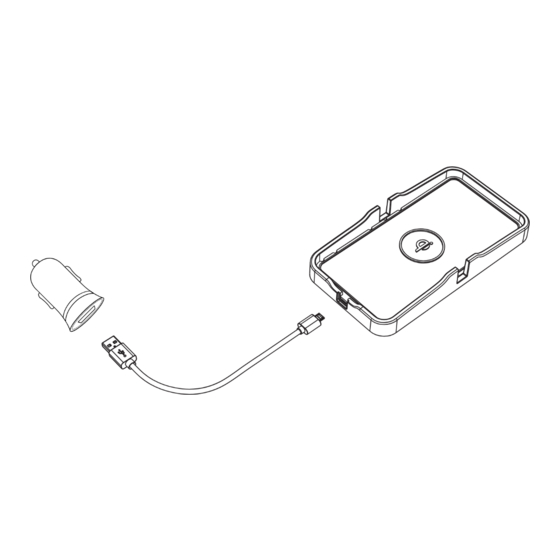

1. Connect supplied Type-C data cable to the input port of the charging pad
2. Connect supplied USB end of the Type-C data cable (Included) to a USB
car charger or USB power adapter (Not Included).
APWC100
Type-C Input port
Charging pad contact
