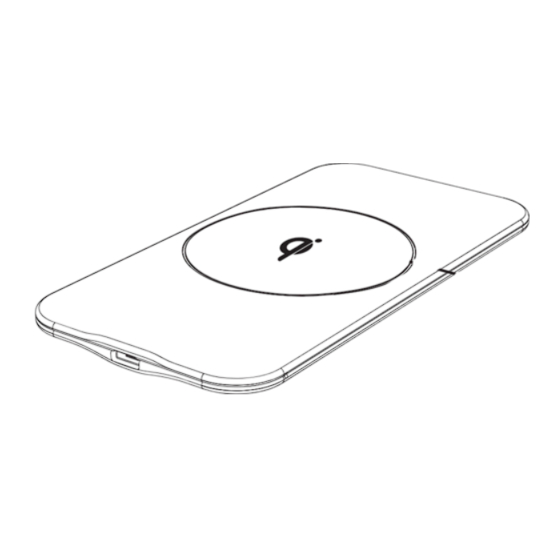

WIRELESS CHARGING
SMARTPHONE PAD
Specifications
Qi certified
Wireless output: 15W/10W/7.5W/5W
Input Voltage: 12V/1.67A; 9V/1.67A; 9V/1.34A
Output Voltage: 9V/1.67A; 9V/1.12A; 9V/0.83A; 5V/1A
Charging efficiency: ≤65%
Transmission distance: ≤6mm
Size: 126 x 65 x 7 mm
Weight: 50g
1. Input port
2. Wireless transfer contact area
3. Wireless charging indicator
APWC155
Advertisement
Table of Contents
Related Manuals for Aerpro APWC155
Summary of Contents for Aerpro APWC155
- Page 1 APWC155 WIRELESS CHARGING SMARTPHONE PAD Specifications Qi certified Wireless output: 15W/10W/7.5W/5W Input Voltage: 12V/1.67A; 9V/1.67A; 9V/1.34A Output Voltage: 9V/1.67A; 9V/1.12A; 9V/0.83A; 5V/1A Charging efficiency: ≤65% Transmission distance: ≤6mm Size: 126 x 65 x 7 mm Weight: 50g 1. Input port 2.
- Page 3 How to use your APWC155 1. Connect supplied USB cable to the input port of the wireless charging pad. 2. Connect opposite end of the cable into a USB car charger or USB power adapter (Not Included). 3. Wireless charging indicator LED will turn red once plugged into a power source.
- Page 4 Charging your device from the wireless charging pad 1. Place your QI enabled device on the transmitter of the wireless charging pad. 2. When successfully charging, the wireless charging indicator LED will turn blue. 3. Once your device is fully charged the wireless charging indicator LED will turn off.
- Page 5 Charging indicators Red light on: Wireless charging pad stand-by Blue light on: Wireless charging pad successfully charging device Light off: Wireless charging device fully charged Flashing Blue light on: Wireless charging unsuccessful (Problem)
- Page 6 Wireless Charging Pad that outputs the proper voltage is required (Not included). It should meet QC2.0, QC3.0 or QC4.0 standard. Aerpro Models APCC210 & APCC220 (In-Car Chargers); APHC210 & APHC220 (240V Wall Chargers) meet the requirements, and can accept 18W or higher (sold separately).
- Page 7 Micro USB charging cable User manual Technical assistance If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST...
