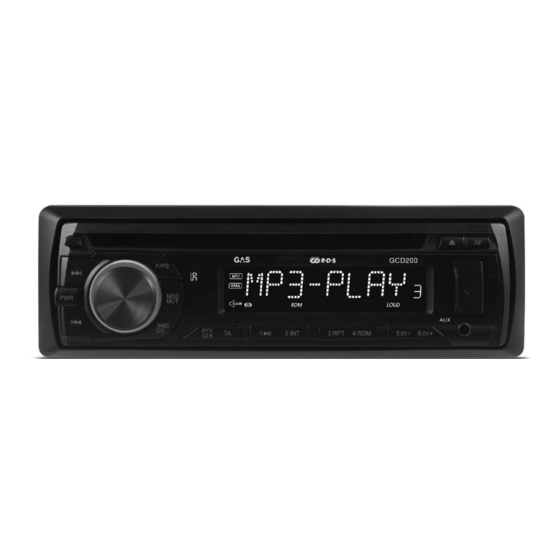

gCD200
CD receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCD200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GAS GCD200

Summary of Contents for GAS GCD200

  • Page 1 CD receiver...

  • Page 2: Table Of Contents

    Contents Precautions................3 Warnings Before Installation...........4-6 Before You Install...............7 Installation (DIN Front Mount).............8 Installation (Vehicle's Brackets)..........9 Wiring Connections.............10-11 Bluetooth Operation (Optional)..........12 Basic Operation..............13 Radio Operation..............14 RDS Operation (Optional)............15 CD/MP3/WMA/USB Operation..........16-17 Maintenance................17 Ipod Operation (Optional) ............18 Remote Control (Optional)..........19-20 Simple Troubleshooting Guide..........21 Specifications................22 Welcome! Thank you for purchasing this high-technology car stereo with...

  • Page 3: Precautions

    Precautions • This unit will only play the following discs. Type of disc Label on the disc Recorded material Size of disc 12 cm CD, MP3, WMA Audio only DO NOT ATTEMP TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN ACCIDENT. STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD INTERFERE WITH YOUR DRIVING.

  • Page 4: Warnings Before Installation

    Warnings Before Installation Important Warnings to Take Note of BEFORE Com- mencing Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take The Time To Read The Installation Notes Carefully. • To avoid shorts in your vehicles electrical system, be sure to disconnect the battery cable before beginning in- stallation.
  • Page 5 Warnings Before Installation • If this unit is installed in a vehicle that does not have an ACC (accessory) position on the ignition switch, the red lead of the unit should be connected to a terminal coupled with ignition switch ON/Off operations. If this is not done, the vehicle battery may be drained when you are away from the vehicle for several hours.
  • Page 6 Warnings Before Installation The area around the ground connection should be clean, bare metal without rust, paint, plastic or dirt for a good electrical connection. • If noise is still experienced when the motor of the vehicle acceler- ates, a choke should be placed in line with the power to the unit. The installation company will know what is required.

  • Page 7: Before You Install

    Before You Install Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.

  • Page 8: Installation (Din Front Mount)

    Installation WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. NOTE: Mark the polarity of the existing speaker wires before disconnecting battery. NOTE: Remove the two transport screws from the top of the unit before installing.

  • Page 9: Installation (Vehicle's Brackets)

    Installation NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.

  • Page 10: Wiring Connections

    Wiring Connections Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise prob- lems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.
  • Page 11 Wiring Connections White Panel Light Connect to lighting circuit of vehicle. This will illuminate the but- tons on the display for night time operation. This wire can also be connected to the Orange Remote wire to activate the but- tons when the unit is powered on. DO NOT JOIN THE WHITE WIRE TO THE LIGHTING CIRCUIT OF THE VEHICLE IF CONNECTED TO THE ORANGE REMOTE WIRE.

  • Page 12: Bluetooth Operation (Optional)

    Bluetooth Operation (Optional) 1. Pairing This unit support the “Auto Connect Press and hold BND/TEL button until function”. In case the connected cell- the word “PAIRING” appears on the phone is out of range (e.g. the user display waiting for the bluetooth de- leaves the car for lunch), when the vice to connect.

  • Page 13: Basic Operation

    Basic Operation 1. Tuning the unit On / Off 9. Fader Press any Button to turn the unit Press SEL Button repeatedly until the on, the display will show a message display shows "FAD F-R", then use WELCOME TO CAR AUDIO to in- the VOL +/- Button to adjust the bal- dicate it is ready for use.

  • Page 14: Radio Operation

    Radio Operation 1. Choose Radio Band tions for each band. While listening to Press the MOD Button to access the a radio station you would like to save radio function. as a pre-set, press and hold one of the The unit comes with five bands- three buttons numbered 1-6 until you hear a FM Bands (FM1, FM2, and FM3) and beep.

  • Page 15: Rds Operation (Optional)

    RDS Operation (Optional) RDS Function type of programme. Press and hold RDS ( Radio Data System) service the PTY button once to show the availability varies with areas. Please music type. Then press 1-6 button understand if RDS service is not to choose the different music types available in you area, the following available.

  • Page 16: Cd/Mp3/Wma/Usb Operation

    CD/MP3/WMA/USB/SD Operation 1. Insert / Eject CD and hold SEEK >>| to fast forward. Insert a disc into CD slot with label Press the SEEK |<< Button to go to a side up. The disc will be automatically previous track. Track numbers will be loaded into the unit, even when it is off shown on the display.

  • Page 17: Maintenance

    CD/MP3/WMA/USB/SD Operation sen track will start to play. MAINTENANCE C. Folder Search Cleaning the Unit Press the F/PS Button twice and Do not use any liquids to clean this NAVIGATE will be shown on the dis- unit. play.Use the VOL +/- Button to select Do not use petroleum distillates to the folder name.

  • Page 18: Ipod Operation (Optional)

    IPOD Operation (Optional) 1. Connect your IPOD Connect your IPOD with the original Ipod cable (supplied with the Ipod). This unit can play all the audio Ipod including Ipod Touch and Iphone. Ipad is not supported. 2. Play / Pause Once the unit has been connected, playback will start automatically.

  • Page 19: Remote Control (Optional)

    Remote Control (Optional) 1. Band Switch 2. Stations Tune/ Seek Up Track Up 3. Stations Tune/ Seek Down Track Down 4. Mute Sound Button 5. Sound +/- 6. PTY Control 7. Sound Select Key 8. Repeat Play 9. Folder Up 10.
  • Page 20 Remote Control (Cont) This unit comes with a full remote control system. The CR-2025 Lithium battery is an included item with the remote control. In case you have to replace the batteries (1) remove the cover from the back of the remote control. (2) insert a CR-2025 Lithium battery.

  • Page 21: Simple Troubleshooting Guide

    Simple Troubleshooting Guide PROBLEM CAUSE/SOLUTION Check and make sure that the fuses did No Power not blow. Errors are displayed on the screen Unplug your car radio then plug it again or no function is active Check the connection of the antenna. No radio reception Make sure the antenna is completely extended and that it is not broken...

  • Page 22: Specifications

    Specifications GENERAL Operating Power............12 Volts DC, Negative Ground Speaker output..................4 speakers RCA line out................low-level outputs - 1V Output Impedance................4 to 8 Ohms Fuses........................10 A Dimensions............178mm(W) x 178mm(D) x 51mm (H) Weight......................2.0 Kg CD PLAYER Signal / Noise Ratio..................>80dB Frequency Response.................20 Hz~20KHz Channel Separation..................>50dB D / A Converter....................16 Bit FM TUNER...
