Summary of Contents for GAS MAX K2
- Page 1 K2-64 HARDCORE CAR AUDIO...
- Page 2 We are the NO BULLSH!T car audio brand! Every single product with the GAS logo on it is born out of passion, the same that has driven us for two generations and that will keep us rolling up to your...
-
Page 3: Table Of Contents
TABLE OF CONTENT SAFETY....................UNPACKING..................DIMENSIONS....................SPECIFICATIONS................. MAX K2-64..................PERFORMANCE................. Impedance vs Frequency..............FEATURES....................The sum of awesome................ Next level water resistance.............. When ”good” isn’t good enough............Easy to install................... Hear the difference................HOW TO......................Install component kit............... Speaker & tweeter placement............ -
Page 4: Safety
There is a first time for everything, if you need help - ask a friend or contact your local GAS AUDIO POWER dealer/installer. We want you to experience your product’s MAD sound, but we don’t want you to injure yourself or others. -
Page 5: Unpacking
UNPACKING Unboxing your new MAX product is an experience, make sure that the speakers and all the accessories are included in the packaging: Speakers Grills WF Crossovers TW Crossovers Manual (2pcs) (2pcs) (2pcs) (2pcs) (1pc) Screws Tweeters Crossover cables TW Mounting rings Glue pads V-type clips (2pcs) - Page 6 DIMENSIONS T2-254 Ø49 Ø44 Ø49 IN PHASE OUT OF PHASE TXO2-14 WXO2-14...
-
Page 7: Specifications
Below you’ll find the specifications that has been checked and tested in our workshop. The specified sensitivity isn’t directly connected with the sound pressure in the vehicle, and shouldn’t be used as the sole indicator for comparison with other component kits. MAX K2-64 MAX MW2-64 WOOFER Component... - Page 8 SPECIFICATIONS MAX WX02-14 CROSSOVER MAX TX02-14 CROSSOVER Crossover type Low pass Crossover type High pass Slope Slope 12db Cut off 4500Hz Cut off 4500Hz Tweeter level High / Low Phase selector...
-
Page 9: Performance
PERFORMANCE IMPEDANCE VS FREQUENCY MW2-64 T2-254... -
Page 10: Features

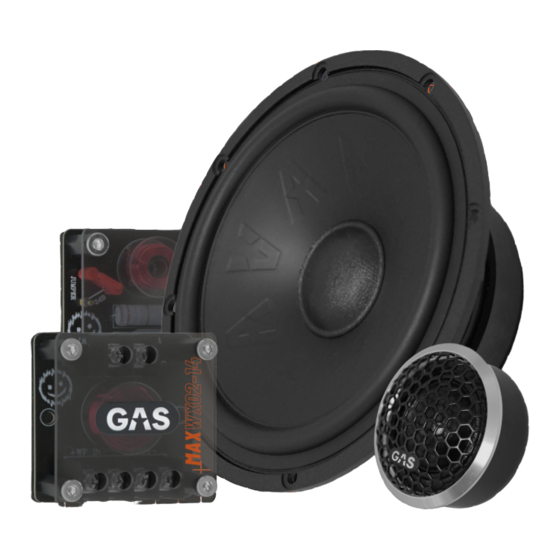

With a high-quality ferrite motor, copper wire voice coil, aluminum former, and copper shorting ring, the GAS MAX K2-64 has a strong and stable foundation for the speaker. It ensures that the speaker can deliver crisp, clear, and powerful audio that exceeds your expectations. But we didn't stop there. The MAX series is all about quality, which is why we used an aluminum basket and metal tweeter housing. -
Page 11: How To
HOW TO INSTALL COMPONENT KIT Before installing your brand new component kit, make sure that you have everything you need. Have the right tools ready, and make sure that you have the necessary know- ledge/skill to perform the installation properly. Preparation and knowledge is crucial! The component kit includes three main parts: the midrange woofers, the tweeters and dual crossovers. - Page 12 HOW TO BI-AMP CONNECTION WITH SEPARATED CROSSOVERS: Component kit with 2x2 channels amp. It is important to know the limits of your amplifier. Be sure to connect your sound system with a suitable impedance to optimize your sound system. Component kit with 4 channel amplifier...
-
Page 13: Speaker & Tweeter Placement
HOW TO SPEAKER & TWEETER PLACEMENT Now that you know how to connect your component kit, you need to decide where to put it. You will most likely have one or two possible locations to put the speakers and tweeters depending on make and model. -
Page 14: Crossover Phase Function
HOW TO CROSSOVER FUNCTIONS The two crossover models included with the K2-64 speakers are made to give you a maximized sound experience! The crossovers consist of one separate high pass and one low pass filter for each L/R channel. MAX TX02-14 is a 12db tweeter high pass filter with phase and level settings. -
Page 15: Troubleshooting
Check your head unit to make sure no settings are limiting the amplifier’s functions or the speakers. When all of the above has been tested/looked over, and all is as it should be but there’s still no sound, consult your local GAS AUDIO POWER dealer/installer. UNWANTED NOISE Start by looking over the speakers in the sound system so there is no damage or connection issue with the wiring. -
Page 16: Warranty & Disposal
Alternative arrangements may apply in other jurisdictions. GAS Audio Power is a global partner of the European Mobile Media Association, an organization that focus on promoting the custom made mobile media installations to consumers. -
Page 17: The Gas World
THE GAS WORLD You’ve entered the world of GAS. We aim to please, and we’ve made sure to have products made for you. No matter what stage of the LOUD-addiction you might find yourself in, there is a GAS product to fill your need. - Page 18 THANKS FOR JOINING GAS AUDIO POWER! GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is protected by relevant laws and jurisdictions such as Copyright and Trademark laws. Winn Scandinavia AB Elementvägen 15, 70227 Örebro, Sweden www.winnscandinavia.com Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.
