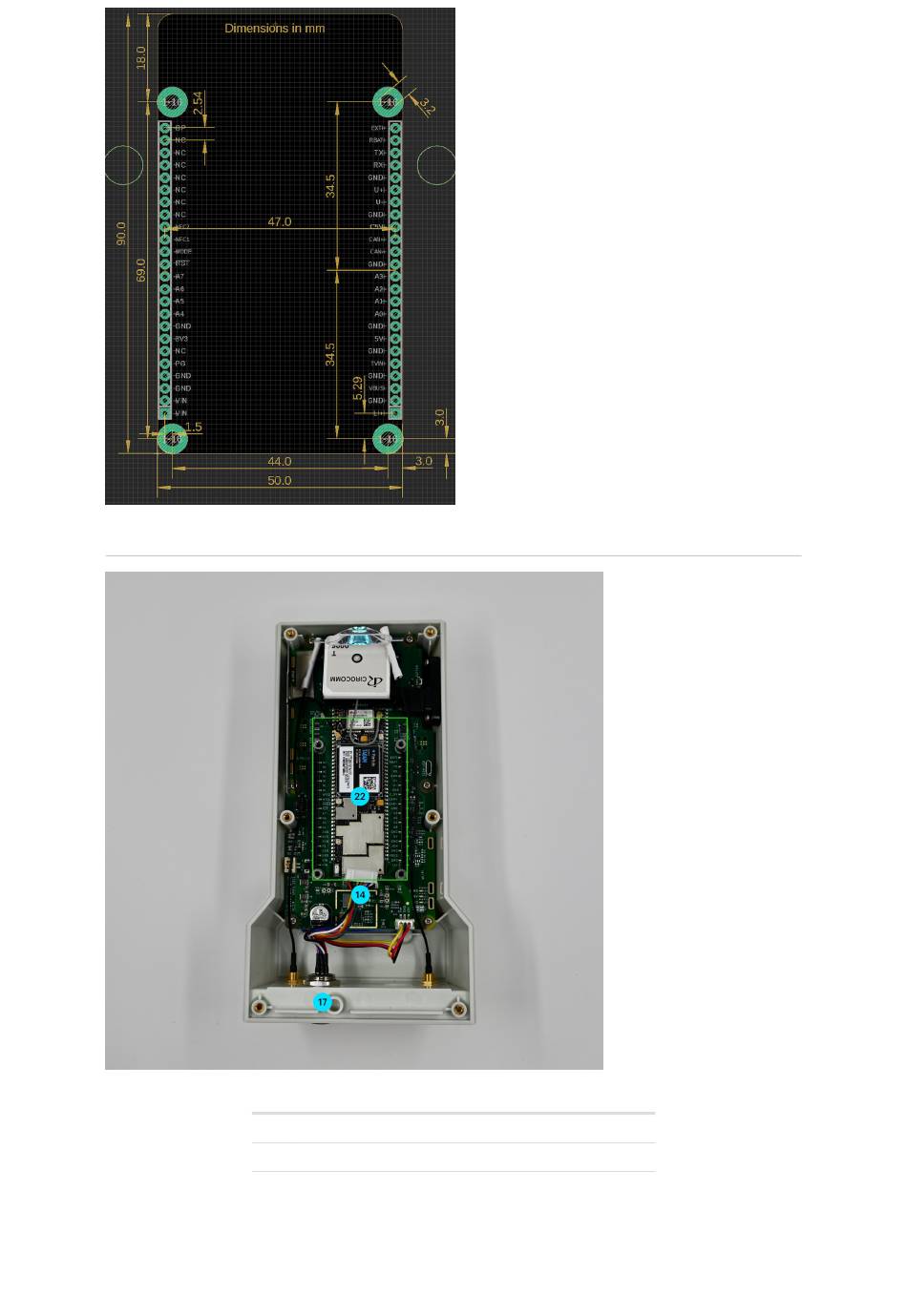

EXPANSION CARD LOCATION
Label Feature
14
17
22
The enclosure typically has a panel-mount M12 8 pin female connector in location 17 in the picture
above. This is connected via a short cable to a PHR-8 female connector that attaches to your
expansion card. The picture above shows the cable but a board is not installed in the picture.
Expansion card to external connector cable (M12 to PHR8)
Expansion card external connector #1 (M12, 8-pin)
Location of expansion card (green outline)
