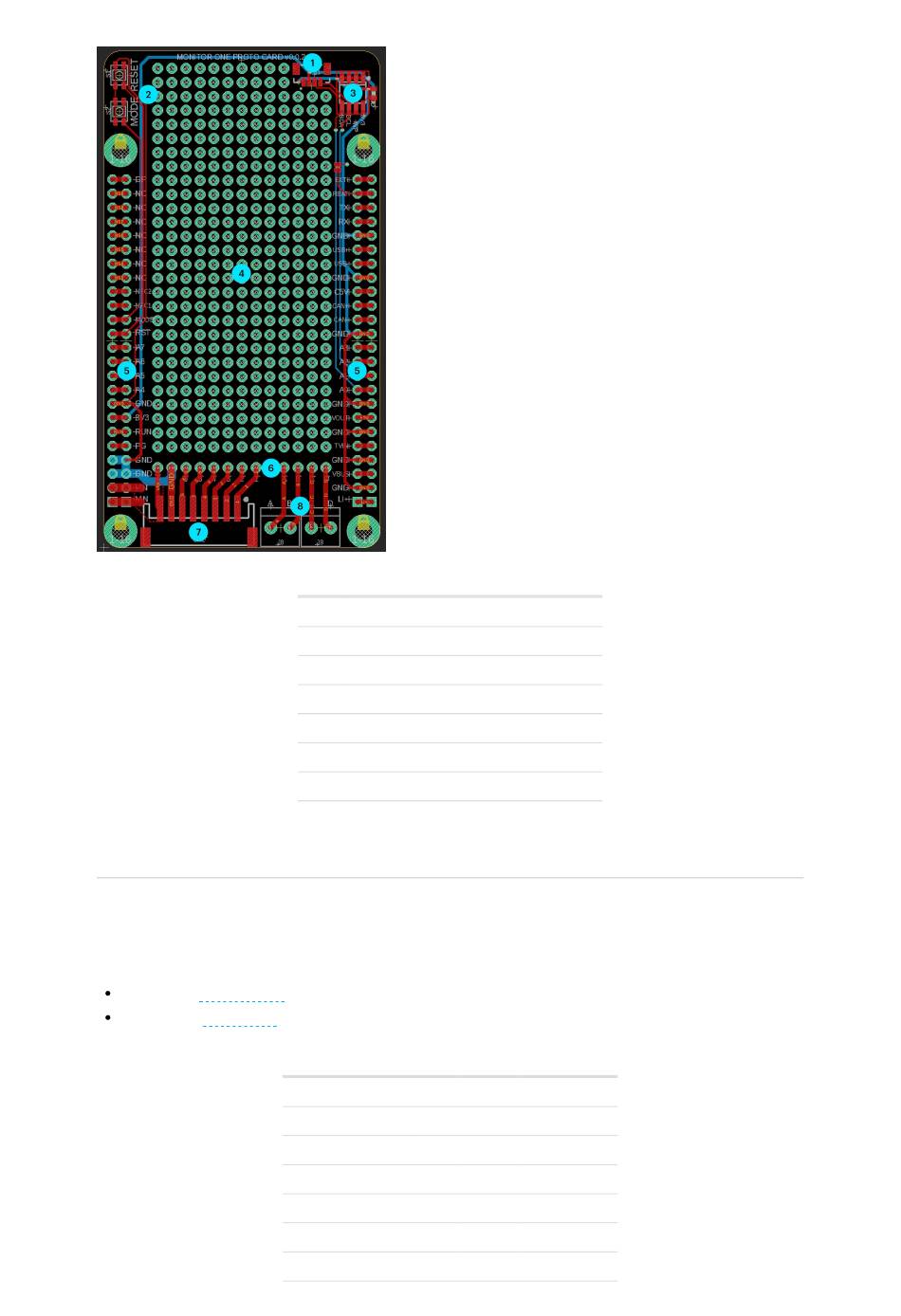

Prototype Card
B8B-PH CONNECTOR
The left connector (7) attaches to the M12 8-pin connector with a short adapter cable. You don't
have to use this cable setup, but it's often convenient to do so.
Connector: JST B8B-PH (right angle)
Mates with: JST PHR-8
Label Feature
1
QWIIC (I2C) connector
2
RESET and MODE buttons
3
EEPROM
4
Prototyping area
5
Access to expansion port signals
6
Access to bulkhead connector signals
7
B8B-PH connector, connect to M12 8-pin
8
Screw terminals, connect to M12 4-pin
Connector B8B-PH Color M12 Pin Function
8
2
7
8
6
6
5
5
4
1
3
7
2
4
1
3
Red
VIN (6-30 VDC)
Black
Ground
Pink
Gray
White
Blue
Yellow
Green
