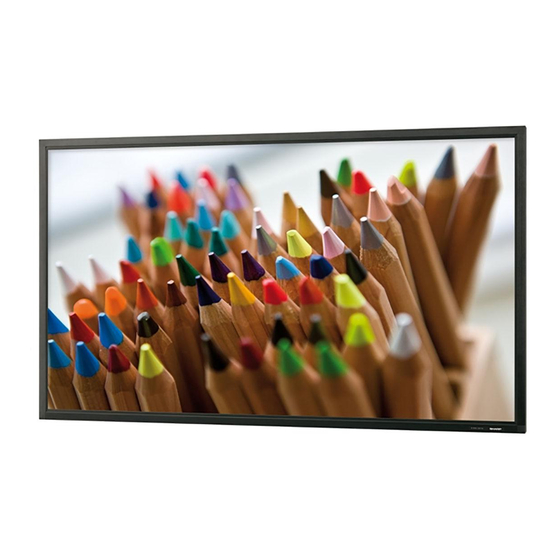

Sharp PN-E802 Professional LCD Monitor Operation Manual

Hide thumbs Also See for PN-E802 Professional LCD Monitor:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
PN-E802
LCD MONITOR
OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Sharp PN-E802 Professional LCD Monitor

Summary of Contents for Sharp PN-E802 Professional LCD Monitor

  • Page 1 PN-E802 LCD MONITOR OPERATION MANUAL...
  • Page 2 IMPORTANT: To aid reporting in case of loss or theft, please record the product’s model and serial numbers in the space provided. The numbers are located in the rear of the product. Model No.: Serial No.: U.S.A. ONLY...

  • Page 3: Important Information

    “BATTERY DISPOSAL” THIS PRODUCT CONTAINS A LITHIUM PRIMARY (MANGANESS DIOXIDE) MEMORY BACK-UP BATTERY THAT MUST BE DISPOSED OF PROPERLY. PLEASE CONTACT YOUR LOCAL SHARP DEALER OR AUTHORIZED SERVICE REPRESENTATIVE FOR ASSISTANCE IN DISPOSING OF THIS BATTERY. The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 4: Dear Sharp Customer

    DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled.
  • Page 5 SAFETY PRECAUTIONS (Continued) 19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below: •...

  • Page 6: Tips And Safety Instructions

    LED backlight. This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing dealer or service center. * Please contact your local SHARP servicing dealer or service center for assistance.

  • Page 7: Mounting Precautions

    MOUNTING PRECAUTIONS • This product is for use indoors. • A mounting bracket compliant with VESA specifications is required. • Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor. • Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling. • Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward or downward. • This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside. For the monitor in landscape orientation 7-7/8 [20] 2 [5] For the monitor in portrait orientation...

  • Page 8: Table Of Contents

     Cover Sharp logo: 1 Place this sticker onto the SHARP logo to cover the logo. * Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

  • Page 9: Part Names

    When the PN-ZB01 (optional) is attached Caution • Consult your SHARP dealer for attachment/detachment of optional parts. • Do not open the expansion terminal cover by yourself. There are high voltage parts inside the cover which may cause an electric shock.
  • Page 10 Part Names nRemote control unit 1. Signal transmitter 2. POWER button (See page 15.) 3. MUTE button (See page 17.) 4. VOL +/- buttons (See page 17.) BRIGHT +/- buttons (See page 17.) Cursor control ( 5. DISPLAY button (See page 17.) 6.

  • Page 11: Connecting Peripheral Equipment

    Connecting Peripheral Equipment When the PN-ZB01 (optional) is attached Caution • Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected. •...

  • Page 12: Connection When The Pn-Zb01 (Optional) Is Attached

    Connecting Peripheral Equipment Connection when the PN-ZB01 (optional) is attached The PN-ZB01 expansion board (optional) allows the use of additional connection terminals. 6. PC/AV DVI-D input terminal • Set DVI of INPUT SELECT on the OPTION menu according to the device to be connected. •...

  • Page 13: Connecting The Power Cord

    Connecting the Power Cord Caution • Use only the power cord supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet. Cable clamp Cable clamp attachment...

  • Page 14: Preparing The Remote Control Unit

    Preparing the Remote Control Unit Installing the batteries 1. Press the cover gently and slide it in the direction of the arrow. 2. See the instructions in the compartment and put in the supplied batteries (R-6 (“AA” size) x 2) with their plus (+) and minus (-) sides oriented correctly.

  • Page 15: Turning Power On/Off

    Turning Power On/Off Caution • Turn on the monitor first before turning on the PC or playback device. Turning on the main power Main power switch Caution • The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.

  • Page 16: Disabling Power On/Off Operations

    • screen appears when the power is turned on, the internal battery may be exhausted. Please contact your local SHARP servicing dealer or service center for assistance with battery replacement. Estimated service life of the internal battery: About 5 •...

  • Page 17: Basic Operation

    1. INPUT (Input mode selection) The menu is displayed. Press mode, and press to enter. * You can select the input terminal by pressing the input switch of the monitor. Input mode Video PC D-SUB PC D-sub input terminal PC HDMI PC/AV HDMI input terminal AV HDMI PC/AV HDMI input terminal...
  • Page 18 Basic Operation nSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE ZOOM 1 ZOOM 2 NORMAL Dot by Dot TIPS • Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful.

  • Page 19: Menu Items

    Displaying the menu screen Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 20 to 24 for details of each menu items. Caution • Do not turn the main power switch off while the menu items are being displayed.

  • Page 20: Menu Item Details

    Menu Items Menu item details The menu will differ depending on the input mode. nSCREEN You can move the menu screen display position each time DISPLAY is pressed. AUTO (PC D-SUB/PC RGB) The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.
  • Page 21 USER Adjusts each item when the WHITE BALANCE is set to USER. R-CONTRAST ...Adjusts bright-toned red component. G-CONTRAST ...Adjusts bright-toned green component. B-CONTRAST ...Adjusts bright-toned blue component. R-OFFSET ...Adjusts dark-toned red component. G-OFFSET ...Adjusts dark-toned green component. B-OFFSET ...Adjusts dark-toned blue component. COPY TO USER Copies the value of white set for PRESET to the USER setting.
  • Page 22 Menu Items STANDBY MODE When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode. When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer.
  • Page 23 SCAN MODE (AV input) Sets the scan mode used for AV mode input. MODE1 ... Over-scan display MODE2 ...Under-scan display MODE3 ... Under-scan display when the input signal is 1080i/p. Otherwise, over-scan display * Even when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.

  • Page 24: Ndual Screen Display

    Menu Items nPIP/PbyP PIP MODES Sets the display method. OFF ...Displays one screen. PIP ...Displays a sub screen inside a main screen. PbyP ...Displays a main screen and a sub screen in a line. PbyP2 ...Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.
  • Page 25 nEnlarge • You can align several monitors and integrate them into a single large screen to display. • Up to five monitors can be aligned in both the horizontal and vertical directions. • Each monitor displays enlarged views of separated images. (Example) Horizontal direction: 2 monitors Vertical direction: 2 monitors...
  • Page 26 Menu Items nSCHEDULE You can set the time to switch the monitor on and off. Set this function with “SCHEDULE” in the OPTION menu. (See page 22.) SCHEDULE – –/– –/– – – – – – – POWER DAY OF THE WEEK –...

  • Page 27: Adjustments For Pc Screen Display

    nADVANCED items (AV input) (See page 20 for additional Menu item details.) FLESH TONE Adjust the hue control. 3D-NR Reduce the noise of playback images on video. Setting a higher level reduces more noise. However, it may cause blurring on an image. MPEG-NR Reduce block noise caused by digital compression.

  • Page 28: Initialization (Reset)/Functional Restriction Setting (Function)

    Initialization (Reset)/Functional Restriction Setting (FUNCTION) You can return the settings to their factory-preset values and restrict operations. SIZE 1. Hold down until “F” appears in the upper left corner of the screen. 2. While “F” appears, press order. FUNCTION ALL RESET ADJUSTMENT LOCK ADJUSTMENT LOCK TARGET RS-232C...

  • Page 29: Controlling The Monitor With A Pc (Rs-232C)

    Controlling the Monitor with a PC (RS-232C) You can control this monitor from a PC via RS-232C (COM port) on the PC. You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 30), you can make input mode selection/adjustment or can check the status of a specific monitor.
  • Page 30 Controlling the Monitor with a PC (RS-232C) nResponse code format When a command has been executed correctly Return code , 0A A response is returned after a command is executed. * If an ID number has been assigned Space (20 ID number of responding monitor When a command has not been executed Return code...
  • Page 31 nCommands for ID control The command examples shown on this page assume the following connection and ID number set up. ID number: 1 ID number: 2 IDST ... A monitor receiving this command sets its own ID number in the parameter field. Example: IDST0001 001 ←...

  • Page 32: Setting Of The Gamma User Data

    Controlling the Monitor with a PC (RS-232C) nRepeater control This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers. [Example] Set 1 Set 2...

  • Page 33: Rs-232C Command Table

    RS-232C command table How to read the command table Command: Command field (See page 29.) Direction: W When the “Parameter” is set in the parameter field (see page 29), the command functions as described under “Control/Response Contents”. R The returned value indicated under “Reply” can be obtained by setting “????”, “ (repeater control) in the parameter field (see page 29).

  • Page 34: Screen Menu

    Controlling the Monitor with a PC (RS-232C) SCREEN menu Function Command AUTO ASNC CLOCK CLCK PHASE PHSE POSITIONING POSITION OF HPOS THE LONGEST DIRECTION POSITION OF VPOS THE SHORTEST DIRECTION SIZE SIZE OF THE HSIZ LONGEST DIRECTION SIZE OF THE VSIZ SHORTEST DIRECTION...

  • Page 35: Picture Menu

    PICTURE menu Function Command Direction AUTO AGIN ANALOG GAIN ANGA ANALOG OFFSET ANOF CONTRAST CONT BLACK LEVEL BLVL TINT TINT COLORS COLR SHARPNESS SHRP RGB INPUT RANGE (AV HDMI) AHDR RGB INPUT RANGE (PC HDMI) PHDR RGB INPUT RANGE (AV DVI) ADVR RGB INPUT RANGE (PC DVI) PDVR...

  • Page 36: Audio Menu

    Controlling the Monitor with a PC (RS-232C) AUDIO menu Function Command TREBLE AUTR BASS AUBS BALANCE AUBL RESET ARST SETUP menu Function Command OSD H-POSITION OSDH OSD V-POSITION OSDV SCREEN MOTION SCSV MOTION TIME 1 MTIM MOTION TIME 2 PATTERN1 MINT PATTERN2-4 MINT...

  • Page 37: Option Menu

    OPTION menu Function Command Direction DATE/TIME SETTING DATE DATE DISPLAY FORMAT DTFT TIME DISPLAY FORMAT TMFT SCHEDULE SC01- SC08 SCHEDULE BRIGHTNESS SB01- SB08 INPUT SELECT DVSL BNSL D-SUB SLDS HDMI HDSL AUDIO SELECT PC DVI-D ASDP PC HDMI ASHP PC D-SUB ASAP PC RGB ASCP...
  • Page 38 Controlling the Monitor with a PC (RS-232C) MULTI menu Function Command ENLARGE ENLG ENLARGE MODE EMAG EMHV IMAGE POSITION (M x N) EPHV IMAGE POSITION (2 x 2) EPOS IMAGE POSITION (3 x 3) EPOS IMAGE POSITION (4 x 4) EPOS IMAGE POSITION (5 x 5) EPOS...
  • Page 39 PIP/PbyP menu Function Command Direction PIP MODES MWIN PIP SIZE MPSZ PIP POS THE LONGEST MHPS DIRECTION THE SHORTEST MVPS DIRECTION PIP POS LD+SD BATCH MPOS PIP BLEND MWBL PIP SOURCE MWIP SOUND CHANGE MWAD MAIN POS (Main screen) MWPP PbyP2 POS (Sub screen) MW2P AUTO OFF...
  • Page 40 Controlling the Monitor with a PC (RS-232C) Others Function Command SCREEN SIZE (PC) WIDE SCREEN SIZE (AV) WIDE VOLUME VOLM MUTE MUTE INFORMATION MODEL INF1 SERIAL NO SRNO BRIGHT VLMP TEMPERATURE SENSOR DSTA TEMPERATURE ACQUISITION ERRT CAUSE OF LAST STANDBY MODE STCA Commands for setting of the GAMMA user data Function...

  • Page 41: Controlling The Monitor With A Pc (Lan)

    Controlling the Monitor with a PC (LAN) When the PN-ZB01 (optional) is attached, your monitor can be connected to a LAN allowing you to control it from a PC on the LAN. You can also configure the monitor to send e-mail notification when it has a problem.
  • Page 42 Controlling the Monitor with a PC (LAN) ■ To set from a PC When the monitor is connected to a PC, LAN settings can be configured via PC. Set up process (1) Connect your monitor to a PC (2) Specify the PC’s IP address (3) Configure the monitor’s LAN settings (1) Connecting your monitor to a PC Connect a commercially available crossover LAN cable...

  • Page 43: Controlling With A Pc

    6. Click on “LAN SETUP” under NETWORK. 7. Specify the “DHCP CLIENT”, “IP ADDRESS”,etc. DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”. IP ADDRESS If the DHCP CLIENT is set to “OFF”, specify an IP address.
  • Page 44 Controlling the Monitor with a PC (LAN) ■ INFORMATION Information about this monitor appears. ■ CONTROL You can control the operations corresponding to the buttons POWER INPUT SIZE ) on the remote control unit. (See page 17.) TIPS • In standby mode, Power ON is the operation available. ■...

  • Page 45: Network (Lan Setup)

    ■ NETWORK (LAN SETUP) This screen allows you to set the settings necessary when the monitor is connected to a LAN. DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”.

  • Page 46: Network (General)

    Controlling the Monitor with a PC (LAN) ■ NETWORK (GENERAL) This screen allows you to specify the general LAN settings. MONITOR NAME Specify a name for this monitor as it should appear on the Internet Explorer screen. AUTO LOGOUT TIME Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network.

  • Page 47: Mail (Recipient)

    ■ MAIL (RECIPIENT) This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error. RECIPIENT E-MAIL ADDRESSES Specify the e-mail addresses to send error notification e-mail CONDITION Specify the conditions to send mails. When you check PERIODICAL, specify the date and time to send the mails in the PERIODICAL setting.
  • Page 48 Controlling the Monitor with a PC (LAN) ■ SNMP You can configure settings related to SNMP. SNMP SETTING Set whether to enable or disable SNMP. VERSION Set the version of the SNMP to be supported. COMMUNITY NAME 1 to 3 Set the name of the community required for the access.

  • Page 49: Troubleshooting

    “STATUS [xxxx]” appears in the corner of the screen. • Hardware has a problem. Turn off the monitor and request repair from your SHARP dealer. (When STATUS ALERT is set to OSD & LED. This varies depending on the setting.) When “AUTO DIMMING”...
  • Page 50 Internal temperature rises quickly if the vents on the monitor are blocked. - Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust.

  • Page 51: Specifications

    When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
  • Page 52 When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 53 nCompatible signal timing (PC) Screen resolution VESA 640 × 480 800 × 600 848 × 480 1024 × 768 1152 × 864 1280 × 768 1280 × 800 1280 × 960 1280 × 1024 1360 × 768 1400 × 1050 1440 ×...
  • Page 54 Specifications PC/AV DVI-D input terminal pins (DVI-D 24 pin) Function TMDS data 2- TMDS data 2+ TMDS data 2/4 shield N.C. N.C. DDC clock DDC data N.C. TMDS data 1- 10 TMDS data 1+ TMDS data 1/3 shield 12 N.C. PC D-sub input terminal pins (Mini D-sub 15 pin) Function...

  • Page 55: Mounting Precautions (For Sharp Dealers And Service Engineers)

    (For SHARP dealers and service engineers) • When installing, removing or moving the monitor, ensure that this is carried out by at least 6 people. • Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
  • Page 56 PN-E802 Mu EN12D(1)
