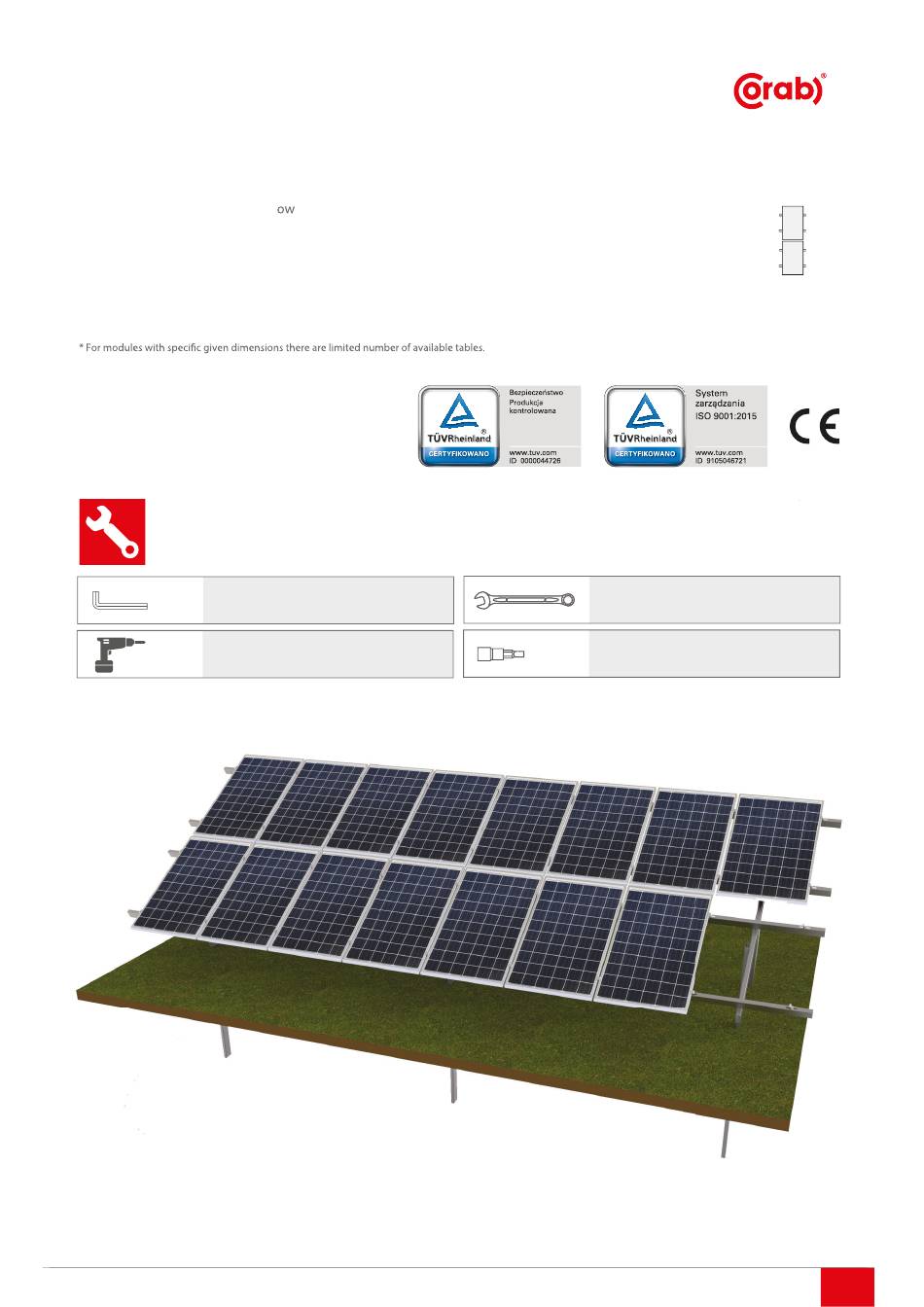

CORAB WS-026
INSTRUKCJA MONTAŻU
System wolnostojący, dwupodpor
wbijany w ziemię
2 moduły w rzędzie pionowo
Dla modułów o wymiarach długość 1980-2390 mm / szerokość 1096-1142 mm*
* Dla określonych wymiarów modułów jest wybrana ilość dostępnych stołów
System dedicated for the following module dimensions: 1980-2390 mm / width 1096-1142 mm*
Narzędzia potrzebne do montażu/Tools needed for installation:
rozmiar/size 6
wkrętarka/screwdriver
03WS026/2022/EBC
y

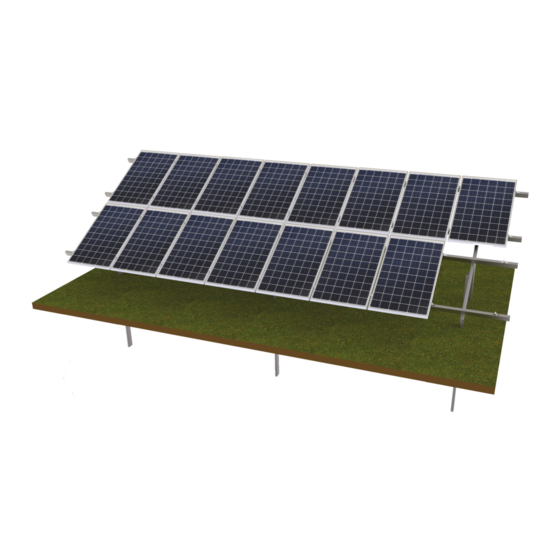

Ground mounted system, double support
rammed into the ground,
2 rows of portrait modules
rozm./size 2 x 19 mm
koncówki - bity imbusowe/
screwdriver bits
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-026 and is the answer not in the manual?

Questions and answers

Summary of Contents for CORAB WS-026

  • Page 1 CORAB WS-026 INSTRUKCJA MONTAŻU INSTALLATION MANUAL System wolnostojący, dwupodpor Ground mounted system, double support wbijany w ziemię rammed into the ground, 2 moduły w rzędzie pionowo 2 rows of portrait modules Dla modułów o wymiarach długość 1980-2390 mm / szerokość 1096-1142 mm* * Dla określonych wymiarów modułów jest wybrana ilość...
  • Page 2 Elementy/Elements Ilość modułów / Number of PV modules Indeks Nazwa 32* 30* Index Name Podkładka poszerzana M12 M1067 Washer expanded M12 Mocowanie inwertera XPF_WS004N.8.001 Inverter moun�ng set Uniwersalne stężenie z linki XPF_WS006U.6.001 Cross bracing rope Podkładka sprężysta M8 M935 Spring washer M8 Śruba imbusowa M8x20 M485 Socket screw M8x20...
  • Page 3 Montaż/Installation Wymiar X obliczyć według wzoru: X=(szerokość modułu + 20mm) x 5 / 2 Przykład dla szerokości 1120mm: X=(1120 + 20) x 5 /2 X=2850mm Dimension X calculate with the following formula: X=(module width + 20mm) x 5 / 2 Example for 1120mm width: X=(1120 + 20) x 5 /2 X=2850mm...
  • Page 4 10 12 11 10 10 12 13 Wymiar Y obliczyć według wzoru: Dimension Y calculate with the Y= (szerokosc modułu + 20mm) x 5 - 5600 following formula: 11 19 10 12 Przykład dla szerokosci 1030mm: Y= (module width + 20mm) x 5 - 5600 Y=(1030 + 20) x5 - 5600 Example for 1030mm width: Y=100mm...
  • Page 5 Moduł Moduł PV module PV module Śruba M12x40 Screw M12x40 Nakrętka M12 Nut M12 2x Podkładka M12 2x Washer M12 Podkładka sprężysta M12 Spring washer M12 Długość linki dostosowywać za pomocą zacisków skręcanych Adjust the rope length with twist clamps Śruba rzymska / Roman screw Otwory wiercić...
  • Page 6 Uwaga 2 / Note 2 XPF_WS007N.3.0000 L3550 Otwory wiercić zgodnie z uwagą 1 Drill holes according to note 1 Uwaga 1: Otwory w podporach oraz belce mocowania inwertera pod śrubę M12 wykonać Śruba M12x30 Screw M12x30 w następujących krokach: Nakrętka M12 Nut M12 1.
  • Page 7 Corab S.A. does not analyze the nie i ich prawidłowy montaż. Corab S.A. nie analizuje potrzeb needs of nal customers or the expected placement conditions of klientów ostatecznych oraz przewidywanych warunków umiejsco-...
  • Page 8 The use of other spare parts may lead to serious damage to property or Stosowanie innych części zamiennych może prowadzić do poważ- hazards to health of people in the vicinity of the PV system! The Corab® nych szkód w mieniu lub zagrożenia dla zdrowia osób przebywają- system forms a uniform and consistent set of elements.
